4
POWER
AC INLET
POWER LED
SPEAKER (¼”) OUTPUT
LINE (¼”) OUTPUT
AUX (¼”) OUTPUT
TONE CONTROLS
When all three controls
are set to the 12 o’clock
(detent) position, the
output frequency
response is flat.
HIGH +/- 12dB peak/dip at 16 kHz.
MID +/- 12dB peak/dip at 2 kHz,
LOW +/- 15dB peak/dip at 100 Hz
LIMIT LED
Indicates when the built-in compression circuit is activated. By
automatically reducing gain when clipping occurs the compres-
sion circuit
prevents distortion. The LIMIT LED remains lit about
half the time when the amplifier is being driven to its maximum
potential. Do not allow it to remain lit more than half the time.
AUX RETURN LEVEL
AUX (¼”) INPUT
MASTER LEVEL
CHANNEL 2 AUX SEND
CHANNEL 2 LEVEL
CHANNEL 2 MIC (XLR) INPUT
CHANNEL 1 AUX SEND
CHANNEL 3 AUX SEND
CHANNEL 1 LEVEL
CHANNEL 3 LEVEL
CHANNEL 1 MIC (XLR) INPUT
CHANNEL 3 MIC (XLR) INPUT
LEVEL CONTROLS FOR CHANNELS 1, 2, 3 AND AUX RETURN
SmartALIC (All Level Input Control) compensates for the
difference in gain and level between line and mic
signals. LINE LEVEL (7 o’clock to 12 o’clock)
for tape decks, CD players. etc.. MIC
LEVEL (12 o’clock to 5 o’clock) for
mics and instruments.
CHANNEL 4 LEVEL
CHANNEL 4
AUX SEND
CHANNEL 4 (¼”) LINE INPUT
CHANNEL 1, 2, 3 MIC (XLR) INPUTS
+24VDC phantom power for balanced
input from an XLR connector.
CHANNEL 4
CD/TAPE (RCA) INPUT

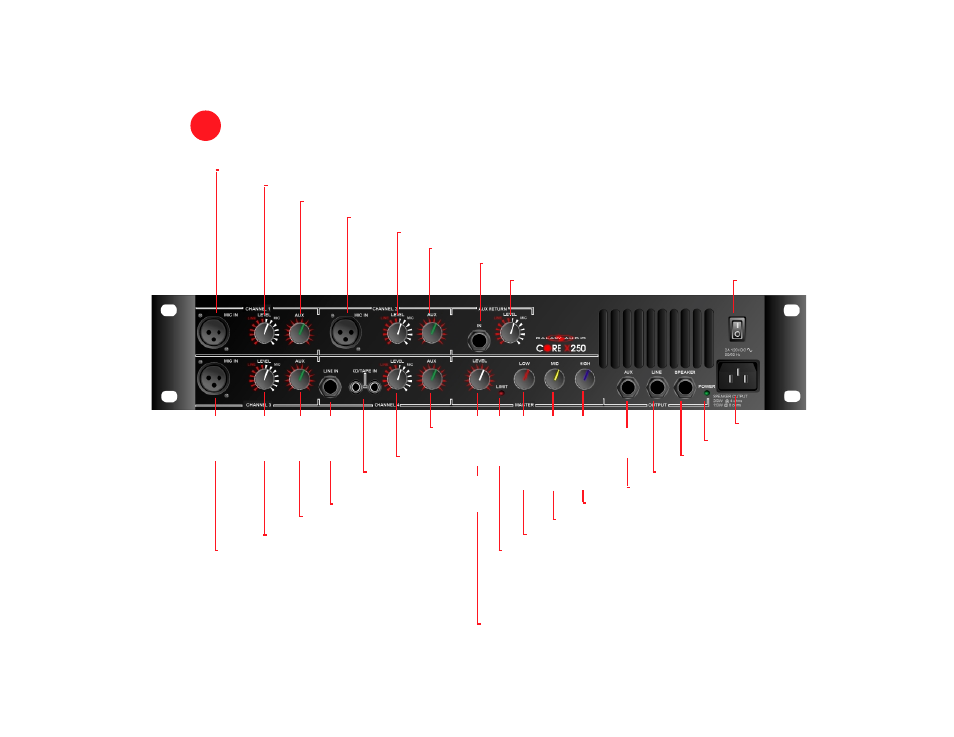

® C O RE X 250
FRONT P FRONT P FRONT P FRONT P FRONT PANEL ANEL ANEL ANEL ANEL
