M
OUNTING THE
M
AGNET AND
S
ENSOR
52

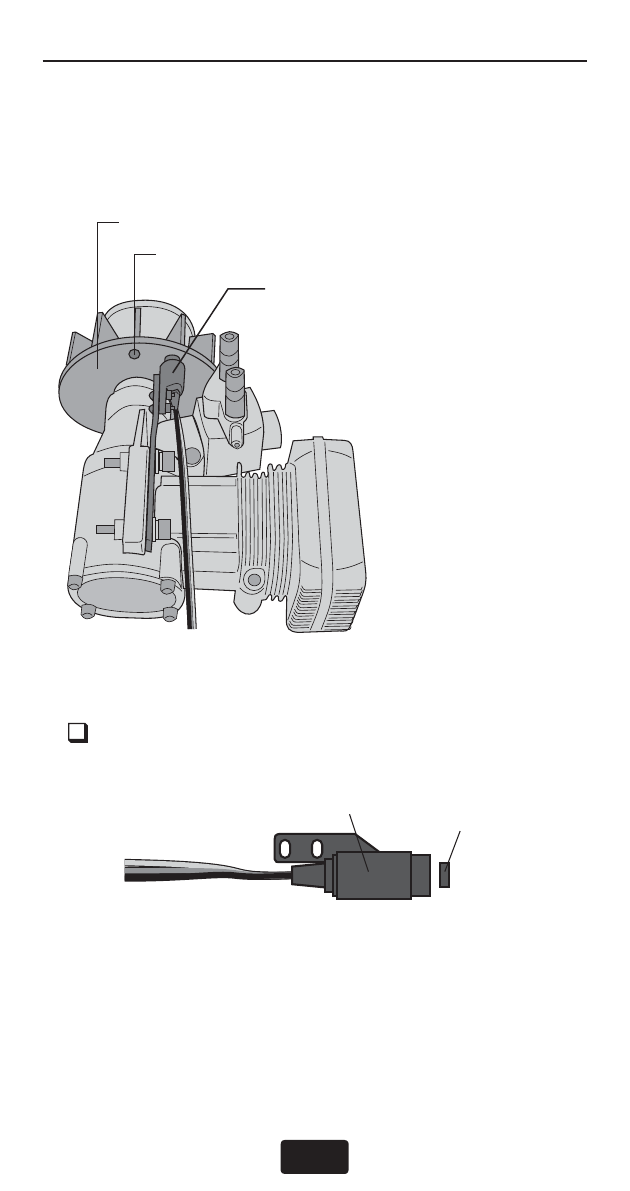

Modify the cooling fan and install the accessory
magnet and attach the magnetic sensor to the en-
gine at the position shown below.
Cooling fan
Magnet (Embedded in cooling fan.)
Sensor (Attached to engine flange
through a stay.)
When installing the sensor mag-
net to the muffler side, also refer
to the needle side mounting.
Magnet operating side check
Bring the magnet near the end of the sensor
and check the operating side.
Magnet
Sensor
This is the side at which the displayed value
increases in the “Revolution sensor testing”
menu within the “Governor Basic Setting”
section earlier in this manual. Install the mag-
net with this side facing the sensor. Mark this
side of the magnet with a felt tip pen.
