Futaba GY611 User Manual

Page 33

NSTALLATION AND

DJUSTMENT

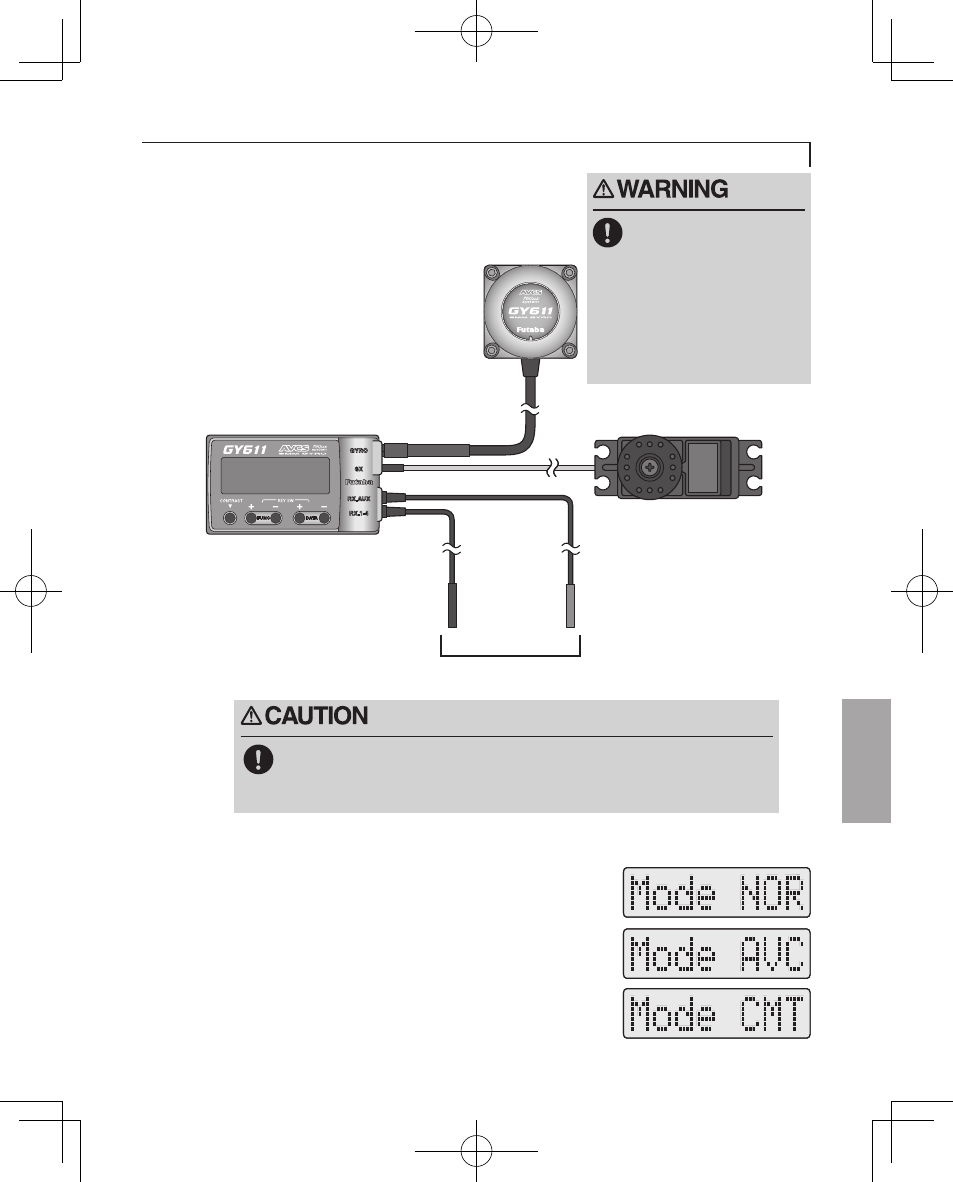

Connections

Connect the GY611, receiver

and servo as shown below.

Insert the con-

nectors fully and

ﬁrmly.

· If a connector works loose

due to vibration during

ﬂight, control may be lost

and result in a dangerous

situation.

· Connect the sensor to the

amp sensor input ("GYRO").

· Connect the rudder servo

to the amp servo output

("SX").

· Connect the amp rudder

input ("RX,1-4") input con-

nector to the receiver rud-

der channel.

Black

Red

· Connect the amp remote

gain input ("RX,AUX") con-

nector to the receiver sen-

sitivity setting channel.

To receiver

Gyro operation mode selection

When using the gyro only in the NOR mode,

select NOR. When using the gyro only in the

AVCS mode, select AVCS. When using the

gyro in both the AVCS and NOR modes, select

CMT.

(S9256 only)

Always use the special S9256 servo with the GY611.

·The GY611 cannot operate with servos other than the super

narrow pulse (760μs) servo. The servo may be destroyed.
