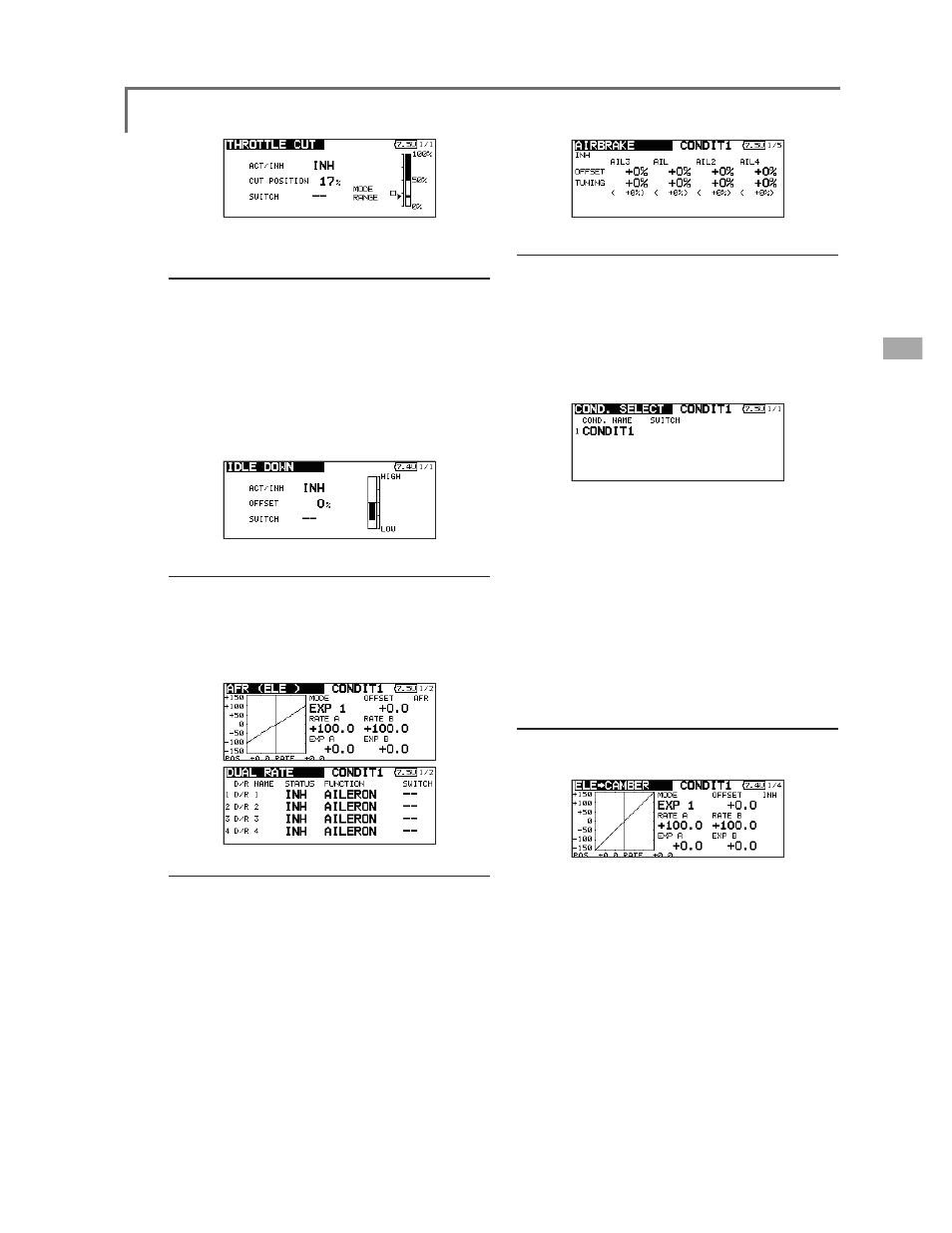

5. Idle down setting

The idling speed can be lowered with one touch by

a switch without changing the throttle trim position.
Perform this setting with the Idle Down function of the
Linkage Menu. After activating the Idle Down function
and selecting the switch, adjust the idle down speed.
For safety, the idle down function acts only when the
throttle stick is slow side.

*While the Throttle Cut function is in operation, the Idle

Down function does not work.

6. AFR (D/R)

AFR function is used to adjust the throw and

operation curve of the stick, lever, and switch functions
&+WR&+DQG9WR9IRUHDFKÀLJKWFRQGLWLRQ
7KLVLVQRUPDOO\XVHGDIWHU(QG3RLQWKDVGH¿QHGWKH
maximum throw directions.

7. Airbrake

This function is used when an air brake is necessary

when taking off or diving, etc.

The preset elevators and flaps (camber flap, brake

ÀDSRIIVHWDPRXQWFDQEHDFWLYDWHGE\DVZLWFK

7KHRIIVHWDPRXQWRIWKHDLOHURQHOHYDWRUDQGÀDS

servos can be adjusted as needed. Also the speed of the
DLOHURQHOHYDWRUDQGÀDSVHUYRVFDQEHDGMXVWHG,1
side/OUT side) A delay can be set for each condition,
and a Cut switch which will turn OFF the delay can be
chosen. Trim amounts can be fine-tuned by setting a
VR. You can also set the Auto Mode, which will link
Airbrake to a stick, switch, or dial. A separate stick
VZLWFKRUGLDOFDQDOVREHVHWDVWKH212))VZLWFK

$GGLWLRQRIÀLJKWFRQGLWLRQV

The Condition Select function automatically allocates

WKH&RQGLWLRQ&21',7IRUHDFKPRGHO&RQGLWLRQ
is the default condition and is the only one active when a
QHZPRGHOW\SHLVGH¿QHG

,I\RXZDQWWRDGGÀLJKWFRQGLWLRQVSOHDVHUHIHU

WRDGHVFULSWLRQRIWKH&21'6(/(&7IXQFWLRQ
p.72.

*The Condition 1 is always on, and remains on until other

conditions are activated by switches.

*When a new condition is added, the model data of the

Condition 1 is automatically copied to the new condition.

state. However, if the group mode (GROUP) was selected in
advance, the same data will be input at all the conditions. Select the
VLQJOHPRGH6,1*/(DQGDGMXVWRQO\WKHFRQGLWLRQ\RXZDQWWR
change. For Group/Single mode switching, refer to the description
at the back of this manual.

*The Condition Delay can be programmed for each channel. The

Condition Delay is used to change the servo throw smoothly
when switching conditions.

9. When tailless wing model selected

Tailless wing elevator operation uses elevator to camber

mixing. This function cannot be performed at initial setting.
