124

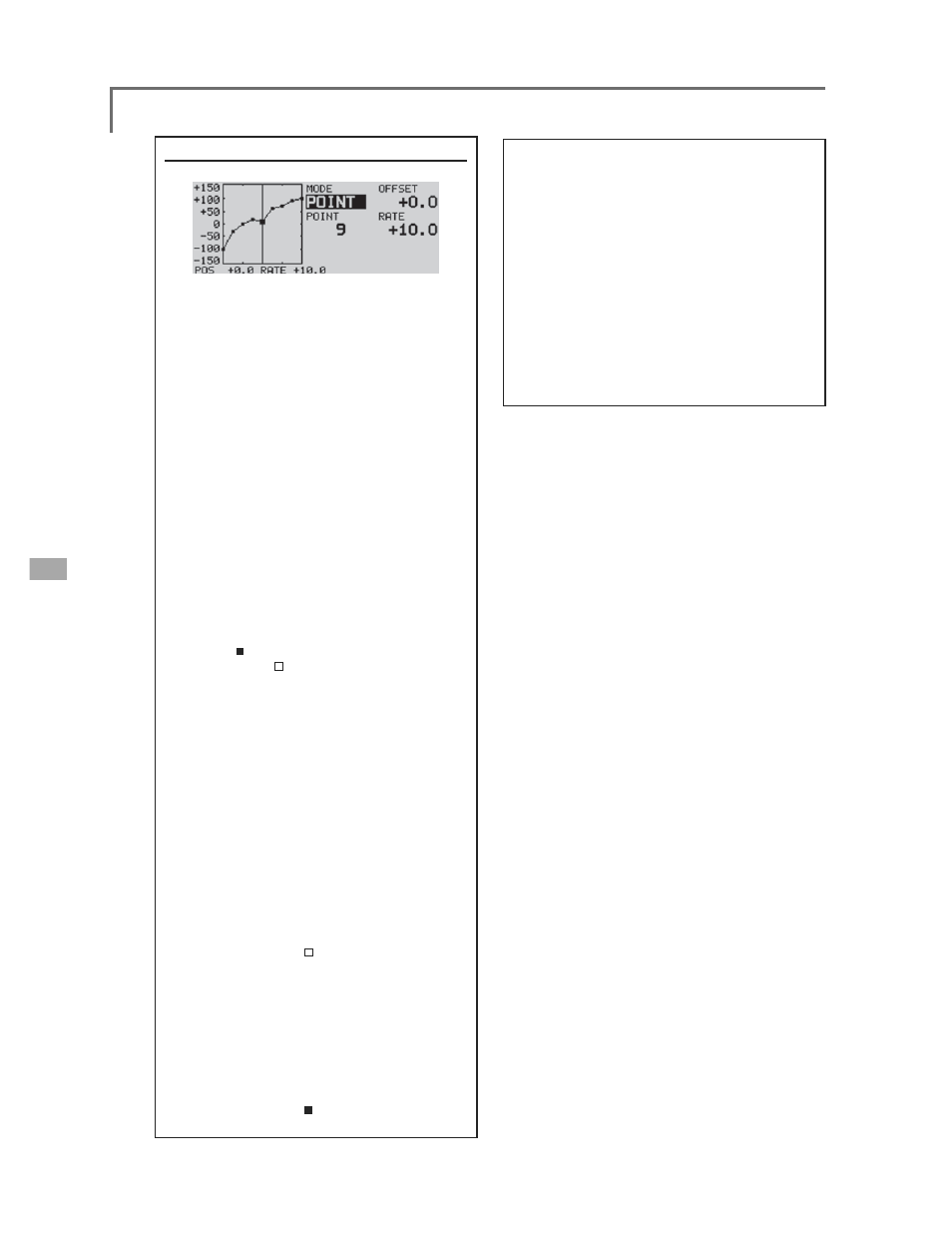

Point curve (POINT) adjustment
(Point)
Up to 11 or 17 points curve can be used.
(differs with functuion)
Initial point number: 9 points (17 points
curve), 11 points (11 points curve)
*The set points can be freely increased, decreased, and
offset.
[Rate adjustment of each point]
1. Use the EDIT dial to move the cursor
(reverse-display) to the [POINT] or [RATE]
item and push the EDIT button to switch to
the curve setting mode.
*It is changed from the reverse-display to the square box
display.
*In this mode, push the EDIT button to switch the [POINT]
item and [RATE] item alternately.
2. Move the cursor (square box) to the
[POINT] item by pushing the EDIT button.
3. Turn the EDIT dial to the left or right and
select the point whose rate you want to
set.
*The mark on the curve shows the currently selected
point. The mark on the curve shows the currently
deleted point.
4. Move the cursor (square box) to the [RATE]
item by pushing the EDIT button and set
the rate by turning the EDIT dial to the left
or right.
Repeat steps 2 through 5 and adjust the
curve.
Push the S1 button to end adjustment and
return to the cursor move mode.
[Point addition]
1. In the curve setting mode, push the EDIT
button to move the cursor to the [POINT]
item and turn the EDIT dial to the left or
right and move the cursor on the curve to
the position (mark ) you want to add.
2. When the EDIT button is pushed for 1
second, the point is added.
[Point deletion]
1. In the curve setting mode, push the EDIT
button to move the cursor to the [POINT]
item and turn the EDIT dial to the left or
right and move the cursor on the curve to
the position (mark ) you want to delete.
2. When the EDIT button is pushed for 1
second, the point is deleted.
[Offsetting the curve horizontally in the vertical
direction]
1. Use the EDIT dial to move the cursor
(reverse-video) to the [OFFSET] item.
2. Move the curve in the vertical direction by
turning the EDIT dial to the left or right.
Initial value: +0.0%
(When the EDIT button is pushed for 1 second, the curve is
reset to the initial value.)
Push the EDIT button to end adjustment
and return to the cursol move mode.
