Flyzone FLZA3604 - Manual (Page 6)

6

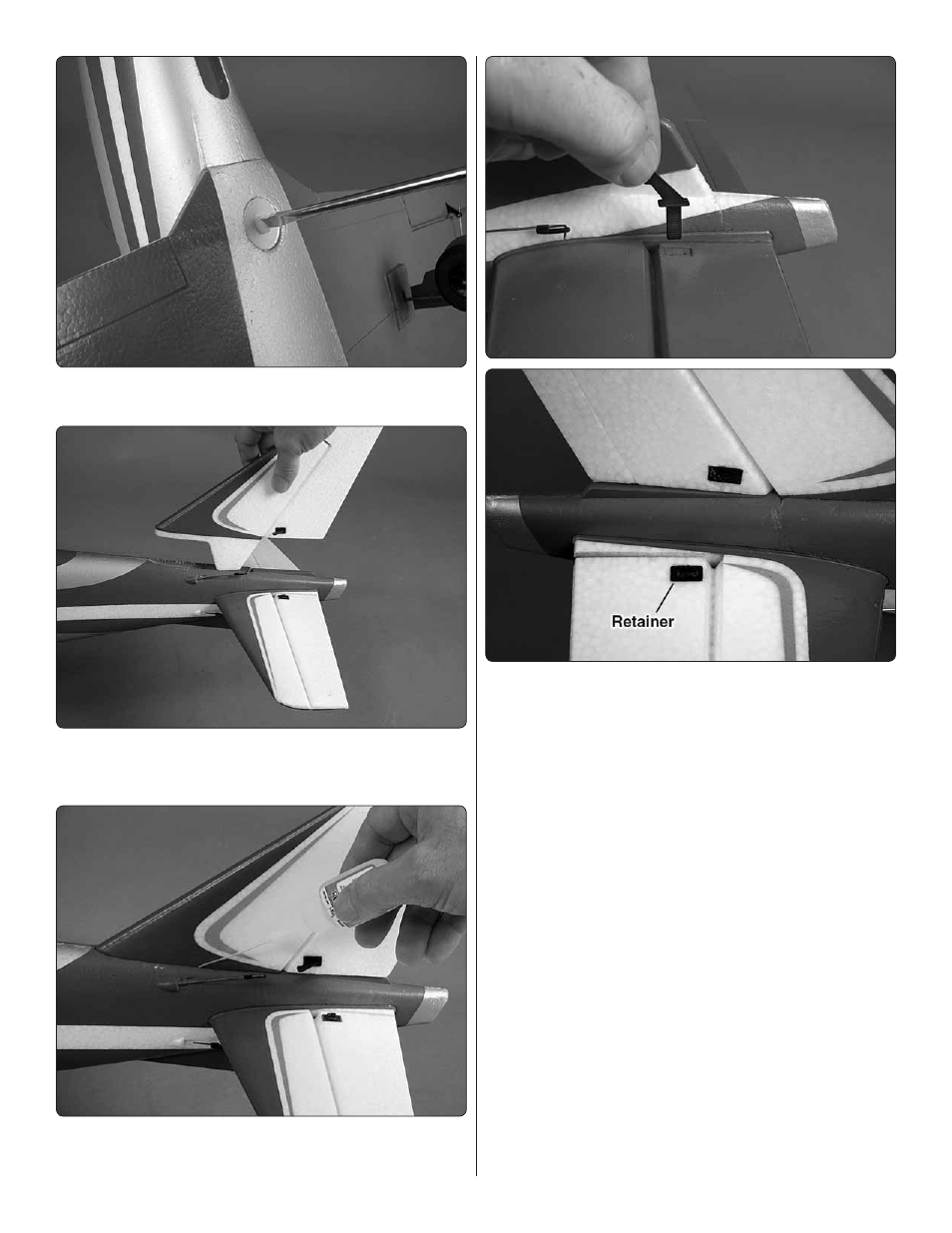

Tighten the bolt fi nger tight, then use a screw driver to turn it
an additional half-turn.
❏
5. Slide the horizontal stabilizer (stab) into the fuselage, then
key in the vertical stabilizer (fi n). The fi n self-aligns, but view
the stab from above to make sure it is centered and aligned too.
❏
6. Apply medium or thin CA all the way around the stab
and fi n to glue them to the fuselage.
❏
7. Mount the control horn to the right elevator with the
retainer on the other side. Cut off the excess part of the horn
that protrudes through the retainer, then add a few drops of CA.
