8
❏

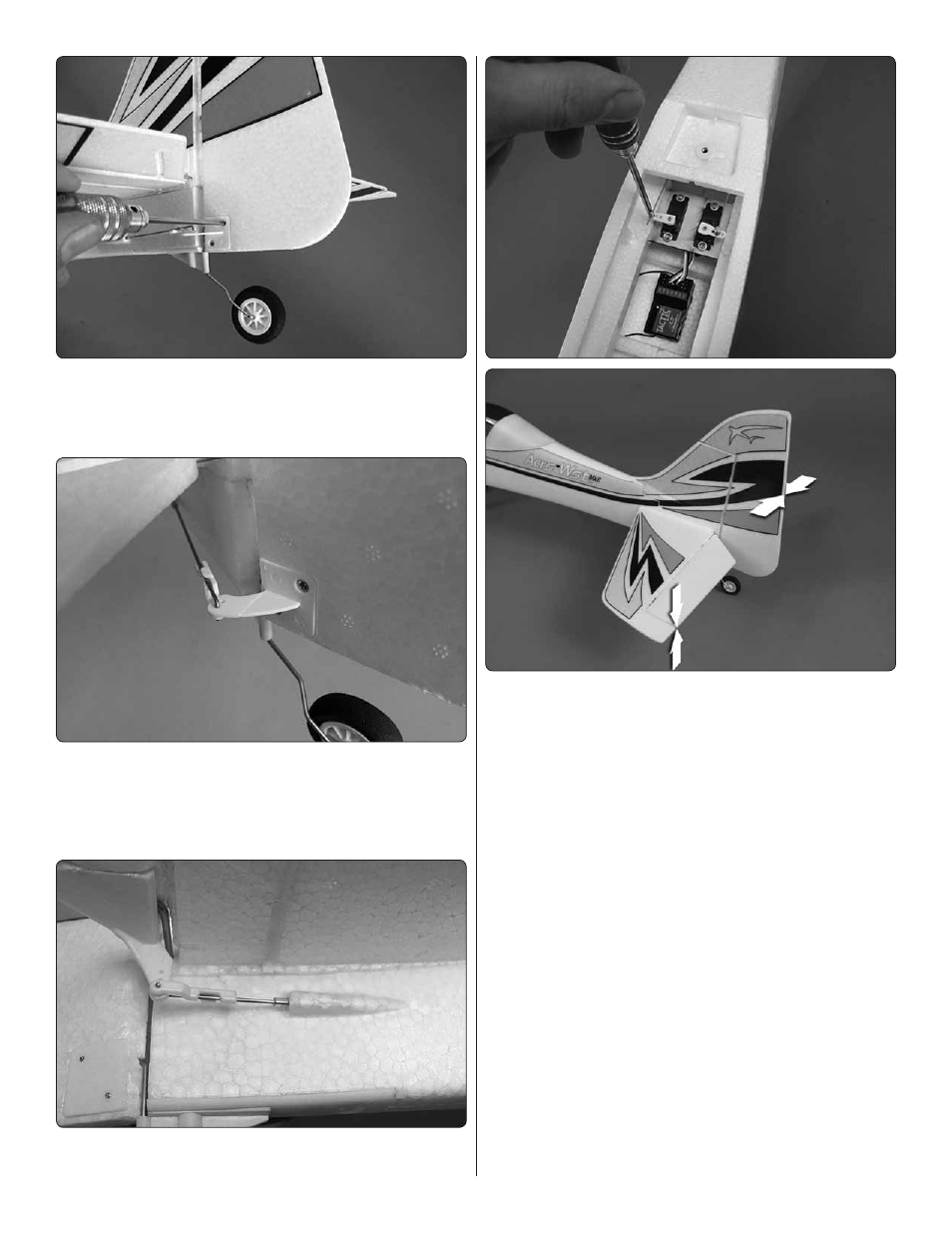

6. Install the rudder control horn onto the rudder using
two 2x8mm self-tapping screws and the rudder control horn
backplate. Note that the control horn captures the tail wheel
tiller wire in the rudder.
❏
7. Remove the 90 degree pushrod connector from the rudder
pushrod. Fit the 90 degree bend in the rudder pushrod wire
into the outer hole of the rudder control horn. Reattach the
90 degree pushrod connector, making sure the connector is
properly snapped into place.
❏
8. Install the elevator pushrod in the outer hole of the elevator
control horn in the same manner as you did the rudder pushrod.
❏
9. Loosen the screws in the elevator and rudder servo arms.
Temporarily power the receiver by turning on your transmitter (if
you are using the AnyLink adapter, refer to the AnyLink manual
for additional instructions) and connecting the fl ight battery
to the ESC in the battery compartment. Center the elevators
and rudder (also be sure your trim dials on the transmitter are
centered). Tighten the screws in the servo arms with thread
locking compound.
