10
FULL
THROTTLE
RUDDER
MOVES
RIGHT
ELEVATOR
MOVES DOWN
RIGHT AILERON MOVES UP
LEFT AILERON
MOVES DOWN

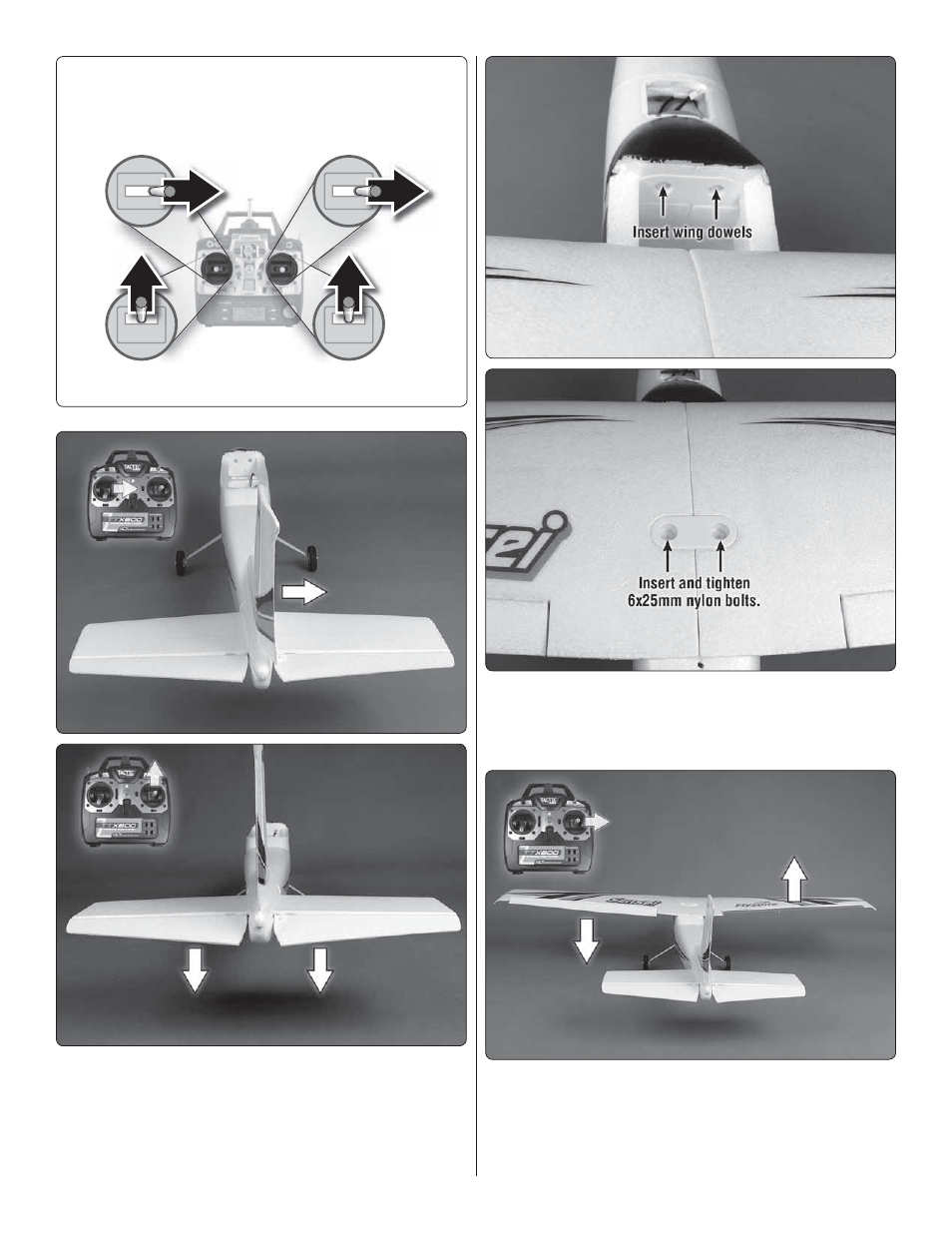

4-Channel Radio Set Up (Standard Mode 2)
❏
8. Move the rudder and elevator sticks on the transmitter
making sure the controls respond in the correct direction.
Moving the rudder stick to the right, the rudder moves to the
right. Moving the elevator stick up, the elevator moves down.
❏
9. Connect the aileron servo wires to the Y-harness from
the receiver. Insert the two dowels in the leading edge of the
wing into the two holes in the front of the wing saddle. Secure
the wing to the fuselage with two 6x25mm nylon bolts.
❏
10. Move the aileron stick to the right. The right aileron will
move up and the left aileron will move down.
If any of the control surfaces move in the wrong direction, use
the servo reversing switches on the transmitter to change the
direction.
