When Dry Cutting:
•
Drain and flush any water or debris in the tray and
dispose of properly.

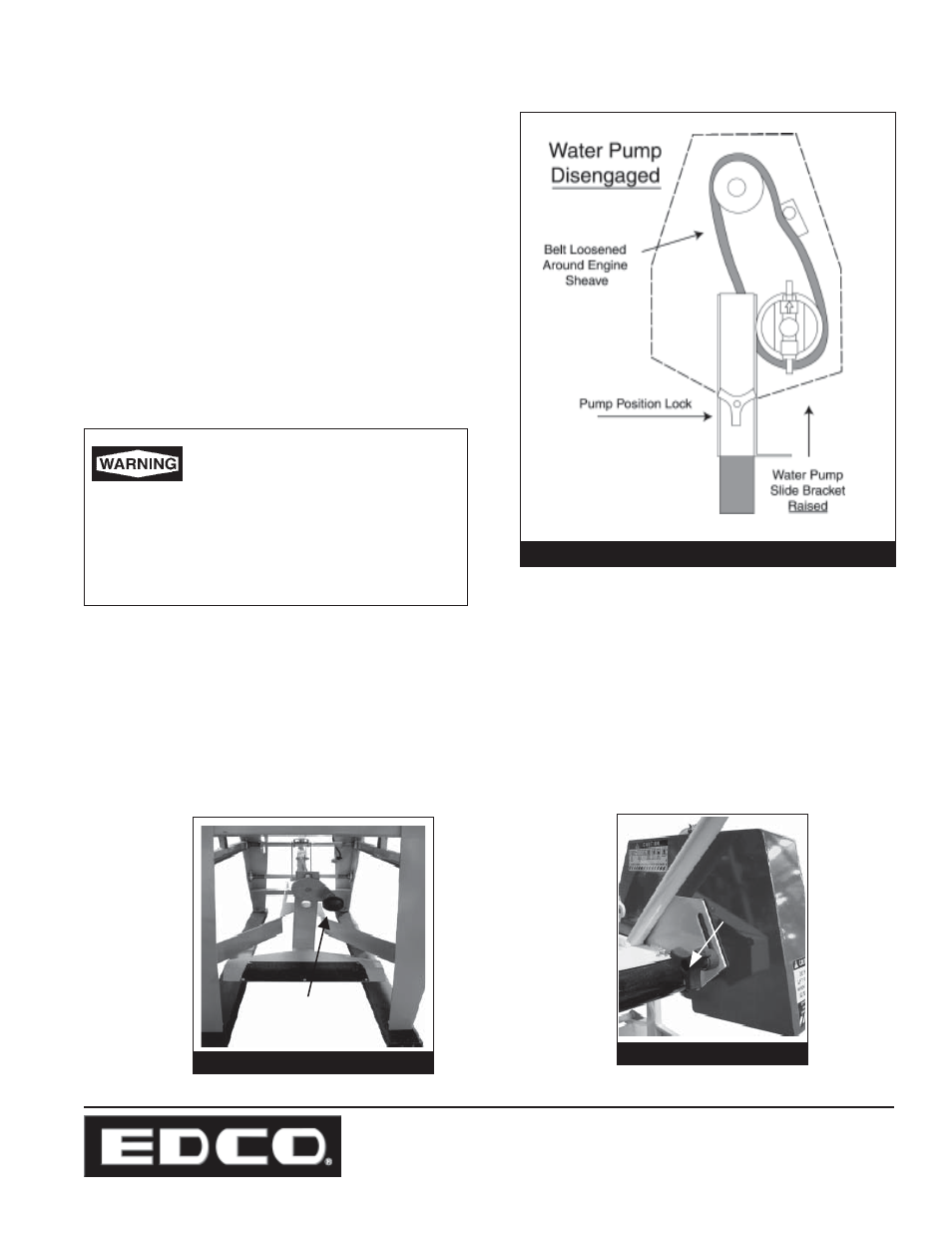

On Gasoline models:
•
Disengage water pump by loosening the pump position
lock. (Figure 12)
•
Raise the water pump slide bracket to loosen belt
around the sheave. Loosen only enough to disengage
the unit, do not allow belt to slip off sheave.
•
Retighten the pump position lock.
On Electric Models:
•
Unplug the submersible pump from the motor.
Be careful when draining water
from tray and dispose of waste
away from work area.
Draining the water directly to the ground will
cause a potentially serious working hazard includ-
ing, but not limited to, risk from electric shock if
using an electric motor.
Pre-Set the Cut:
•
When making a series of cuts at the same depth, set the cutting blade to the required depth by adjusting the
cutting head positioner. The cutting head will stay at the depth selected. (Figure 13)
•
Use the blade lock to prevent changes in the depth setting caused by vibration.
Figure 12
Figure 13
Cutting Height
Adjustment Lock
Figure 14
Blade
Cover
Lock
Knob
