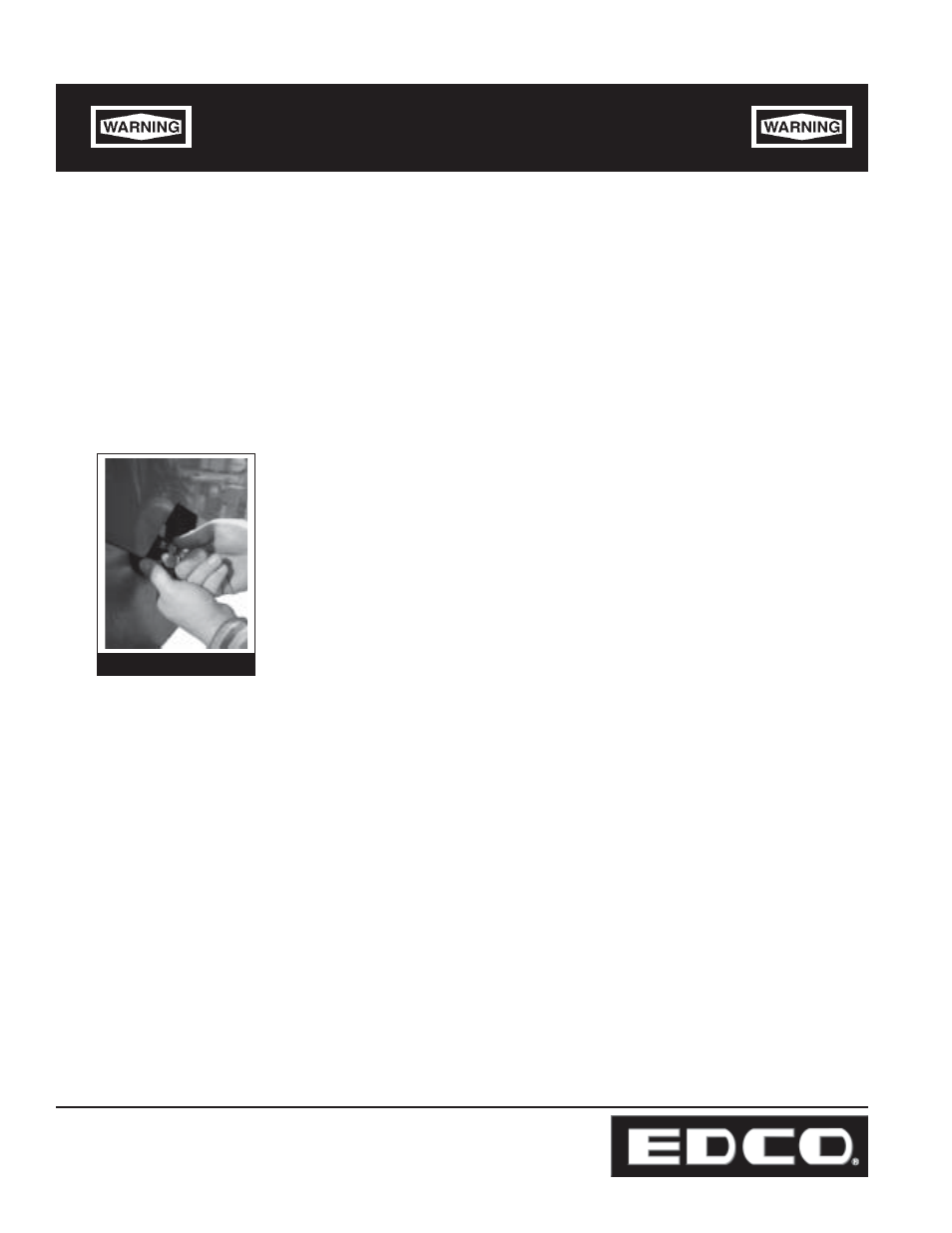

Disconnect spark plug lead before performing
any maintenance on this machine.
Changing the Blade:
• Inspect the new blade thoroughly before installing. Check for cracks, loose or missing segments, worn or out-of-
round arbor holes. Refer to the Rx for Diamond Blades pamphlet provided with your blade for more detailed informa-
tion on inspecting blades. Be sure the blade is appropriate for the job and matches the arbor speed and mounting
configuration on this saw. (Figure 17)
• Push the rolling table all the way to the back of the machine.
• Blade guard should be rotated all the way up and tightened into place.
• Remove blade cap and bolt. Carefully remove old blade.
• Inspect arbor shaft, backing plate and blade guard while blade is off.
Clean if dirty or replace if damaged or worn.
• Look for “direction of rotation” markings on the blade. (Usually an arrow
stamped on the blade.)
• Place new blade on the arbor shaft verifying that once installed the
markings on the blade follow the proper direction of rotation.
• Reinstall and tighten bolt using a SAE 1/2” wrench. Reinstall blade cap.
• Reposition blade guard and tighten. Reconnect spark plug lead. (if applicable)
Maintenance
Consult the Engine Manufacturer’s Owner’s Manual for more detailed engine maintenance instructions.
Figure 18
