ATTACHING A VACUUM / SERVICING HEAD ASSEMBLY
PROCEDURE FOR ATTACHING A VACUUM:

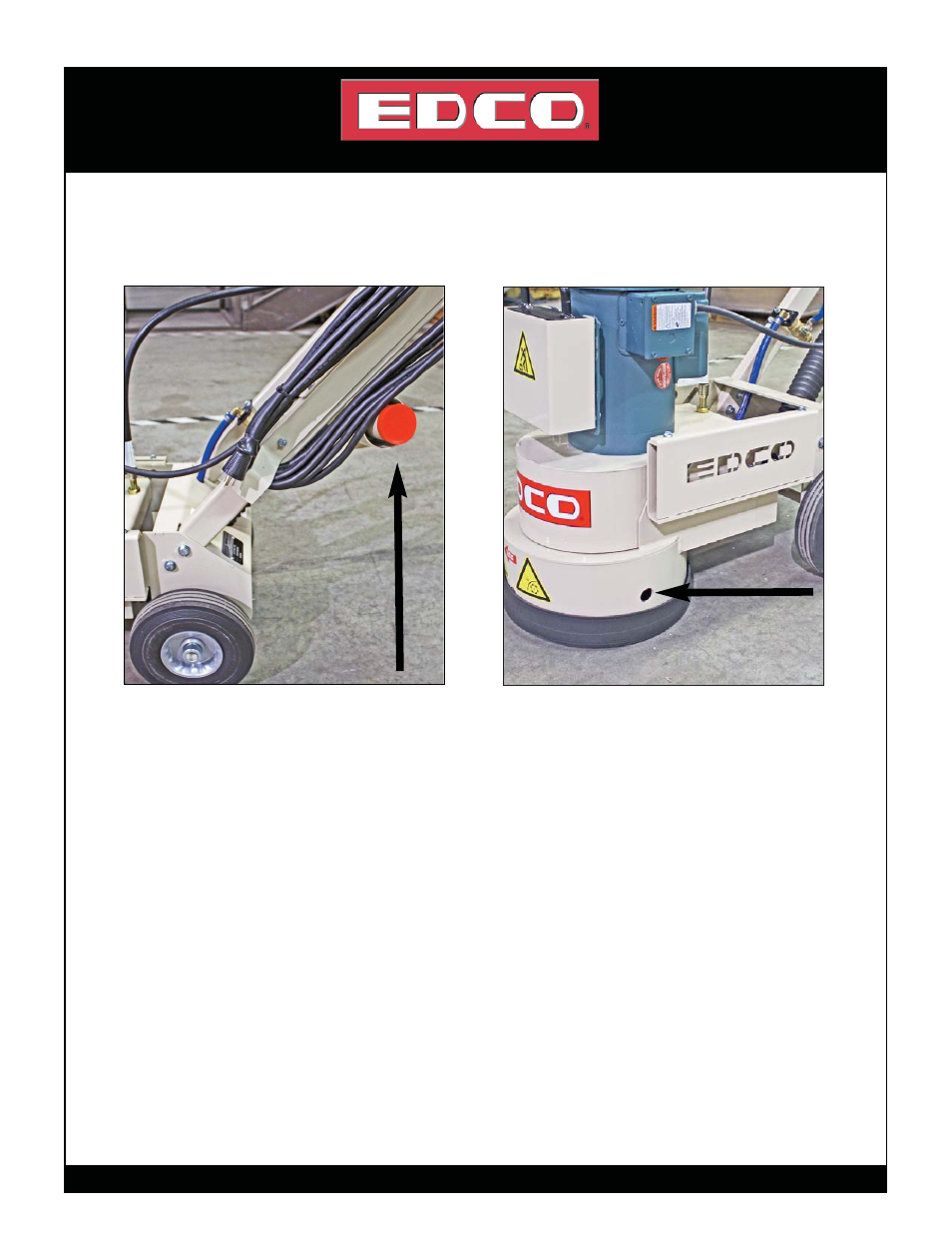

If using a vacuum for dust control attach it to
the vacuum port at the rear of the machine
which is on the handle as pictured above, se-
curing it with clamps. The port is shown in the
above photo.
SERVICING HEAD ASSEMBLY:
Access opening to remove roll pin. Align drive
pin with opening by manually turning head.
Use a hammer and a drift pin of suitable size
to drive roll pin through and out. With roll
pin out head will drop out of machine for
servicing.
