EQUIPMENT DEVELOPMENT COMPANY
OPERATING INSTRUCTIONS
• Read and understand all operating instructions before operating this equipment.
Death or serious injury can result if this machine is used improperly.
• Concrete grinders are designed to be used to grind flat horizontal concrete slabs using
EDCO approved accessories.
• The machines are equipped with electric motors.
• They are designed to be controlled by a single operator from a position at the rear of the machine.
• When operating equipment maintain a safe distance from other personnel in the area.
BE SURE TO READ THE COMPLETE INSTRUCTIONS SUPPLIED WITH YOUR MACHINE
IMPORTANT: Perform Pre-Start Check
• Visually inspect the equipment for wear or damage.
• Be sure all guards are in place and functioning properly.
Do not operate unless all guards are in place and secure.
• Perform all daily maintenance.
• Check to be sure water tubes are functioning properly if performing wet-grinding operations.
• Inspect accessories - Be sure the correct accessory is installed properly on the machine,
mounting arrangement and its intended use.
• Check accessories for damage (see figure 6, below), the type of wear or damage will vary
with the type if accessory.
• Inspect work area to determine the presence and location of deck inserts, pipes, columns and objects
protruding from the slab surface so that they may be avoided during the grinding operation.
• FOR WET GRINDING: Attach the water supply. A flow rate of approximately
1/2 gallon per minute is recommended.

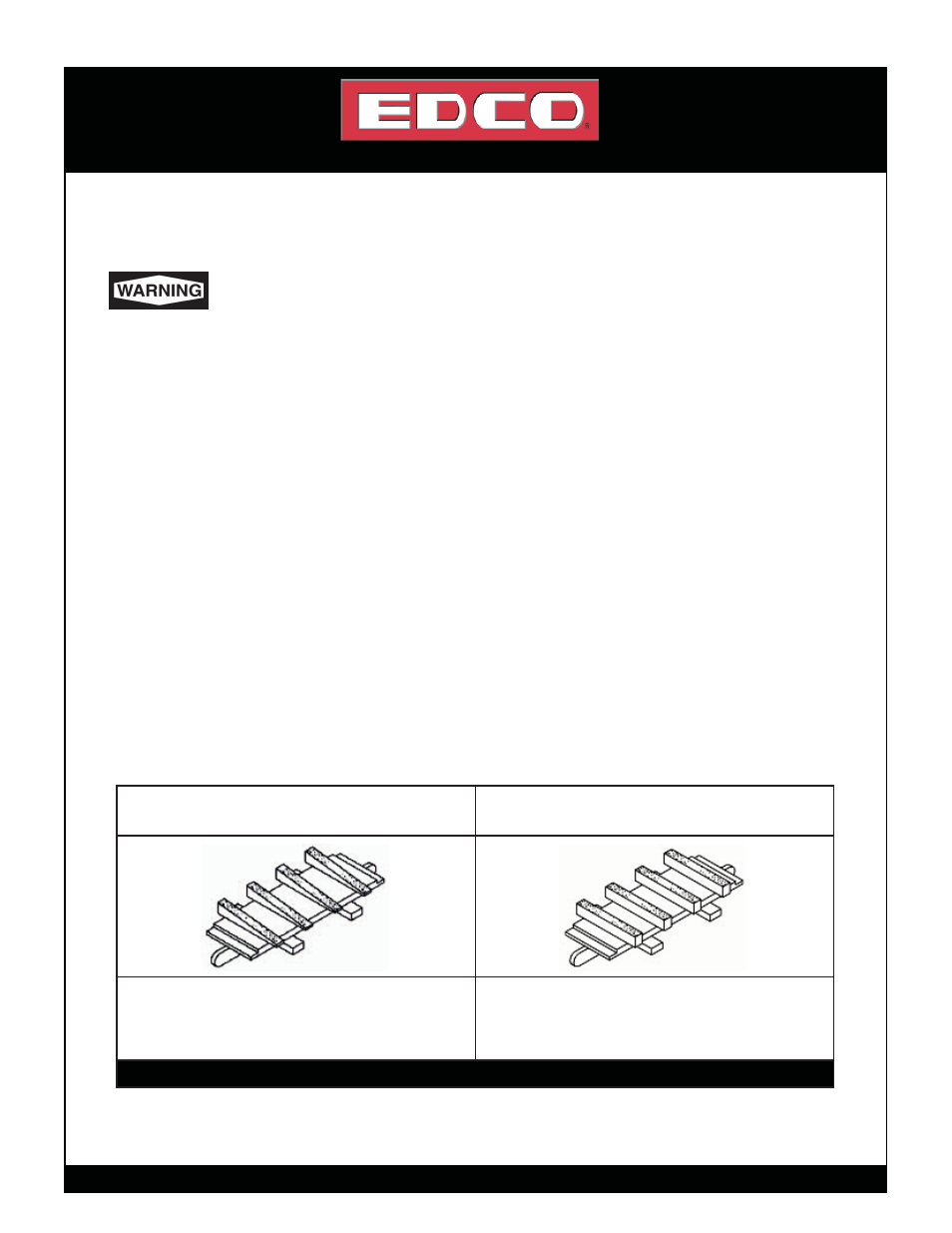

EXAMPLE OF SEVERLY
WORN DYMA-SERT
EXAMPLE OF AN EVENLY
WORN DYMA-SERT
The above is an example of a DYMA-SERT that has
not been rotated after every four hours of use. To
get maximum life out of a DYMA-SERT they
should be rotated 180º every four hours of use. The above is an example of a DYMA-SERT that has
been rotated after every four hours of use, as you
can see the wear is even across all segments.
Figure 6
