PROCEDURE FOR ADJUSTING OR REPLACING DRIVE BELT
NOTE: The following applies to all machines. They all adjust in
the same manner.
To adjust the drive belt loosen four (4) cap screws securing the
motor mount to the frame.
Slide the motor mount to the rear of the machine to increase belt
tension.
Tighten the four (4) cap screws loosened earlier maintaining
pressure on the motor mount to prevent loosening.
To replace the belt, remove the hood by removing two (2) cap
screws, one on each side of the machine.
Loosen the four (4) cap screws as in the fi rst step and slide the
motor mount all the way forward.

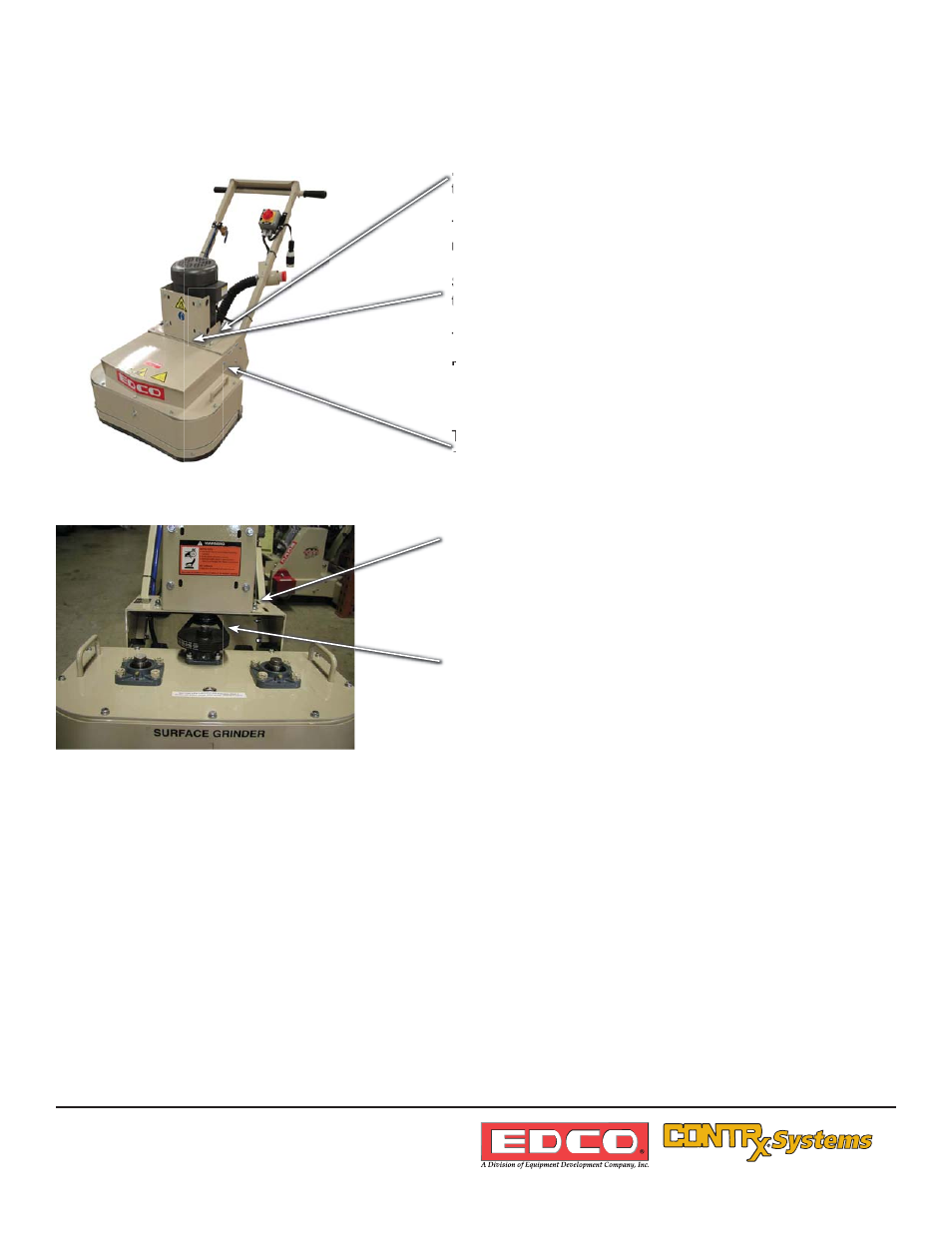

Remove the belt from the motor and pinion shaft sheaves as
shown in the photo on the left.
Reverse the previous step to install new belt. Slide motor mount
towards the rear of the machine and adjust belt tension, tighten
all four (4) cap screws as explained above. Replace hood and
tighten bolts.
New belts should be retensioned after grinder has been used for
4 hours.
