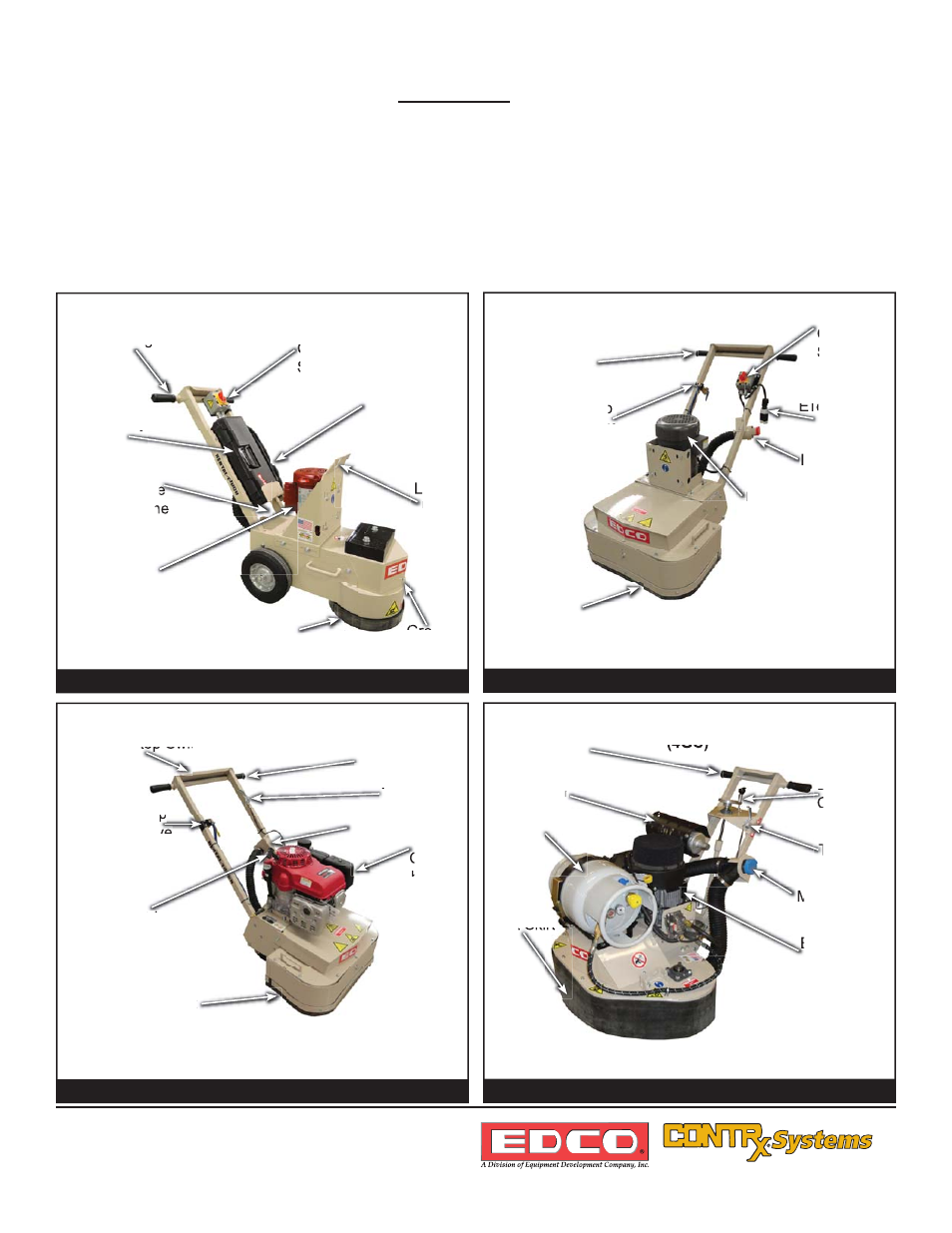

Operating Controls
Please Note:
Controls shown are for the model indicated.
The location of these controls may vary on the
different models.
Due to improvements and changes in the
equipment, the illustration shown may vary
from the actual machine.
Figure 2
Electric Powered
(SEC)
Electric Motor
Power
On/Off
Switch
Accessory
Box
Vibration
Dampening
Handles
Dust Skirt
Water Hook-up
and on/off valve
back of machine
Multi-Vac
Port
Lifting
Bail
Grease
point
Figure 3
Electric Powered
(2EC)
Electric Motor
Power
On/Off
Switch
E l e c t r i c a l
Plug
Vibration
Dampening
Handles
Dust Skirt
Water Hook-up
and on/off valve
Multi-Vac
Port
Figure 5
Propane Powered
(4GC)
Throttle
Depth
Control
Vibration
Dampening
Handles
Dust Skirt
Muffl er
Electric
Starter
Propane
Tank
NOTE: Operating controls are the same for the gasoline
and propane models.
Multi-Vac
Port
Figure 4
Gasoline Powered
(2GC)
Dust Skirt
Engine Stop Switch
Cushioned
hand grips
Choke
Control
hidden
Throttle
Recoil
Starter Grip
NOTE: Operating controls are the same for the gasoline
and propane models.
Water Hook-up
and on/off valve Multi-Vac
Port
