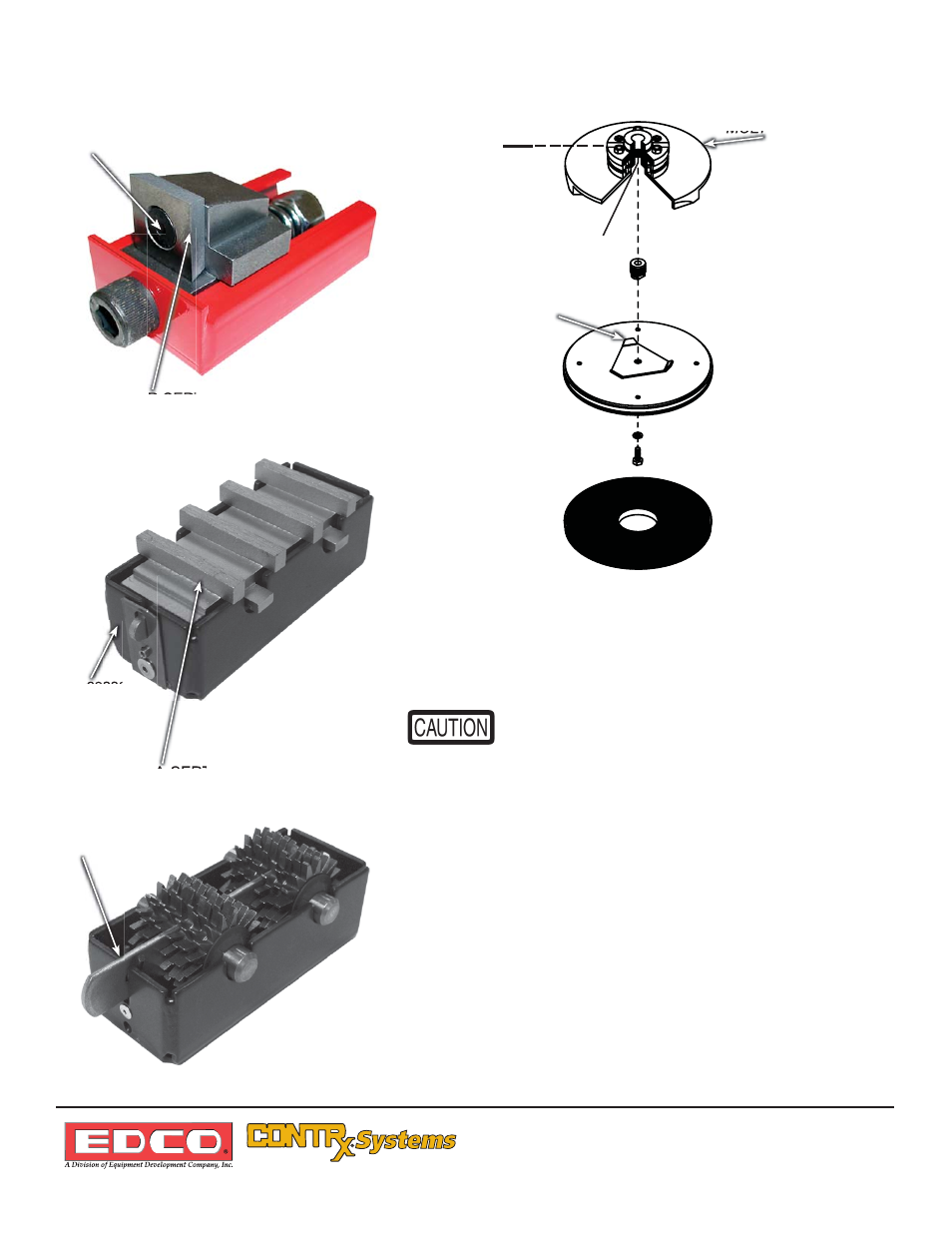

This is a STRIP-SERT, rotate this blade to expose
a new cutting surface. There are four (4) cutting
surfaces on each blade.
This is a DYMA-SERT, rotate the DYMA-SERT
only, not the case.
This is a Scarifi er and does not require rota-
tion.
THREE TYPES OF
ACCESSORIES
Accessory
case
Exploded view of Silabide Pad assembly.
SILABIDE PAD INSTALLATION
Installing Silabide Pads:
Install Hub Stud - one in each
threaded hub, this is a permanent installation and the stud need not
be removed when using the surfacer as a grinder or scarafi er.
Be sure that the end of the stud, when fully threaded
into hub, does not project past web of multi-disc as-
sembly. Your surfacer is now ready to receive the PAD
DRIVER DISC anytime the need arises.
To install Pad Driver Disc:
Position PAD DRIVER DISC
against the web of the multi-disc, be sure “non-spin-tabs” are in place
(see illustration) in the center casting web to prevent disc from turning
loose. Be sure Pad Driver Disc is positioned fl at against the casting.
Insert capscrew with fl at washer through hole in Pad Driver Disc and
thread into Hub Stud. Tighten securly. Follow these instructions for
each disc assembly (refer to fi gure above).
Install Silabide Pads by pushing the pad against the bristles. The
pad should stay on the disc and the surfacer can then be lowered to
it’s normal position.
When using the surfacer as a scrubber, try not to lift the surfacer from
the slab except to remove or change pads. If the pad comes loose
from the disc, stop the surfacer and repeat Pad installation from the
above procedure (disconnect the power source).
Spring loaded slot
Threaded
Hub
Hub Stud
Pad Driver Disc
Silabide Pad
Flat Washer
Cap Screw
Non Spin Tab (3)
MULTI-DISC
Roll Pin
Use a hex wrench to remove hex screw to allow
rotation of blade.
