Navigating between modes
To navigate between the different modes, use the mode, set and option buttons along with the
control dial. Modes will be distinguished by the distinct color of the dial and/or the illumination of
specific blue LED’s on the LED strip. The following will guide you through navigating between each
mode. For more information on each specific mode, see the full description of each mode in the
next section of the manual.
Operational Modes
18
Note: In Pulse
Modes, when you
save a wave, the
control dial will
blink green/white
twice to indicate
wave is saved. The
control dial will then
breathe the color
corresponding to
the mode you were
in.
Note: You are not able to navigate into Auto-Dim or Night Mode from regular operation. These
modes are automatic after you configure them in Configuration Mode. For instructions on how to
configure these modes, see Section 4.5: Configuration Mode.
(Hold to save,
press to access
saved wave)
Set
Short Pulse
Freq. Set
Saved
Wave
Set
Set
Option
/Pwr
Auto-Tune
Hold Set and Option
until Blue LEDs roll back
and forth slowly
Press Set when you
see a desired wave
form in your tank.
To fine tune wave, press the mode to speed
up wave and option to slow down wave. This
will be shown visually with the blue LED strip.
When satisfied, press Set again to save wave.
Option
/Pwr
Press Press
Mode
Set
Press
Section 4.0
Control Dial
(Hold to save,
Press to access)
EcoSMART
TSM
Random
Reef Crest
Short Pulse
Speed Set
Long Pulse
Speed Set
Random
Lagoon
Short Pulse
Freq. Set
Long Pulse
Freq. Set
Saved
Wave
Saved
Wave
EcoSMART
NTM
Mode
Option
/Pwr
Set
Mode Mode Mode Mode
Set
Option
/Pwr (Hold) - Powers Off
Mode
(Hold) - Feed mode

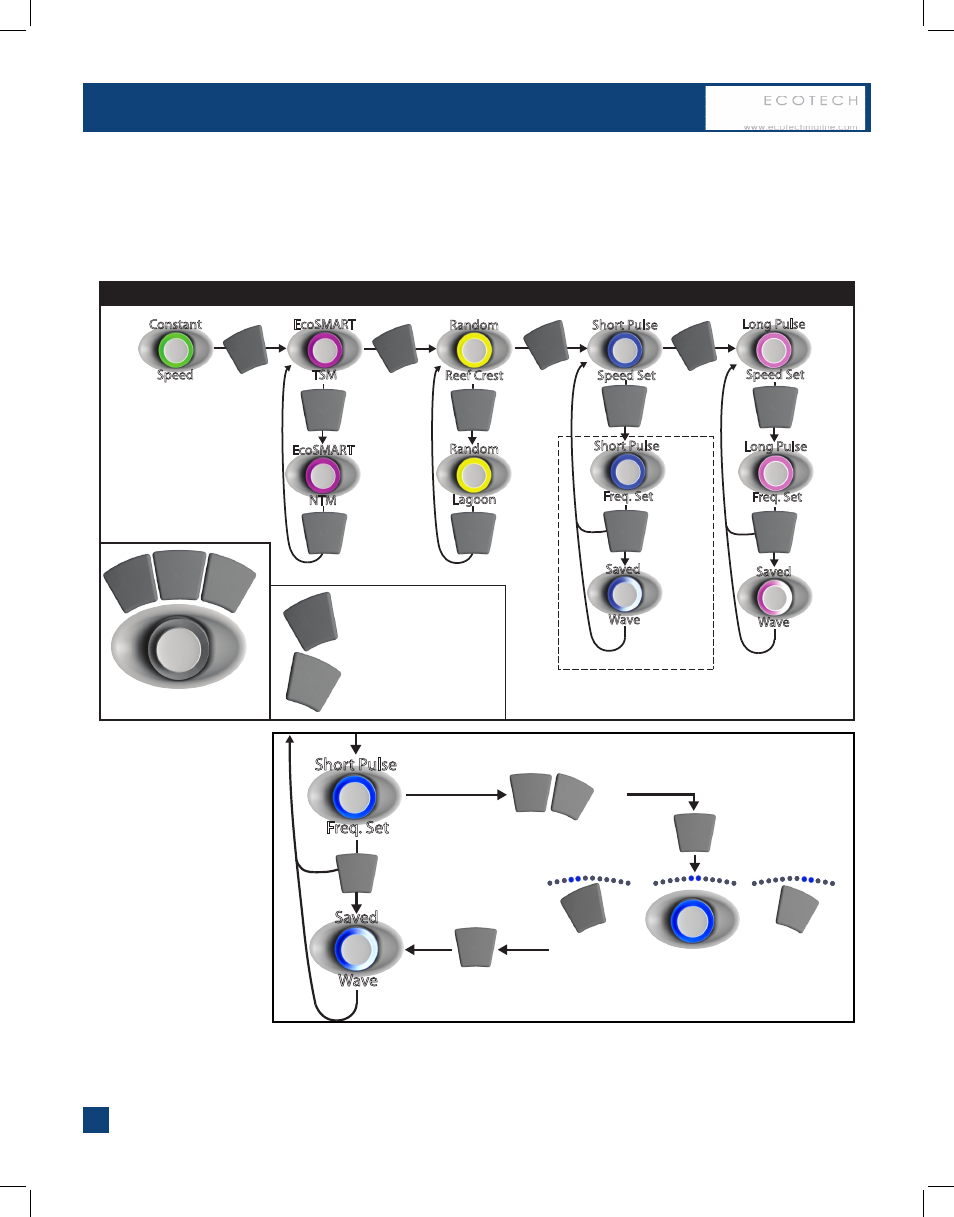

EcoSMART Driver General Operational Modes
Constant
Speed
*
*
*
*
*Note: LED bar will indicate change between modes
Set
Set
Set
Set Set
Set Set
See Below for Auto Tune
(Hold to save,
Press to access)
