VHSIM-G02 User’s Guide 3-1
CHAPTER 3
LANVIEW LEDs
This chapter describes how to use the LANVIEW LEDs to monitor the
VHSIM-G02 status and diagnose VHSIM-G02 problems. Figure 3-1
shows the location of the VHSIM-G02 LEDs. Refer to Table 3-1 for a
description of the LEDs. Section 3.2 describes redundancy.
3.1 LED DESCRIPTIONS

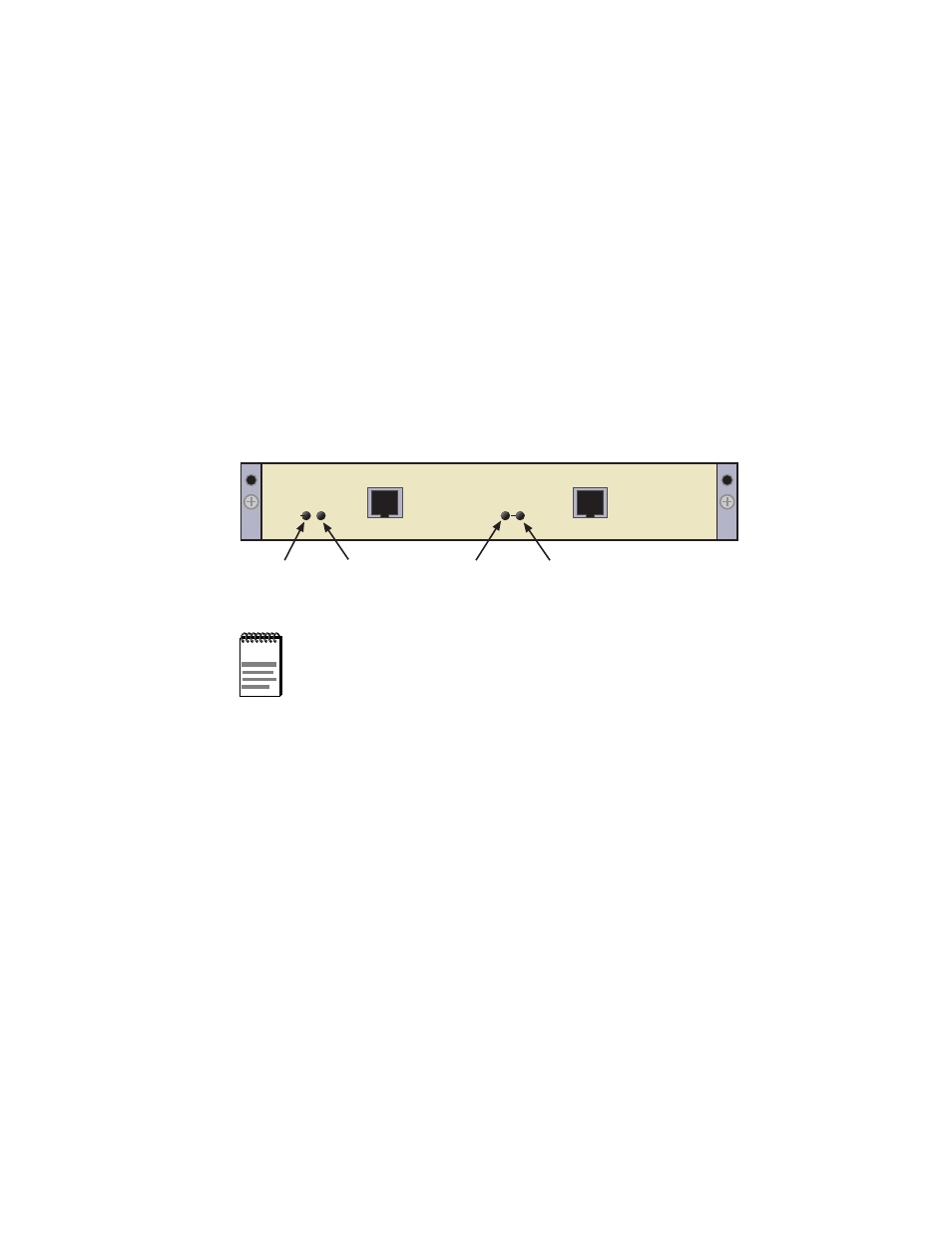

Figure 3-1 LANVIEW LEDs on the VHSIM-G02
NOTE
The terms flashing, blinking, and solid used in Table 3-1
indicate the following:
Flashing indicates an irregular LED pulse.
Blinking indicates a steady LED pulse (approximately 50% on
and 50% off).
Solid indicates a steady LED light. No pulsing.
25491_02
Receive (RX) Transmit (TX) Receive (RX) Transmit (TX)
VHSIM-G02
1 2
