Decorative Frame Trims
A selection of decorative frame trim kits are available
for mounting around the outside of the appliance to en-
hance its visual effect on the room. Installation instruc-
tions for each decorative frame trim are included with
the frame trim kit.
Unit Kit Model
UVC/UVS36 DV36GTP/DV36GTA
DV36TKP/DV36TKA
DV36KMP/DV36KMA
DV36KWP/DV36KWA
UVC/UVS43 DV43GTP/DV43GTA
DV43TKP/DV43TKA
DV43KMP/DV43KMA
DV43KWP/DV43KWA
Decorative Bay Window
Available for the UVC36 only.
When fitting the Bay Window Kit, the original front
frame/glass assembly MUST remain in place. The
Bay Window Kit is fitted over the existing front
glass.
Installation
1. Remove the existing louvre assembly bottom com-
plete with the hinges.
2. Remove the louvre assembly top.
3. Assembly the Bay Window Kit according to the
instructions supplied with the kit.
4. Place the 2 pieces of ceramic refractory along the
base of the bay window. (Fig. 21)
5. Hang the bay window assembly over the existing
window frame assembly.
6. Reinstall the louvre assembly top.
7. Do not remove the existing window frame assembly.
Louvre Assem-
bly Top
Bay
Window
Frame
Spacers
Ceramic
Refractory
Louvre
Assembly
Bottom
Screws
Bottom
Brass
Trim
Ceramic
Refractory
FP1195

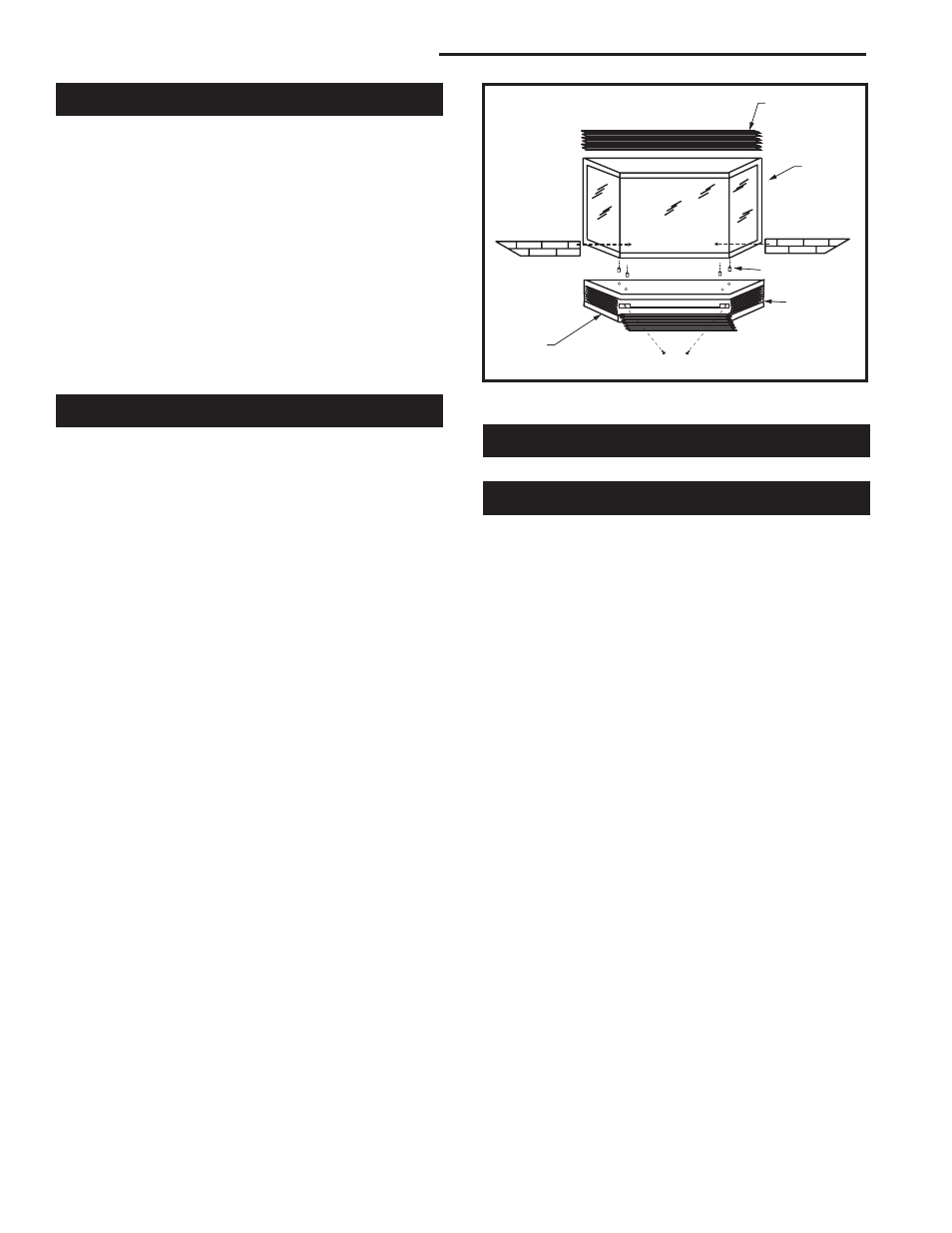

Fig. 21 Bay window.
EB-1 Electrical Box
Junction box for fan installations.
Outside Air Termination
The AK-1 completes the connection from outside air kit
to out-of-doors. (Does not include 4" flex duct.)
