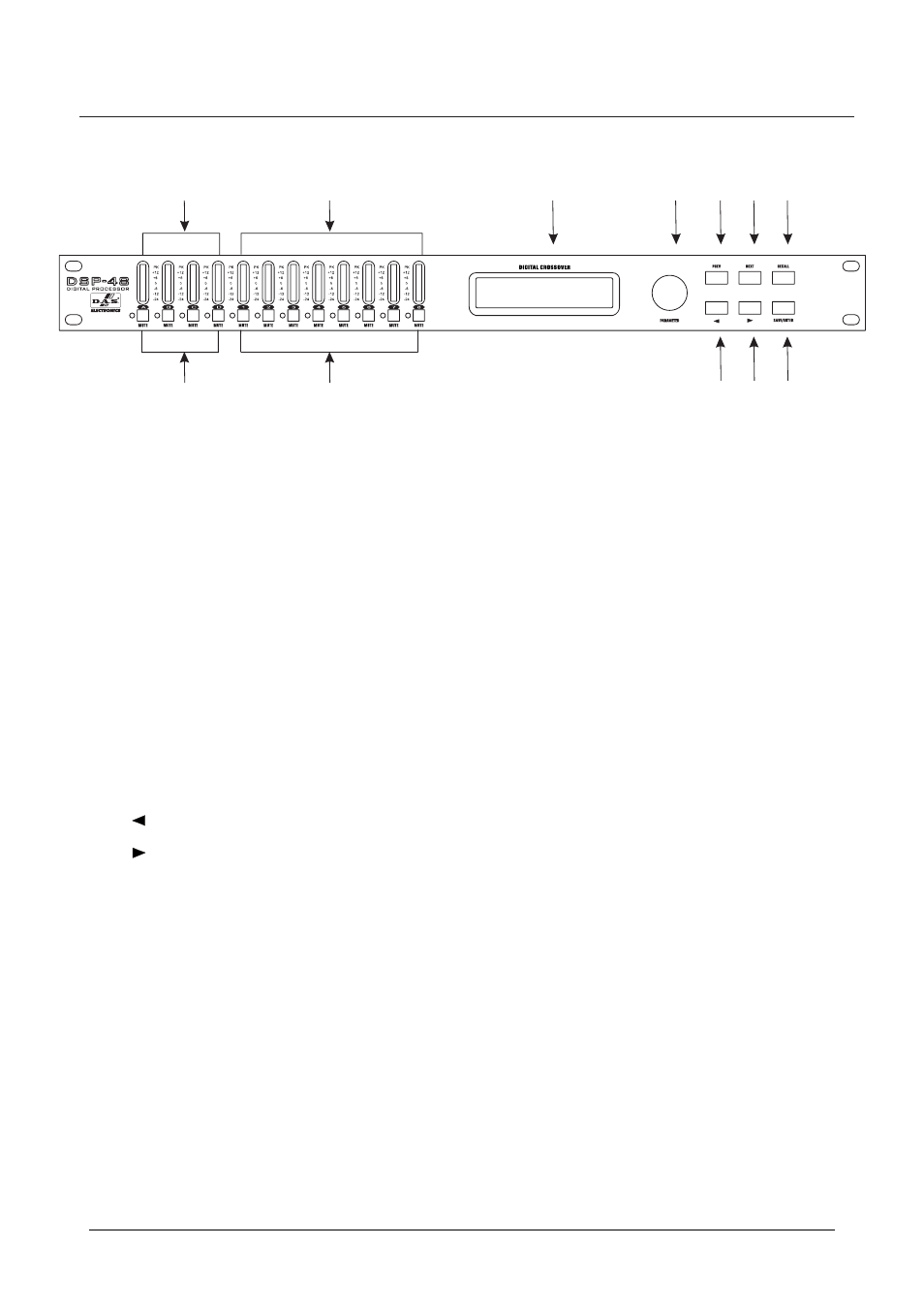

FRONT PANEL
1 . Seven band input meter.
2 . Seven band output meter
3 .
5 . PREV: switch sub-menu, change password letter position and so on.
6 . NEXT: switch sub-munu,change password letter position and so on.
7 .
10 . Key: switch the option and change parameter value.
11 . Key: switch the option and change parameter value
12 . SAVE/ENTER: save program and confirm key
2X20 character LCD to indicate all kinds of parameter.
4 . PARAMETER with PUSH
PUSH Key to switch the main menu.
Rotate PARAMETER to adjust parameter value, password character and program name and so on.
RECALL: recall program and quit the menu.
8 . Input MUTE: the left meter will lighten when input mute
9 . Output MUTE: the left meter will lighten when output mute.
1 2 3 4 5 6 7
8 9 10 11 12
