7
) THRU/HPF :
‘SATELLITE OUTPUT’ selector to switch between full range signal or pass filter
.
) PRESET DEEP/LOUD :

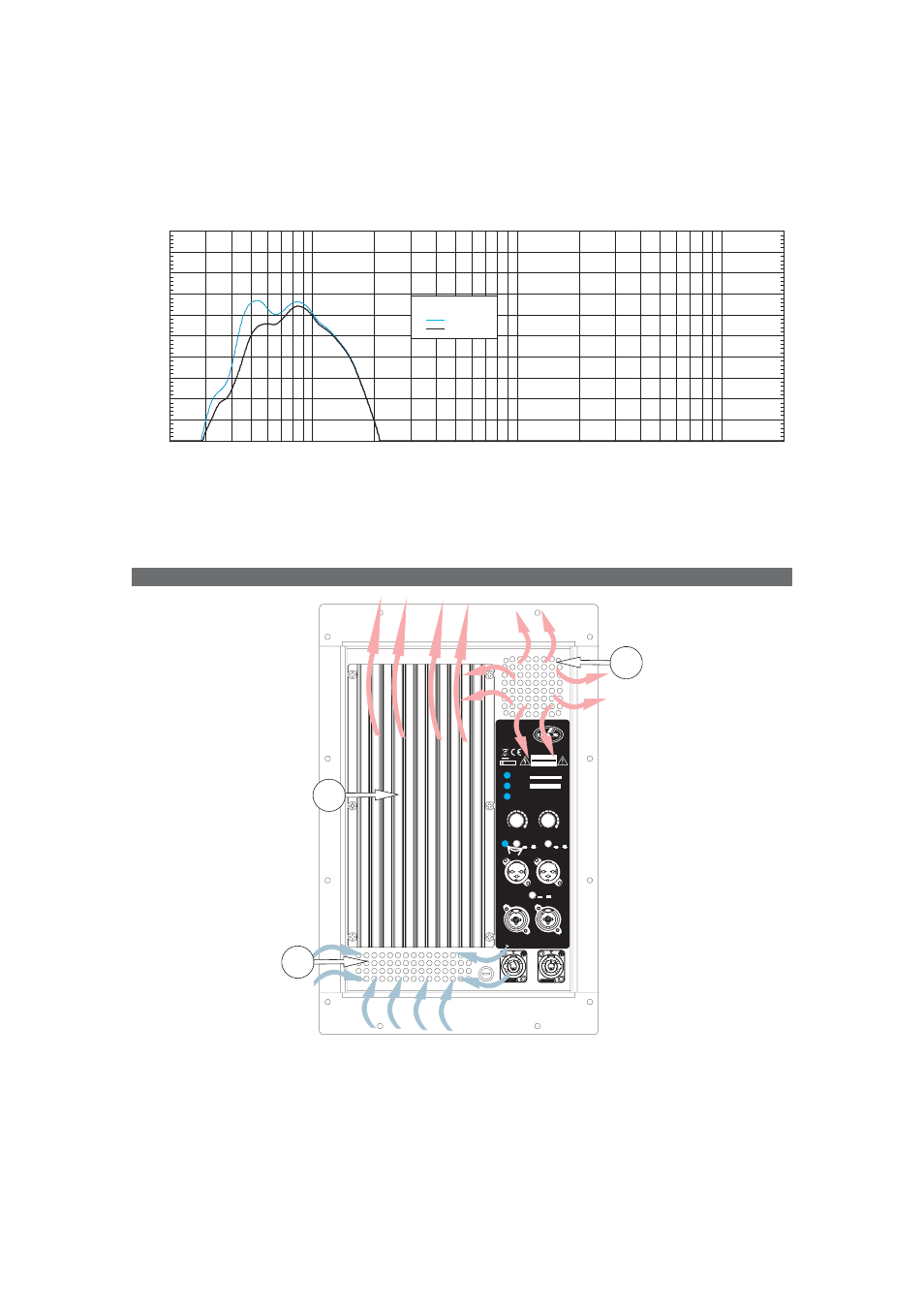

Button for switching between two types of frequency response, DEEP or LOUD (see graphs).
12
with cut-off frequency
of 100 Hz
13
) Fan :
The unit is equipped with a fan to maintain the correct operating temperature.
Do not block or obstruct in any way the air entrance or exit while the equipment is in use.
14
The unit is equipped with fan and heatsink to maintain the correct operating temperature.
Keep grilles clean and dust-free.
Do not block or obstruct in any way the air entrance or exit while the equipment is in use.
Air circulates from the bottom to the top of the amplifier.
10k 5k 2k 1k 500 200 100 50 20 20 20k Hz
130.0
dBSPL
120.0
110.0
100.0
90.0
80.0
100 Hz
DEEP
LOUD
HEAT EMISSION
230V 3A 50Hz/60Hz
AC INPUT
MAX. 6 UNITS IN PARALLEL
AC OUTPUT
INPUT A
OUTPUT A OUTPUT B
INPUT B
HPF/THRU
SATELLITE X-OVER
LIMIT
SIGNAL
ON
DEEP/LOUD
PRESET
- +
POLARITY
CAUTION DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK DO NOT OPEN
D.A.S. AUDIO S.A. (Valencia) MADE IN SPAIN
N1918
20080011
T12 A L 250V FUSE
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE REPLACE ONLY WITH THE SAME TYPE
LEVEL
+6 -oo
0
LOW-PASS
160Hz 100Hz
125Hz
avant 118A
Heatsink
Entrance
of air
Exit
of air
Manual del Usuario / serie avant / User’s Manual
