Crosman SAPR70 - Manual (Page 2)

Model Stinger R70
Soft Air Rifle
6 mm Plastic BB
OWNER'S MANUAL
READ ALL INSTRUCTIONS AND WARNINGS IN THIS
MANUAL BEFORE USING THIS SOFT AIR GUN
Instructions in Spanish included on reverse side.
Distributed by
Crosman Corporation
Routes 5 & 20
P.O. Box 308
E. Bloomfield, NY 14443
www.crosman.com
1-800-7AIRGUN SAPR70-515
YOU AND OTHERS WITH YOU SHOULD ALWAYS WEAR SHOOTING GLASSES TO PROTECT YOUR EYES.
READ ALL INSTRUCTIONS BEFORE USING.
BUYER AND USER HAVE THE DUTY TO OBEY ALL LAWS ABOUT THE USE AND OWNERSHIP OF THIS SOFT AIR GUN.
Please read this owner's manual completely. Remember to treat this soft air gun with the same respect
you would a firearm. Always carefully follow the safety instructions found in this owner's manual and
keep this manual in a safe place for future use.
If you have any questions regarding your new soft air gun, please contact Crosman Customer Service
at: 1-800-724-7486, 585-657-6161 or www.crosman.com.
THIS SOFT AIR GUN IS INTENDED FOR USE BY THOSE 16 YEARS OF AGE OR OLDER.
SPECIFICATIONS
PERFORMANCE: Many factors can affect velocity,
including brand of projectile, type of projectile and barrel
condition.
Mechanism/Action Electronic
Caliber/Ammunition 6mm plastic BBs
Reservoir Up to 600 BBs
Weight 4.5 lbs (2.04 kg)
Overall Length
23.75 inches to 33.5
inches (60.33 cm to
85.09 cm)
Barrel Length 12.44 inches (31.6 cm)
Barrel Material Precision aluminum
Safety Lever
Velocity up to 150 fps (45.72 m/s)
REPAIR SERVICE
If your soft air gun needs repair, we recommend that you call Crosman Corporation Customer service at 1-
800-724-7486 or 585-657-6161. (International customers should contact their distributor.) DO NOT ATTEMPT
TO DISASSEMBLE IT! Your soft air gun requires special tools and fixtures to repair it. If you take it apart you
probably will not be able to reassemble it correctly. Crosman assumes no warranty responsibility under such
circumstances.
LIMITED 30 DAY WARRANTY
This product is warranted to the retail consumer for 30 days from date of retail purchase against defects in
material and workmanship and is transferable.
WHAT IS COVERED
Replacement parts and labor. Transportation charges to consumer for repaired product.
WHAT IS NOT COVERED
Transportation charges to Crosman for product. Damages caused by abuse, modification or failure to perform
normal maintenance - see step 9. Any other expense. CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES,
OR INCIDENTAL EXPENSES, INCLUDING DAMAGE TO PROPERTY. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
WARRANTY CLAIMS
USA Customers: Attach your name, address, description of problem, phone number and copy of sales receipt to
product. Package and return to Crosman Corporation, Rts. 5 & 20, E. Bloomfield, NY 14443.
Canadian Customers: Follow packaging procedures above and send to Crosman Parts & Service Depot, 611
Neal Drive, Peterborough, Ontario, K9J 6X7 Canada.
International Customers: Please return product to your nearest distributor. If you do not know your distributor,
please call 585-657-6161 and ask for our International Department for assistance.
IMPLIED WARRANTIES
ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 30 DAYS FROM DATE OF
RETAIL PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
To the extent any provision of this warranty is prohibited by federal, state, or municipal law which cannot be
preempted, it shall not be applicable. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
CROSMAN is a registered trademark of Crosman Corporation in the United States.

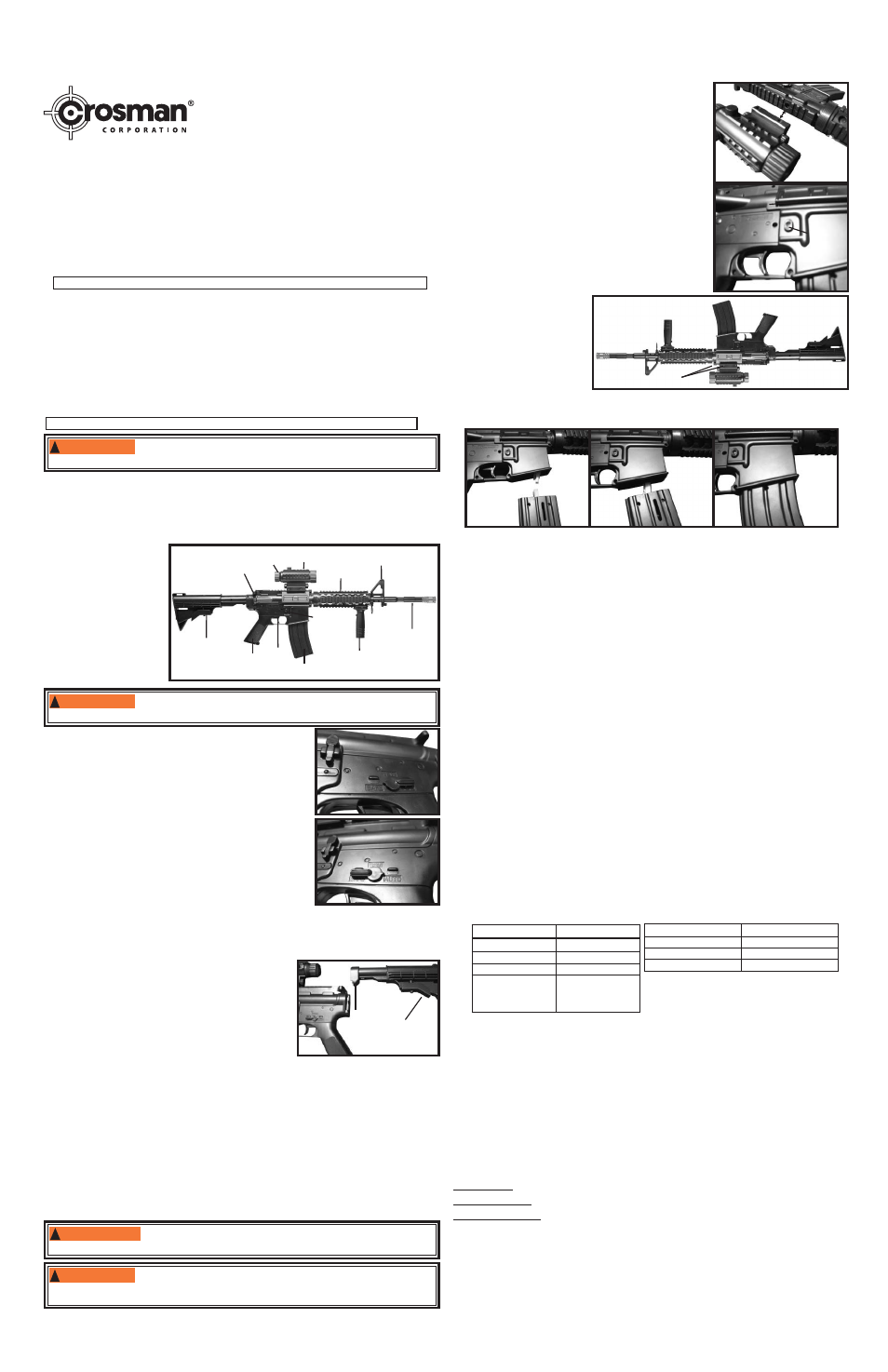

1. Learning the Parts of
Your New Soft Air Gun.
Learning the names of the
parts of your new soft air gun
will help you to understand
your owner's manual. Use this
manual to increase your
enjoyment of this soft air gun.
2. Operating the Safety
2.1. To Put the Soft Air Gun
"ON SAFE":
• Locate the safety on the
left side of the receiver.
(Fig. 2A)
• Push lever all the way up
to the right side so that
the lever is pointing to the
word "SAFE".
Like all mechanical devices, a soft air gun safety can fail. Even when
the safety is "ON SAFE", you should continue to handle the soft air
gun safely. NEVER point the soft air gun at any person. NEVER
point the soft air gun at anything you do not intend to shoot.
2.2. To Take the Soft Air Gun "OFF SAFE":
• Locate the safety on the left side of the receiver. (Fig. 2B)
• Push the lever all the way up to the left so that the lever is
pointing to the word "AUTO" or put it on the vertical position
pointing to the word "SEMI".
• The soft air gun is "OFF SAFE" and ready to fire in automatic
mode when pointing to either of these words.
3. Installing, adjusting and removing the stock
Before installing, adjusting or removing accessories; make sure your
gun is "ON SAFE", (see section 2.1) and pointed in a SAFE
DIRECTION.
3.1. Installing the stock
• Line stock up with grooves at the back of the rifle. (Fig. 3)
• With the stock in this position push the stock down until it locks
into place.
3.2. Adjusting the stock
• After installing the stock, you may open or extend the stock to
one of two different lengths.
• Push up on the stock adjustment lever and pull the stock back one or two clicks to the desired
length.
3.3. Removing the stock
• Make sure the soft air gun is "ON SAFE." (See Section 2.1)
• Point the soft air gun in a SAFE DIRECTION.
• Make sure the stock is in one of the open positions. (see
section 3.2)
• Pull back the stock release button.
• Push the stock upward until it has cleared the soft air gun.
4. Adjusting and the foregrip
• Turn the knob on the bottom of the fore grip to loosen.
• Slide the foregrip to the desired position.
• Turn knob to tighten.
4.1. Removing the foregrip
• Turn the knob on the bottom of the fore grip to loosen.
• Slide the fore grip forward until it clears the rail.
5. Loading and Unloading Plastic BBs
5.1. Installing and filling the loading chamber
• Make sure the soft air gun is "ON SAFE." (See Step 2.1)
• Point the soft air gun in a SAFE DIRECTION.
• Loosen the mounting screws on the loading chamber
• With the small end toward the rear of the gun, place loading chamber on the top rail, being sure to
line up the hole on the bottom of the loading chamber with the hole in the rail. (Fig 4).
• Tighten mounting screws.
• Slide open the loading chamber door on the top of the clip.
• Fill the loading chamber with up to 600 plastic BBs and slide the door closed.
5.2. Unloading Plastic BBs
• Make sure the soft air gun is "ON SAFE." (See Step 2.1)
• Point the soft air gun in a SAFE DIRECTION.
• Locate and push the battery clip release button on the right side of your soft air gun located above
the trigger to release the battery. (Fig.5)
• Unplug the battery clip from the gun.
Fig 1
• Holding the gun as shown in (Fig 6), loosen the mounting
screws and remove the loading chamber, being careful not to
spill out the BBs.
• To completely empty the chamber, open the door on the top
by sliding the door out and pour the BBs out into a container
or your hand.
• Before replacing the loading chamber, make sure the gun is
not loaded, by installing the battery (Section 6), and firing the
gun in a safe direction until no more BBs fire.
6. Charging and un-charging the soft air gun
6.1. Charging the soft air gun
• Make sure the soft air gun is "ON SAFE." (See Step 2.1)
• Point the soft air gun in a SAFE DIRECTION.
• Make sure the loading chamber is installed in the gun.
• Locate the battery plug inside the battery pack.
• Plug the white connector in the battery clip in to the white
connector attached to the soft air gun. (Fig. 7A)
• Tuck the connectors inside the battery clip. (Fig. 7B)
• Push the magazine inside the gun until it locks in place. (Fig. 7C)
• The soft air gun is now charged and ready to fire.
6.2. Un-charging the soft air gun.
• Make sure the soft air gun is "ON SAFE." (See Step 2.1)
• Point the soft air gun in a SAFE DIRECTION.
• Press the battery clip release button on the right side of the gun.
• Unplug the battery clip from the gun.
7. Charging the battery.
• Your soft air gun comes with
a battery charger to help
prolong the life of the battery.
• To charge the battery,
remove the battery clip from
the gun (Section 6.2).
• Plug the white connector on the
battery into the white connector
on the battery charger.
• Plug the charger in to outlet.
NOTE: The battery charging
time is 4 hours. Continuous
battery consumption will
allow the gun to shoot for 15-
20 minutes. To prolong battery lifetime and maintain the best shooting performance do not shoot
over 5 minutes continuously in the Full Auto Mode.
8. Aiming and Firing Safely
NOTE: This soft air gun fires in auto-mode only. This means it will continue to fire plastic BBs as
long as you hold the trigger.
• You and others with you should always wear shooting glasses to protect your eyes.
• Always point your soft air gun in a SAFE DIRECTION.
• Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or
ricochet and hit someone or something you had not intended to hit. If the plastic BBs should
happen to hit a hard surface, DO NOT re-use those plastic BBs because they could possibly
cause damage to your soft air gun.
• Your soft air gun is designed for target shooting and is suited for both indoor and outdoor use.
Always remember to place your target carefully. THINK about what you will hit if you miss the target.
• When you are sure of your target and backstop, and the area around the target is clear, take the
soft air gun "OFF SAFE" (See Section 2.2) and pull the trigger to fire.
9. Maintaining Your Soft Air Gun
• DO NOT MODIFY OR ALTER YOUR SOFT AIR GUN. Tampering with the soft air gun or attempts
to change the soft air gun in any way may make it unsafe to use, may cause serious injury and will
void the warranty.
• If you drop your soft air gun, visually check to see that it works properly before you use it again. If
anything seems changed, like a shorter or weaker trigger pull, this may mean parts are worn out
or broken. Call Customer Service at Crosman for assistance before using your soft air gun again.
10. Reviewing Safety
• Do not ever point the soft air gun at any person. Do not ever point the soft air gun at anything you
do not intend to shoot.
• Always treat the soft air gun as though it is loaded and with the same respect you would a firearm.
• Always aim in a SAFE DIRECTION. Always keep the muzzle of the soft air gun pointed in a SAFE
DIRECTION.
• Always keep the soft air gun "ON SAFE" until you are ready to shoot in a SAFE DIRECTION.
• Always check to see if the soft air gun is "ON SAFE" and unloaded when getting it from another
person or from storage.
• Always keep your finger off the trigger and out of the trigger guard until ready to shoot.
• You and others with you should always wear shooting glasses to protect your eyes.
• If your reading or prescription glasses are not safety glasses, make sure you wear shooting
glasses over your regular glasses.
• Use 6 mm plastic BBs only.
• Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or
ricochet and hit someone or something you had not intended to hit. If the plastic BBs should
happen to hit a hard surface, do not reuse those plastic BBs because they could cause possible
damage to your soft air gun.
• Replace the backstop if it becomes worn. Place the backstop in a location that will be safe should
the backstop fail.
• Do not attempt to disassemble or tamper with your airgun. Use an Authorized Service Station.
Using unauthorized repair centers or modifying the function of your airgun in any way may be
unsafe and will void your warranty.
• Do not put the soft air gun away loaded. Make sure ALL of the plastic BBs are unloaded from the
soft air gun.
• Always store this soft air gun in a secure location.
Fig 2A
Fig 4
Fig 5
Safe for “ON SAFE”
Muzzle
Trigger
Loading
chamber
Battery clip
Four-sided rails
Front
sight
Cocking
handle
Stock
Line up holes
Grip
Fig 3
Stock
release
button
Push here to
extend stock
Battery
clip
release
button
Fig 6
Fig 7A
Connector
Fore grip
Fig 2B
Auto or Semi for “OFF SAFE”
Fig 7B
Tuck
connectors
inside
Fig 7C
Lock
in place
Loading
port
Battery clip
release
button
Mounting screws
loading
chamber
Safety (fig.2A)
WARNING : This is not a toy. Adult supervision required. Misuse or careless use may
cause serious injury, particularly to the eye. May be dangerous up to 100 yards (91.44 meters).
!
WARNING :
Keep the soft air gun in the "ON SAFE" position until you are actually
ready to shoot. Then turn the safety to the "OFF SAFE" position.
!
WARNING : Never assume that because the soft air gun no longer fires a BB and/or
the loading chamber is removed, that a BB is not lodged in the barrel. Always treat the soft air
gun as though it is loaded and with the same respect you would a firearm.
!
WARNING :
Use 6 mm plastic BBs only in this soft air gun. Use of any other
ammunition can cause injury to you or damage to the soft air gun.
!
