Comtrol C53 User Manual
Page 7
Reference Section
7
Reference Section
RS-232 Pinouts

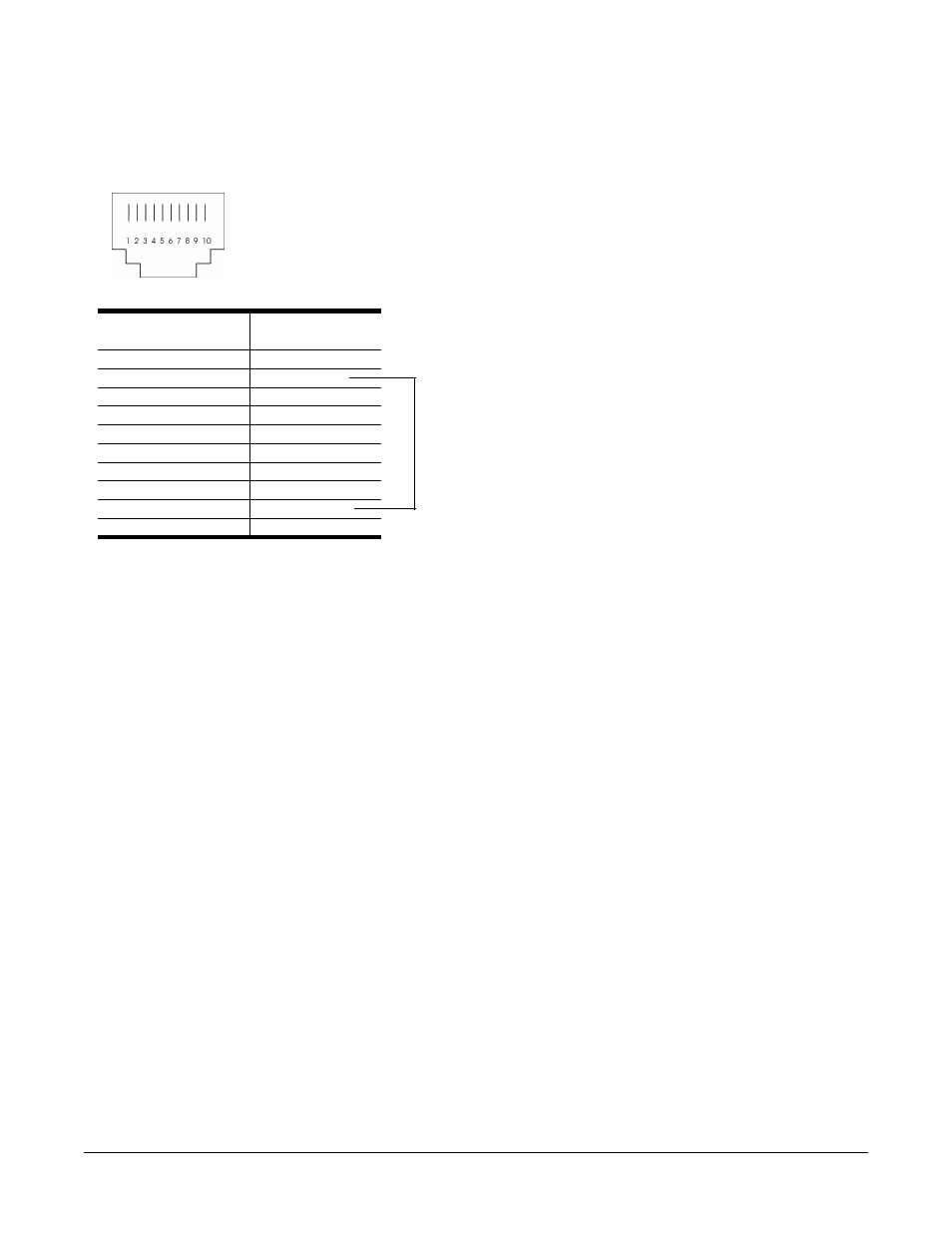

The following depicts the RS-232 interface with the RJ45 connector.
Note: The DTR and DSR pins have been shorted. This releases the users from
the hardware flow control wiring problems. Therefore, only two types of
RS-232 cable wiring examples are listed in the following.
C52/C53 RJ45
Connector Pinouts
RS-232 Signals
1
DCD Always On
2
DTR
3
CTS
4
GND
5
RxD
6
TxD
7
GND
8
RTS
9
DSR
10
------
