(2)

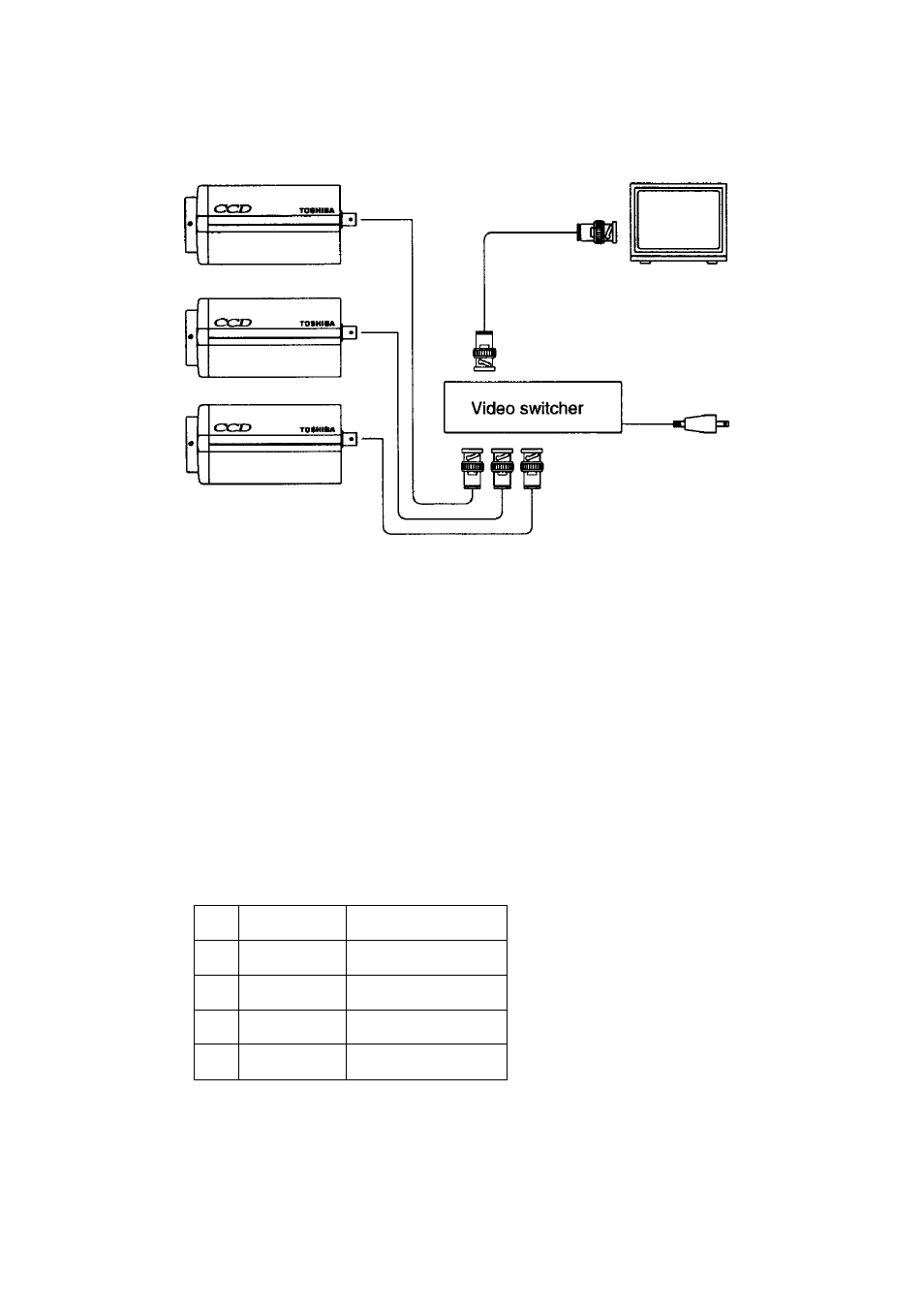

When using several cameras and one monitor:
Video monitor
(3)
When using the auto IRIS lens (with amplifier):
(a) Set the slide switch (on rear panel) to Al position.
(b) Connect the Al lens cable to the IRIS connector on left side of camera.
(4)
When using the auto IRIS lens (without amplifiter):
(a) Set the slide switch (on rear panel) to Al AMP position.
(b) Connect the auto IRIS lens cable to the IRIS connector on left side of
camera.
NOTE : Please refer to the pin definitions and figure shown below to ensure
correct operation.
IRIS pin definitions
Al
Al AMP
1
+12V
DAMP - (y)
2
NC
DAMP + (r)
3
VIDEO
DRIVER + (wh)
4
GND
DRIVER - (g)
