( 3. SYSTEM COMPONENTS: )
Camera...........................................
Instruction manual........................
Lens mount cap............................
Hexagonal wrench........................
IRIS 4pins plug, E4-191J-100.
Tripod mounting base... ...............
( 4. CONNECTION: )

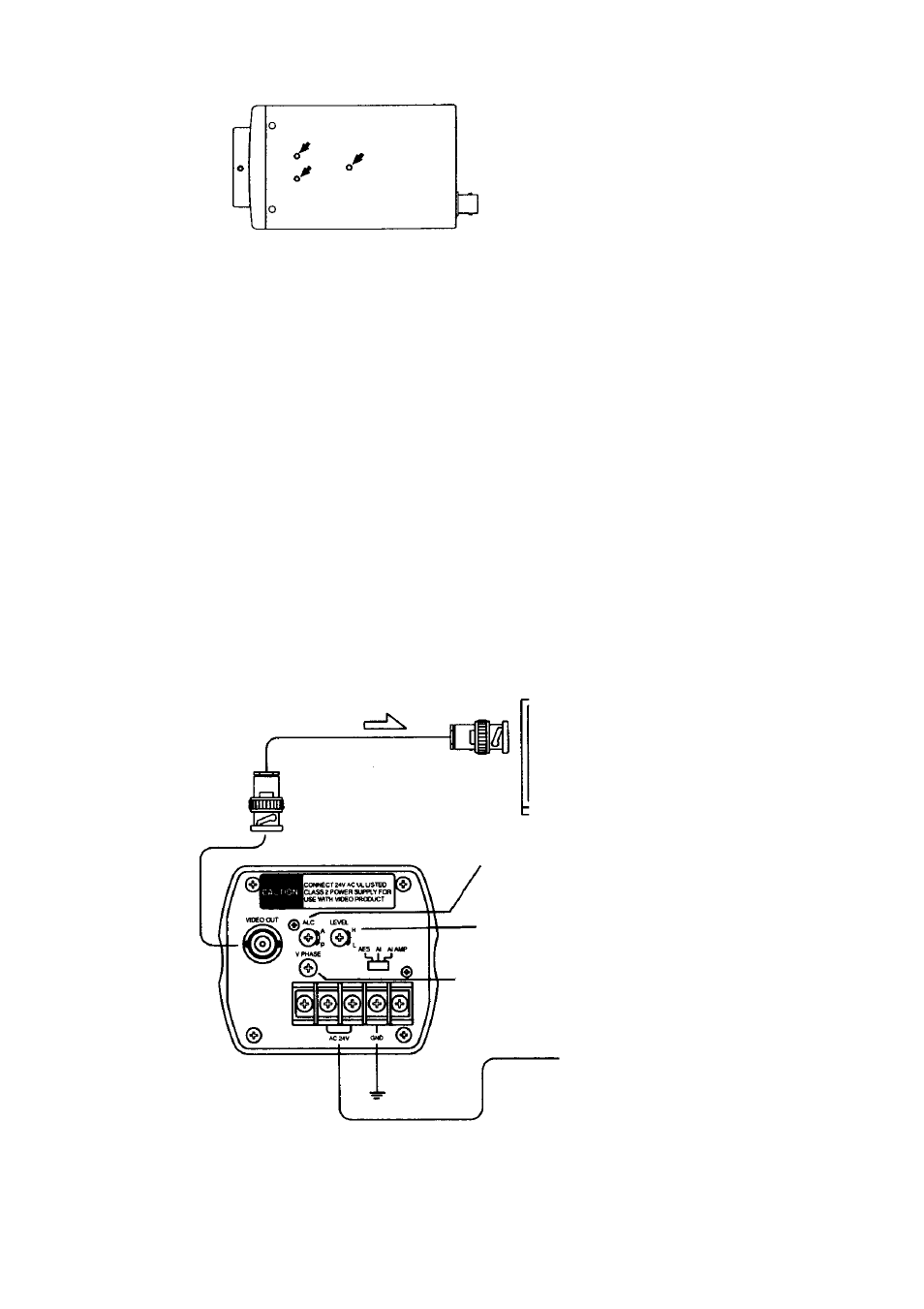

(1)When using one camera and one monitor:
Video monitor
ALC: Adjust the contrast between
peak and averaging while
viewing the monitor.
LEVEL: Adjust the video output
signal level to lens
while viewing the
^
monitor.
\ V PHASE: Adjust the V PHASE
between -100° and + 110°
TO AC 24V
Connect AC 24V UL listed class 2 for power supply.
