Connections
{^C^nnecting to Optional Equipment
You can enjoy high quality dynamic sounds by connecting the DVD video player
to optional audio equipment.
For connection to your TV, see “Connecting to a TV” [T6)pi7).
For details of output sound, see [^.
□ : Front speaker Q : Center speaker
□ : Rear speaker i=> : Signal flow
Q] : Sub woofer
Connecting to an amplifier equipped with a Dolby Digital decoder
Dolby Digital
Dolby Digital is the surround sound technology used in theaters showring the latest movies,
and is now available to reproduce this realistic effect in the home. You can enjoy motion
picture and live concert DVD video discs with this dynamic realistic sound by connecting the
DVD video player to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby
Digital processor. If you have a Dolby Pro Logic Surround decoder, you will obfain the full
benefif of Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital
soundtracks, as well as from fitles wifh the Dolby Surround mark.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic” and
the double-D symbol are trademarks of
Dolby Laboratories. Confidential
Unpublished Works. ©1992-1997 Dolby
Laboratories, Inc. All rights reserved.
P_ _ _ ^
Amplifier equipped wifh a
Dolby Digital decoder
To OPTICAL J
type digital
audio input 1 To COAXIAL
I type digital
audio input
9 » s©
I ¿ 9 e
Use DVD video discs encoded via
the Dolby Digital recording
system.
Make the following setting.
►#fi
■<=>
Connect either.
75 O coaxial cable
Optical digital cable
Setting Select: Page
“Audio Out Select” “Bitstream”
[ID
ID
Recording system □□
ID

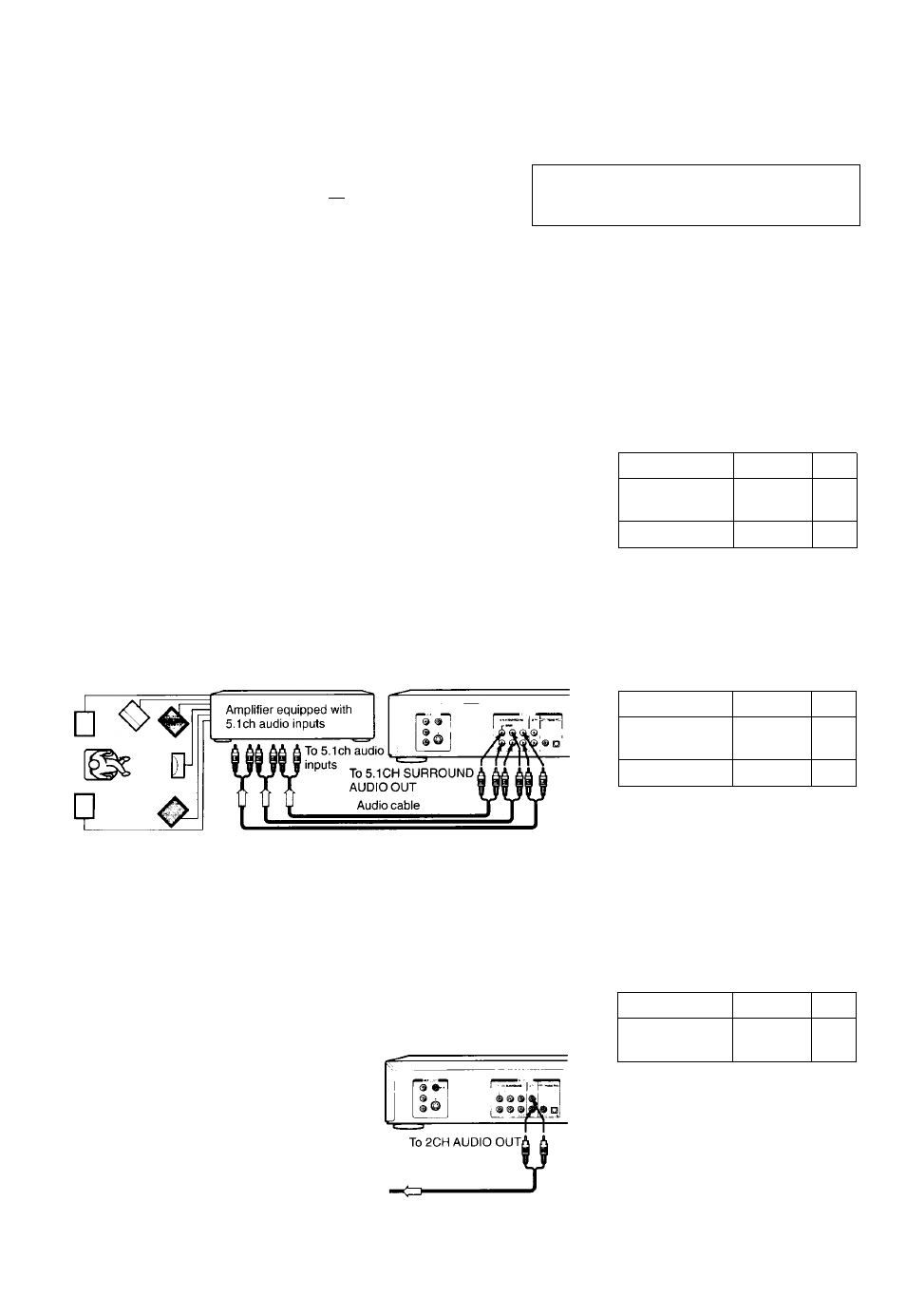

Connecting to an amplifier equipped with 5.1 ch audio inputs
5.1 ch surround sound
The Dolby Digital decoder equipped with this DVD video player enables you to obtain the full
benefit of 5.1 channel Dolby Digital sound tracks when you connect the DVD video player to
a Dolby Digital ready amplifier equipped with 5.1 channel audio inputs.
Use DVD video discs encoded via
the Dolby Digital recording
system.
Make the following setting.
Setting Select: Page
"Audio Out Select" "Analog 6ch”
ID
ID
Recording system □□
ID
2 channel sound is output in the Dolby Pro
Logic format. To obtain the original 2
channel sound, select “Analog 2ch.”
Connecting to an amplifier equipped with Dolby Pro Logic Surround
Dolby Pro Logic Surround
You can enjoy the dynamic realistic sound of Dolby Pro Logic Surround by connecting an amplifier and speaker sysfem (right and left
front speakers, a center speaker, and one or two rear speakers).
■ With an amplifier equipped with Dolby Digital
Connect the equipment the same way as described in “Connecting to an amplifier
equipped wifh a Dolby Digital decoder.” Refer fo that amplifier’s owner's manual and set
the amplifier so you can enjoy Dolby Pro Logic Surround sound.
■ With an amplifier not equipped with Dolby Digital
Connect the equipment as follows.
Make the following setting.
EF
— Amplifier equipped with
Dolby Pro Logic Surround
1 To audio input
Audio cable
Setting Select: Page
“Audio Out Select” “Analog 2ch”
ID
ID
Be sure to set “Audio Out Select”
to “Analog 2ch” when you enjoy
sounds of Dolby Pro Logic
Surround using this connection.
* Connect one or two rear speakers.
The output sound from the rear speakers will be
monaural even if you connecf two rear speakers.
