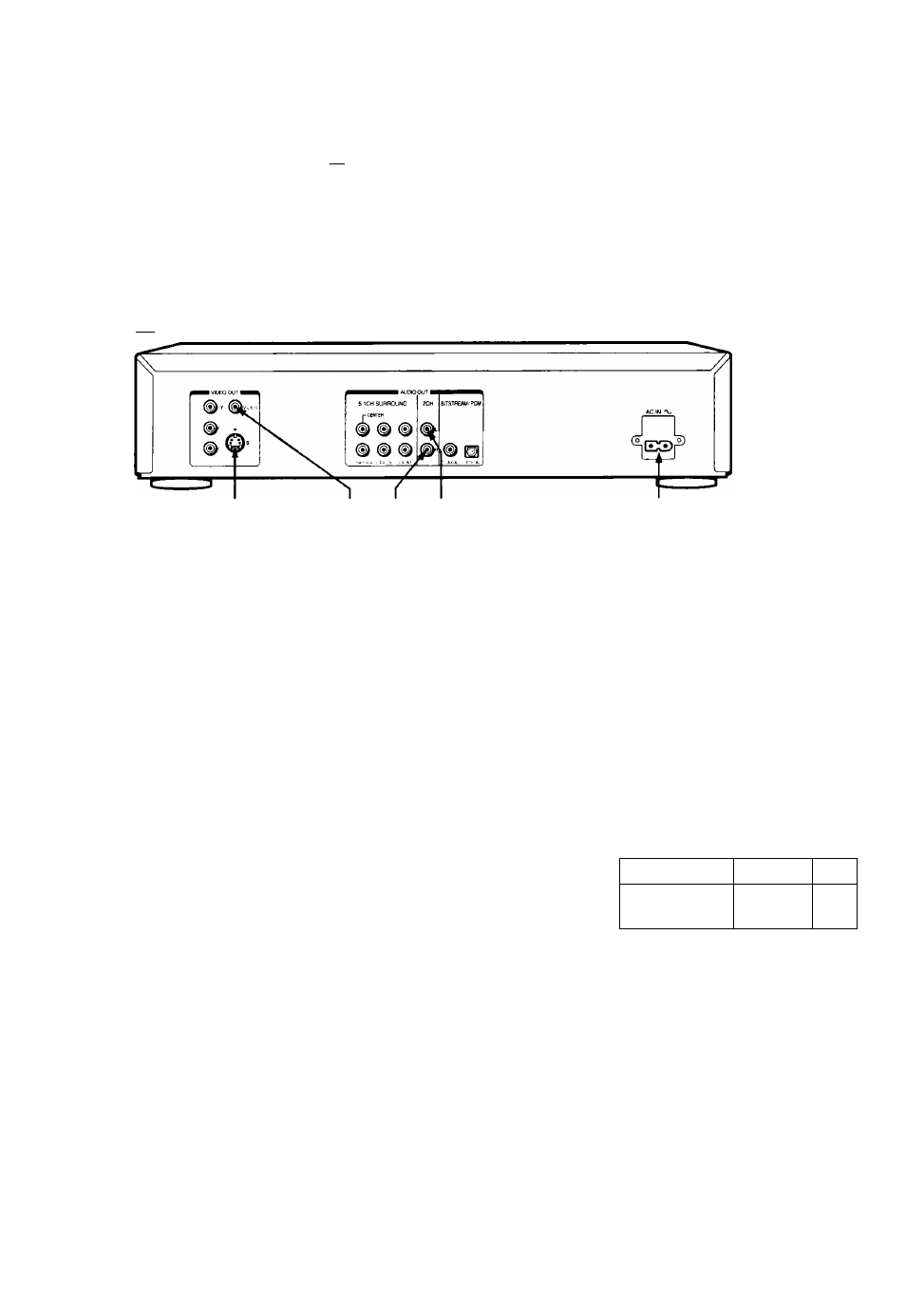

Connections
(^^nnecting to a TV
Connect the DVD video player to your TV.
For details of output sound, see (^.
Connecting to a TV
I ^ Signal tlow
To S VIDEO OUT,
(yellow)
To VIDEO OUT
(red) ^ (white)
To 2CH AUDIO OUT
To wall outlet
Audio/video cable
(supplied)
I
To audio inputs
S video cable (not supplied)
To video input I
(yellow) I
To S video input
(red) O (white)
If the TV has an S video input, connect the
DVD video player with an S video cable.
When using an S video cable, do not
connect the yellow video cable.
TV or monitor with
audio/video inputs
Make the following setting.
Setting
Select:
Page
“Audio Out Select”
“Analog 2ch”
[35>
Notes
• Refer to the owner’s manual of the connected TV as well.
• When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet
before making any connections.
• If your television set has one audio input, connect the DVD video player to a Y cable adapter (not supplied) and then connect
to your TV.
• Connect the DVD video player directly to your TV. If you connect the DVD video player to a VCR, TV/VCR combination or
video selector, the playback picture may be distorted as DVD video discs are copy protected.
