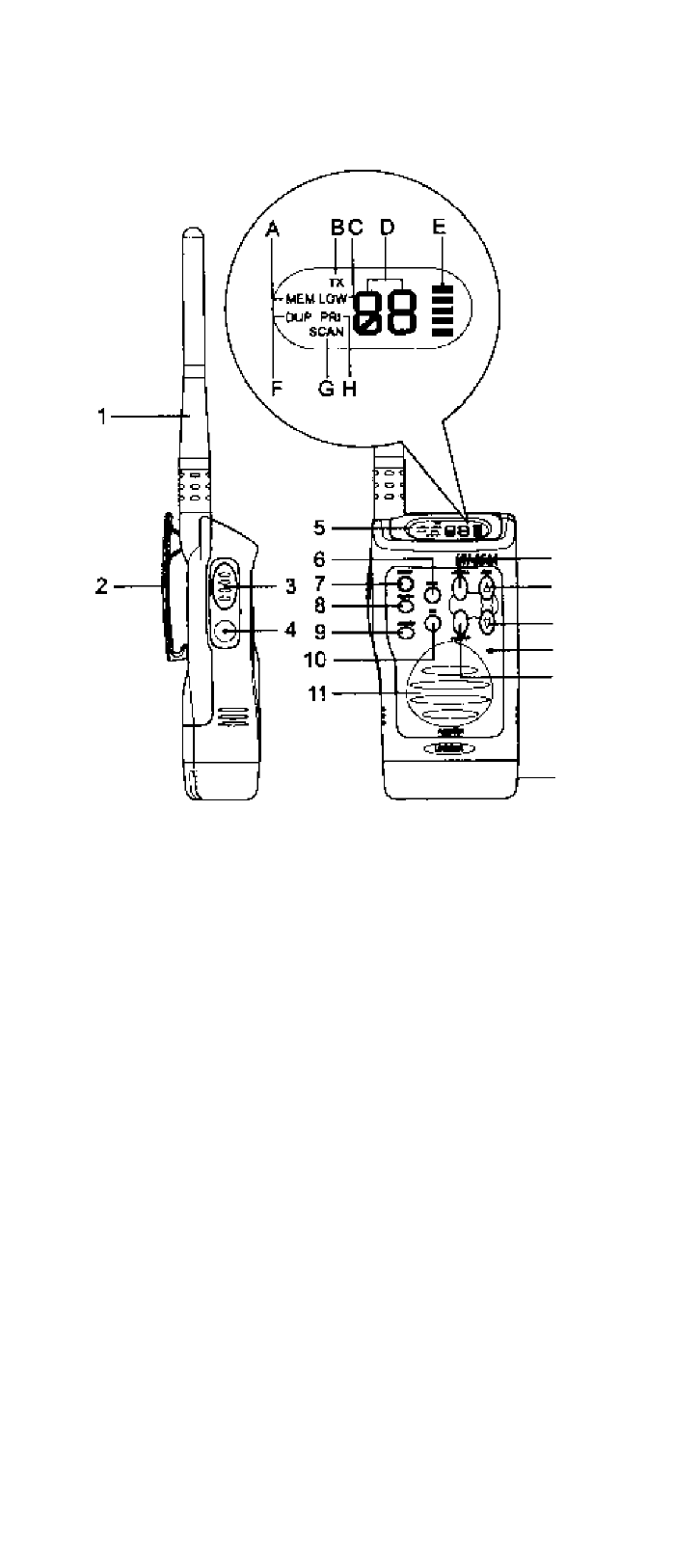

Controls and Indicators
12
13
14
15
16
17
1
Antenna
14 Channel Down
button T
2
Belt Clip
15 Microphone
3
PTT (Push to Talk)
Key
16 Squelch button
4
HI/LO/LOCK Key
17 Battery
5
LCD Display
A
MEM Indicator
6
Scan button
B
Transmit Indicator
7
Power button
C
RF Power Level
Indicator
8
Duplex button
□
Channel Number
Display
9
Priority button
E
Battery Level
Indicator
10 Memory button
F
Duplex Indicator
11 Speaker
G
Scan Indicator
12
13
Volume button
Channel Up button A
H
Priority Indicator
