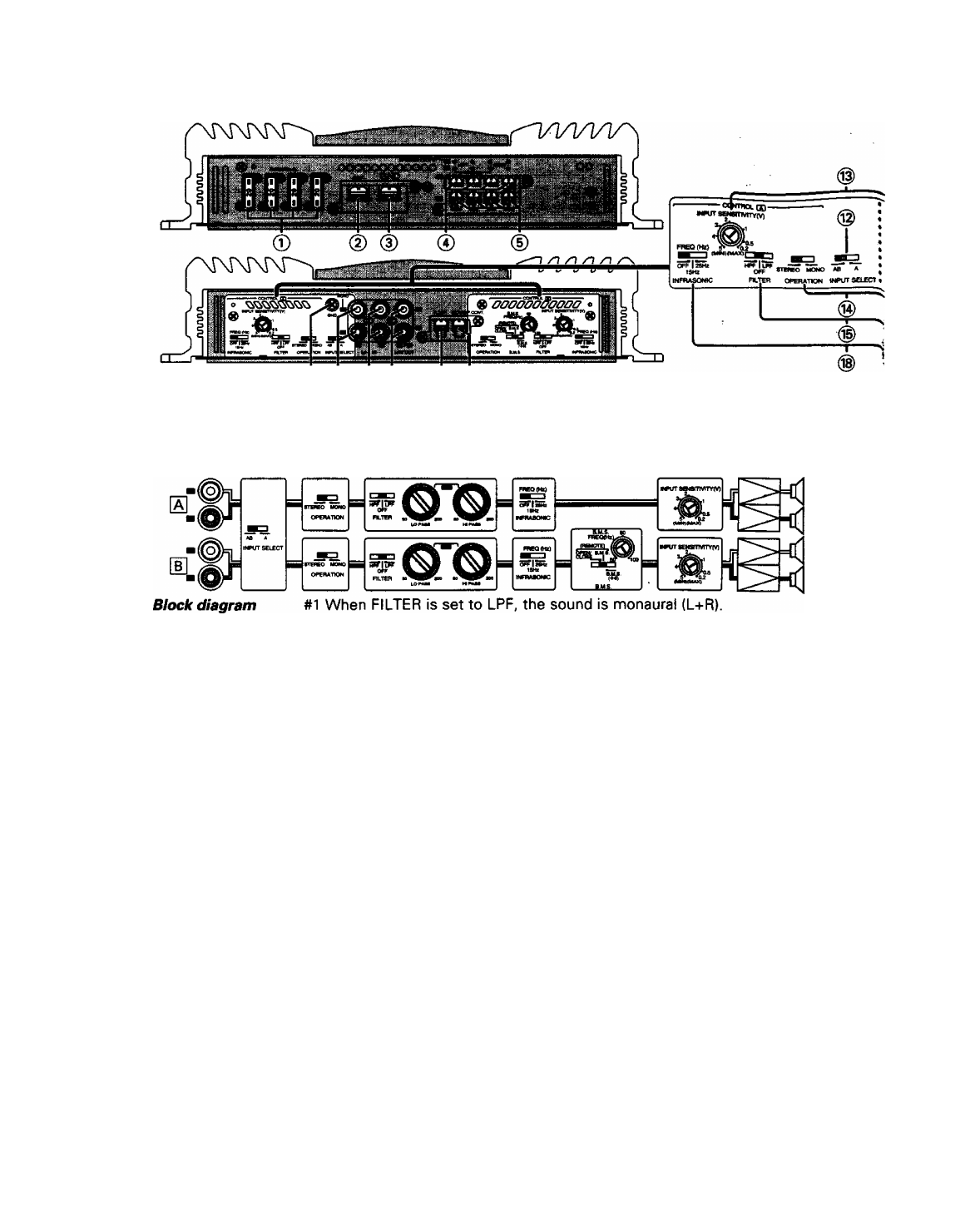

Controls
®
@ d)(D ® ®
This is a 4 channel amplifier including 2 stereo amplifiers in a body. One amplifier is referred to
as amplifier A and the other is amplifier B. This unit is compatible with a large variety of
systems by combining the switches and functions described in the following.
^#2
#2 When INFRASONIC is set to 15Hz or 25Hz, the sound is monaural (L+R).
* Note that if OPERATION is set to MONO, Lch is still monaural'.
0 Fuse (20 Ax 4)
0 Battery terminal
0 Ground terminal
0 Amplifier A speaker output
terminals
0 Amplifier B speaker output
terminals
^ SPEAKER OUTPUT terminals
* Stereo Connections:
When you wish to use the unit as a stereo
amplifier, stereo connections are used.
The speakers to be connected should
have an impedance of 2£2 or greater.
When multiple speakers are to be
connected, ensure that the combined
impedance is 2Q or greater for each
channel.
• Bridged Connections:
When you wish to use the unit as a high-
output monaural amplifier, bridged
connections are used. (Make connections
to the LEFT channel (+) and the RIGHT
channel (-) SPEAKER OUTPUT terminals.)
4
English
The speakers to be connected should
have an impedance of 4i2 or greater.
When multiple speakers are to be
connected, ensure that the combined
impedance is 4£2 or greater.
ACAUnON
The rated input of the speakers should be
no less than the maximum output of the
. amplifier. Otherwise malfunction may
result.
® RCA cable ground lead terminal
0 Amplifier A LINE IN terminal
0 Amplifier B LINE IN terminal
0 LINE OUT terminal
These jacks output respectively the signals
input to amplifiers A and B. They always
output the stereo signals regardless of the
position of the OPERATION switch.
® Power control terminal
® EXT.AMP,CONT (external
amplifier control) terminal
This controls the B.M.S. (See P.6).
