Multi-Type Network Distribution Block
Crestron C2N-HBLOCK

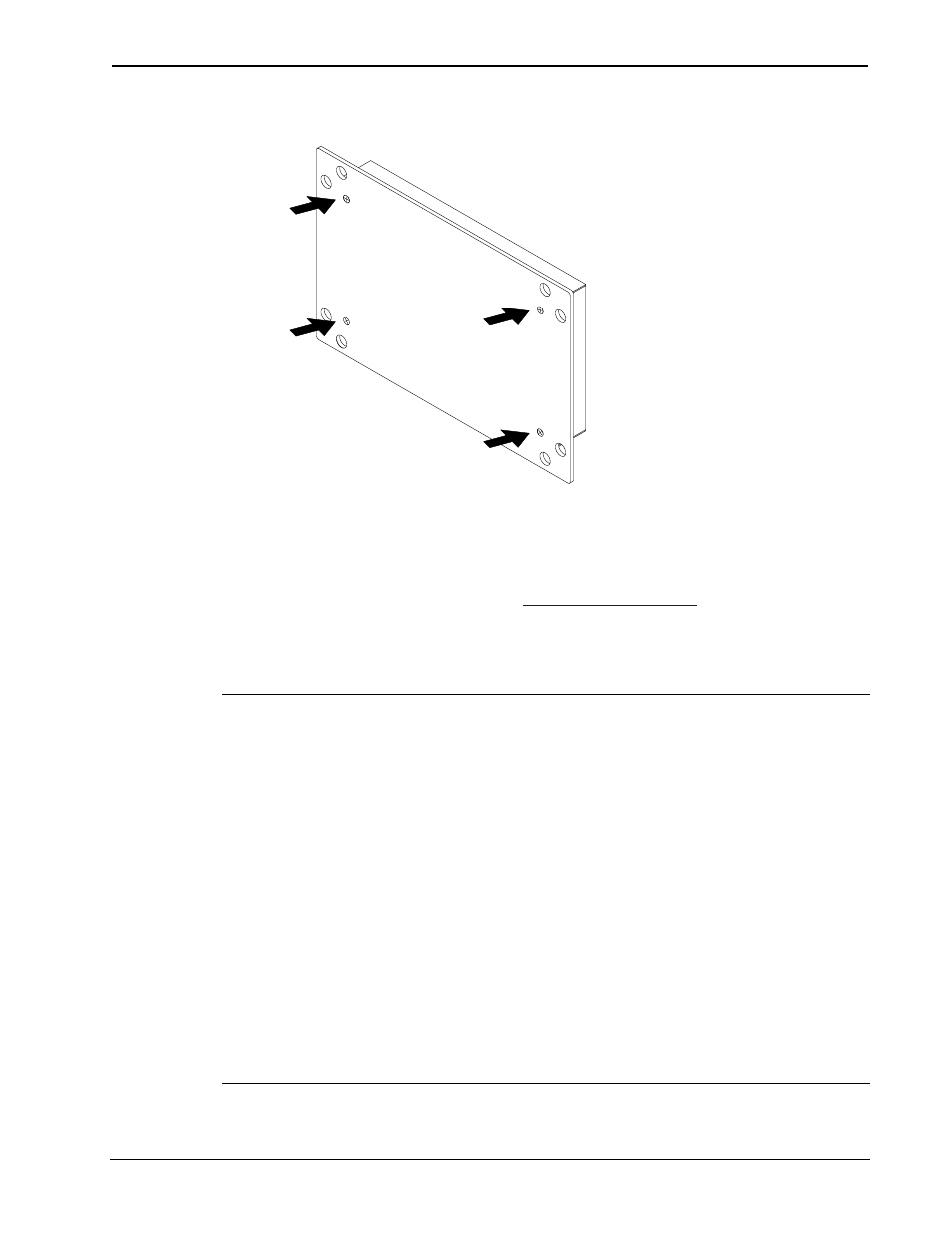

Detach Mounting Plate
2. For further instructions, refer to the latest revision of the
CNXRMAK Installation Guide (Doc. 8156). This document
can be obtained from the Downloads | Product Manuals section
.
Network Wiring
CAUTION: Use only Crestron power supplies for Crestron equipment.
Failure to do so could cause equipment damage or void the Crestron
warranty.
NOTE: For larger networks (i.e., greater than 28 network devices), it
may be necessary to add a Cresnet Hub/Repeater (CNXHUB) to maintain
signal quality throughout the network. Also, for networks with lengthy
cable runs or varying types of network devices, it may be desirable to add
a hub/repeater after only 20 network devices.
NOTE: When installing network wiring, refer to the latest revision of
the wiring diagram(s) appropriate to your specific system configuration,
available from the Downloads | Product Manuals | Wiring Diagrams
section of the Crestron website (www.crestron.com).
6
• Multi-Type Network Distribution Block
Operations & Installation Guide – DOC. 8157A
