Dishwasher Preparation

Toe

Panel

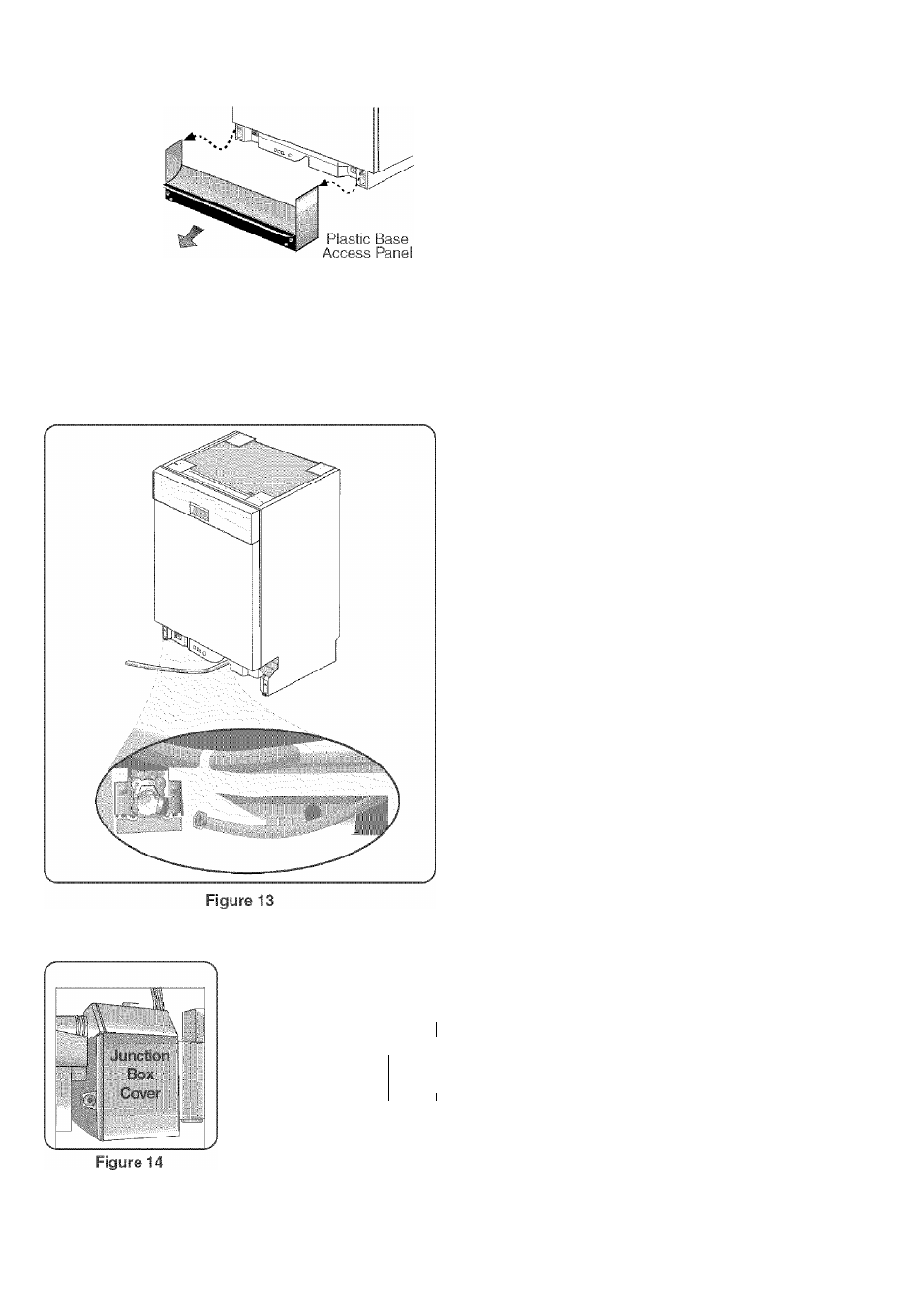

Figure 12

DISHWASHER PREPARATION (continued)

Removing the Toe Panel
Regular Toe Panel

The toe panel is loosely attached with tape. Remove the
tape and pull the toe panel away from the dishwasher. Set
the toe panel aside. It will be reinstalled later.

Plastic Base Access Panel and Toe Panel (SHY66C,

SHX99A, SHE66C, SHE99C, SHX57C, and SHV57C

models only)

The plastic base access panel and toe panel are in place
on the dishwasher, but are not attached. Remove the toe

panel first, as shown in Figure 12, then remove the
plastic base access panel, as shown in Figure 12.

Installing the 90° Elbow Fitting
NOTE: The 90° elbow fitting is not supplied with the

dishwasher, and must be purchased separately. If the
dishwasher’s hot water supply line is to be copper tubing,

make certain the elbow has a compression fitting.

Apply Tefion tape or other pipe sealant when required.

Orient the hot water supply connection leg of the elbow

toward the channel opening in the dishwasher base. See

Figure 13.

Junction Box Preparation

Remove junction box cover (see Figure 14) by lifting

the junction box cover up and off.

Remove the strain relief plate by removing the screw

at the back of the junction box, as shown in Figure

15 and sliding the strain relief plate out.

Set the junction box cover, strain relief plate, and

screw aside. They will be re-installed later.

Remove Screw

P
U

'Tt

k -

1:... .

■\^

'■Si!-''" ■ S

•fp'f ■dffT::::;::::;

(,i.i

Bit

1 ij

r :■

T:-i' 1, i

1 j

Figure 15
