Enclosure Preparation

Figure 2

ikWARNIN

I

Electrical Shock Hazard

To avoid electrical shock, make sure the water
supply and electrical supply are shut off before
installation or service.

ENCLOSURE PREPARATION

NOTE: This dishwasher is designed to be enciosed on the

top and both sides by standard residentiai kitchen
cabinetry.

Select a location as close to the sink as possible for
easy access to water supply and drain lines.

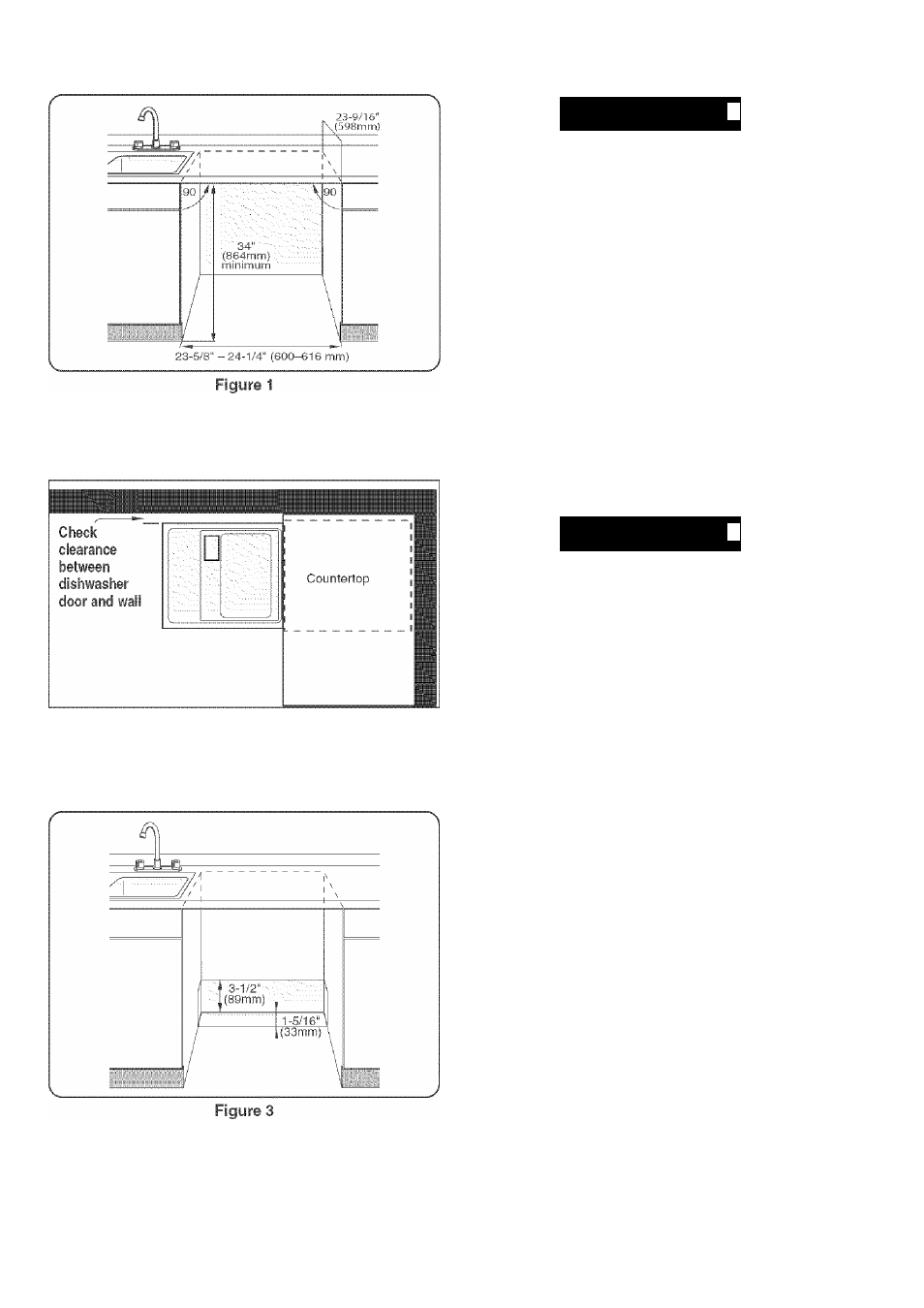

For proper dishwasher operation and appearance, ensure

that the enclosure is square and has the dimensions
shown in Figure 1.

If the dishwasher is to be installed in a corner, make sure

that there is adequate clearance to open the door. See

Figure 2.

ikWARNIN

I

Electrical Shock/Fire Hazard

To avoid electric shock or fire, do not allow the
electrical and water supply lines to touch.
Separate channels are provided under the
dishwasher (see page 10).

If the enclosure requires openings for the electrical supply

cable, hot water supply line, and dishwasher drain hose,

place them within the dimensions shown by the shaded

area of Figure 3 to avoid interference with the dishwasher
frame or other components. Make the openings for the

electrical supply cable and hot water supply line 1 ”
(25.4mm) diameter. Make the opening for the dishwasher

drain hose 1 -1/4” {32mm) diameter. If the openings are

made through wood, sand them smooth. If the openings

are made through metal, make them large enough to
accommodate grommets or other protective sheaths with

inside diameters of 1 ” (25.4mm) for the electrical supply

cable and the hot water supply line, and 1 -1 /4” (32mm) for
the dishwasher drain hose.
