Chapter 2 Cabling the CSS
Cabling the CSS 11503 and CSS 11506 Modules
2-18
Cisco 11500 Series Content Services Switch Hardware Installation Guide
78-13884-03
Session Accelerator Module LEDs
The Session Accelerator Module (SAM), model CSS5-SAM, is used with the
SCM to provide additional processing support for session setup. The SAM front
panel LEDs indicate its operational status. The SAM has no connectors.

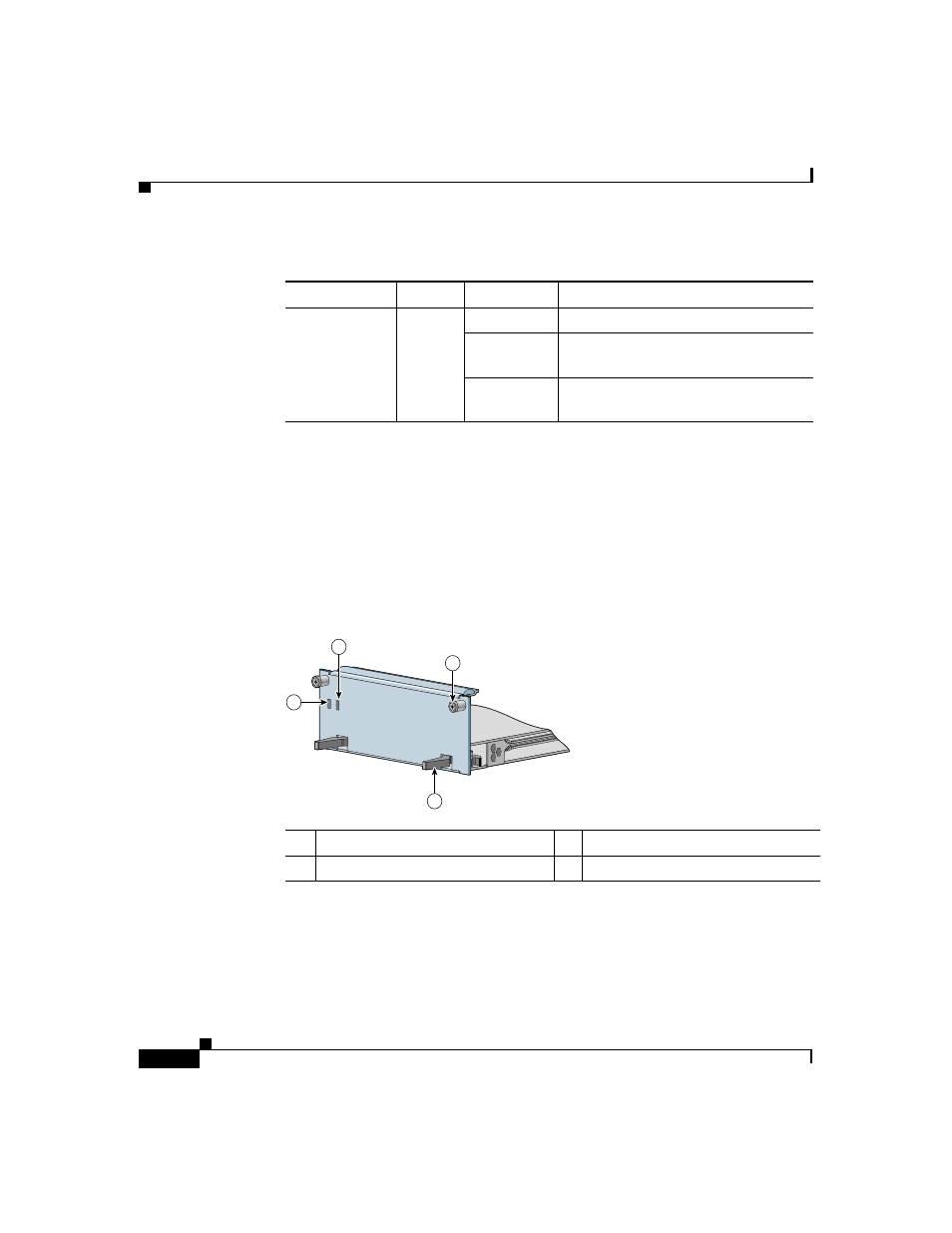

Figure 2-8 illustrates the SAM front panel LEDs.
Figure 2-8 Session Accelerator Module LEDs
Link Green Off There is no link.
On The link exists and synchronization is
achieved.
Blinking The link is established with transmit
or receive activity.
Table 2-4 Gigabit Ethernet Module LED Descriptions (continued)
LED Name Color State Indicates
1 Bicolor status LED (green and red) 3 Spring-loaded screw (one of two)
2 Amber status LED 4 Ejector (one of two)
59537
CSS5-SAM
Session Accelerator
STATUS
CSS5-SAM
Session Accelerator
STATUS 1
2
3
4
