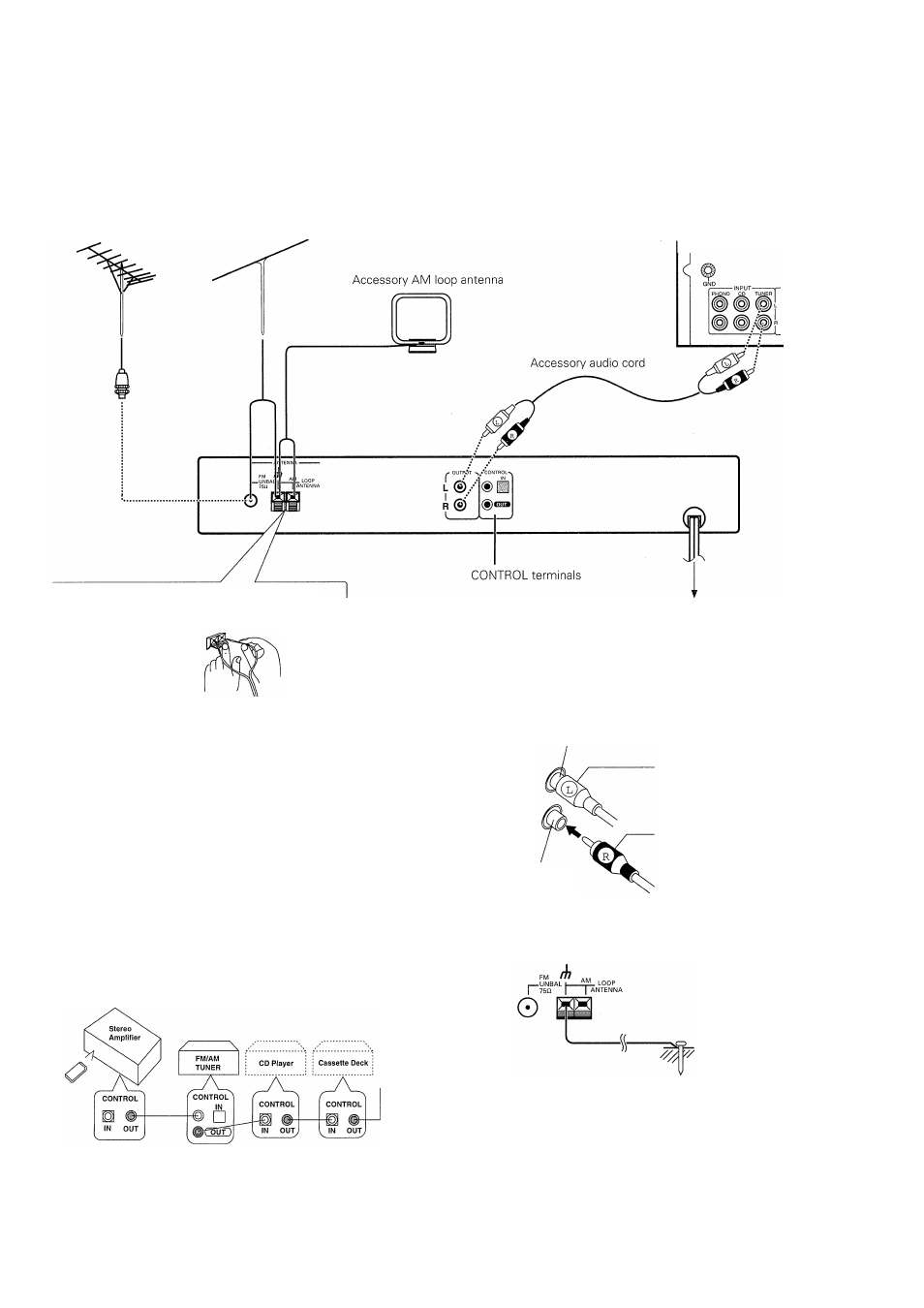

CONNECTIONS
Before making or changing the connections, switch off the power switch and disconnect the power cord from the AC outlet
Outdoor FM antenna Accessory FM T-type antenna Stereo amplifier
rr
Connecting the AM loop antenna
15 mmT
I
t
I
1. Strip and twist the ends of the wires.
2. With tabs beneath connector down, insert wires
from loop antenna.
3. Pull up tabs to close the connection.
Plug the power cord
into an ACwall socket.
Pin plug connecting cord
• Connect the white plug to the white terminal (L) and the red plug
to the red terminal (R).
• Make sure that the connections are secure.
Left channel
CONTROL terminals
When using together with a Pioneer component bearing the H
mark, connect the CONTROL IN terminal on the rear panel of the
tuner to the CONTROL OUT terminal on the component using the
supplied control cord. This will enable the tuner to be controlled
from a distance with the remote control unit supplied with the
component.
When this feature is not used, connection is not necessary.
• For instructions regarding connection and operation, please refer
to the operating instructions of your stereo component.
Right channel
Antenna ground
White plug
Red plug
NOTE:
The rh (signal earth) helps reduce noise when an antenna is
connected. It is not a safety earth.
CAUTION:
Never make the ground connection to a gas pipe as sparks can
cause the gas ignite.
