-EXAMPLE;FOR Rc TO R
h
JUMPER.
STRIP WIRE END LONG ENOUGH
TO JOIN BOTH TERMINALS.
FIG. 5-JUMPER "R^" AND "R„" TERMINALS FOR
COMMON
HEATING-COOLING
TRANS
FORMER IN Q539A1147.
Q538WTe7F
A
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD
PROTECTION AS REQUIRED.
A
LOW VOLTAGE EXTERNAL FAN SWITCH FOR CONTROL OF AUTO
FAN DURING HEATING.
u,™
A
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD
PROTECTION AS REQUIRED.

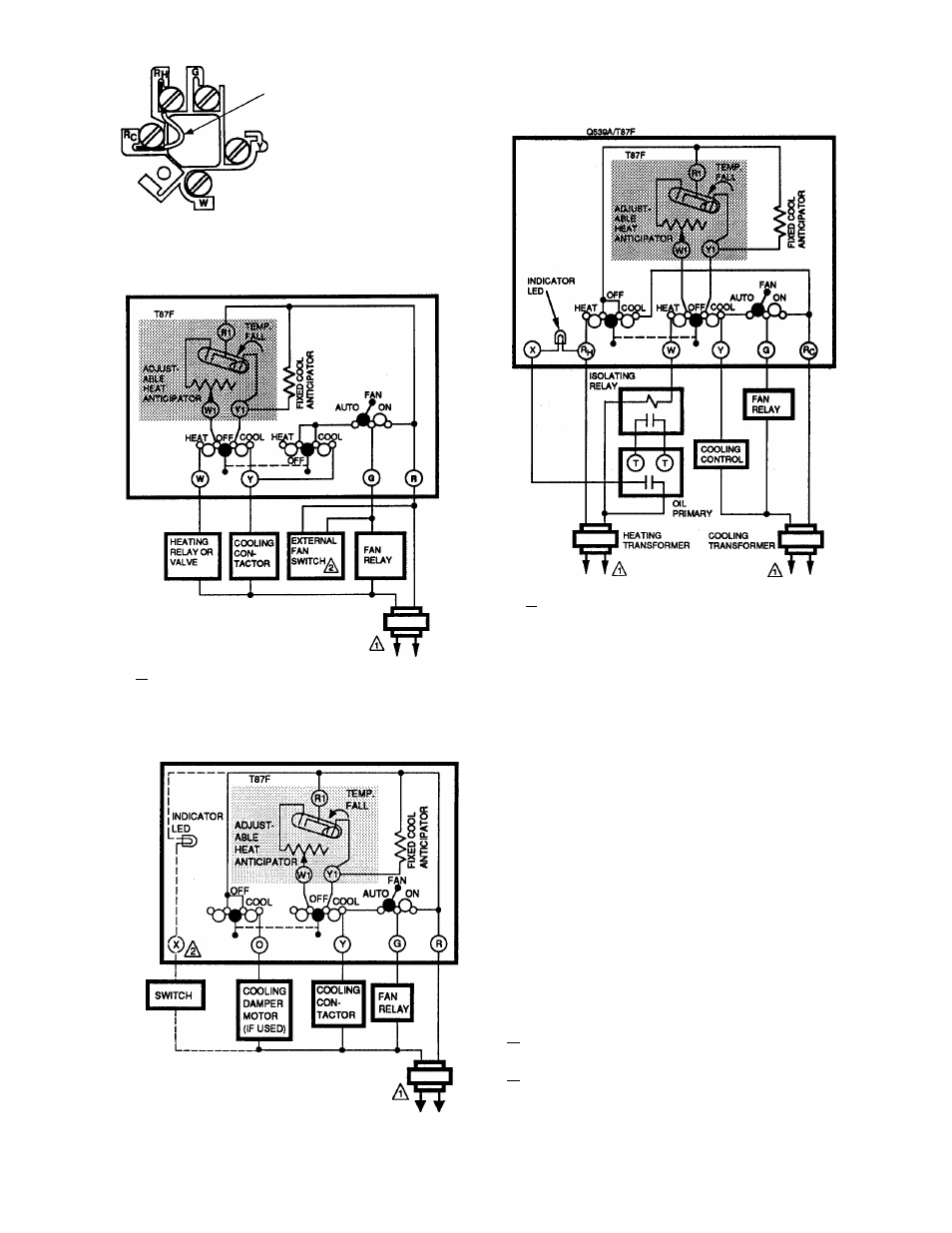

FIG. 6—Q539A IN TYPICAL HOOKUP.
FIG. 7—Q539A IN HEATING-COOLING APPLICATION
WITH INDICATOR LED.
a539A/T87F
A
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD
PROTECTION AS REQUIRED.
A
X TERMINAL USED ON 0539 MODELS WITH FACTORY-INSTALLED
INDICATOR LED.
.....
FIG. 8—Q539C IN COOLING-ONLY APPLICATION.
7
