INSTALLATION INSTRUCTIONS
Gather the required tools and parts before starting installation.
Read and follow the instruotions provided with any tools listed
here.
Flat-blade screwdriver
#2 Phillips screwdriver
Adjustable wrench that
opens to 1" (2,54 cm) or
hex-head socket wrench
(for adjusting dryer feet)
Wire stripper (for direct
wire installations)
Level
Vent clamps
Caulking gun and
compound (for installing
new exhaust vent)
Tin snips (new vent
installations)
V a " nut driver or socket
wrench (recommended)
Tape measure
Parts supplied
Remove parts package from dryer drum. Check that all parts are
included.
4 Leveling legs
NOTE: Do not use leveling legs if installing the dryer on a
pedestal.
Parts needed
Check local codes. Check existing electrical supply and venting.
See “Electrical Requirements” and “Venting Requirements”
before purchasing parts.
■ For close-clearance installations between 31.5" (80.01 cm)
and 37" (93.98 cm), see “Plan Vent System” section for
venting requirements.
Mobile home installations require metal exhaust system hardware
available for purchase from your local Sears store or Sears
Service Center. For further information, please call
1-800-4-MY-HOME® (1-800-469-4663).

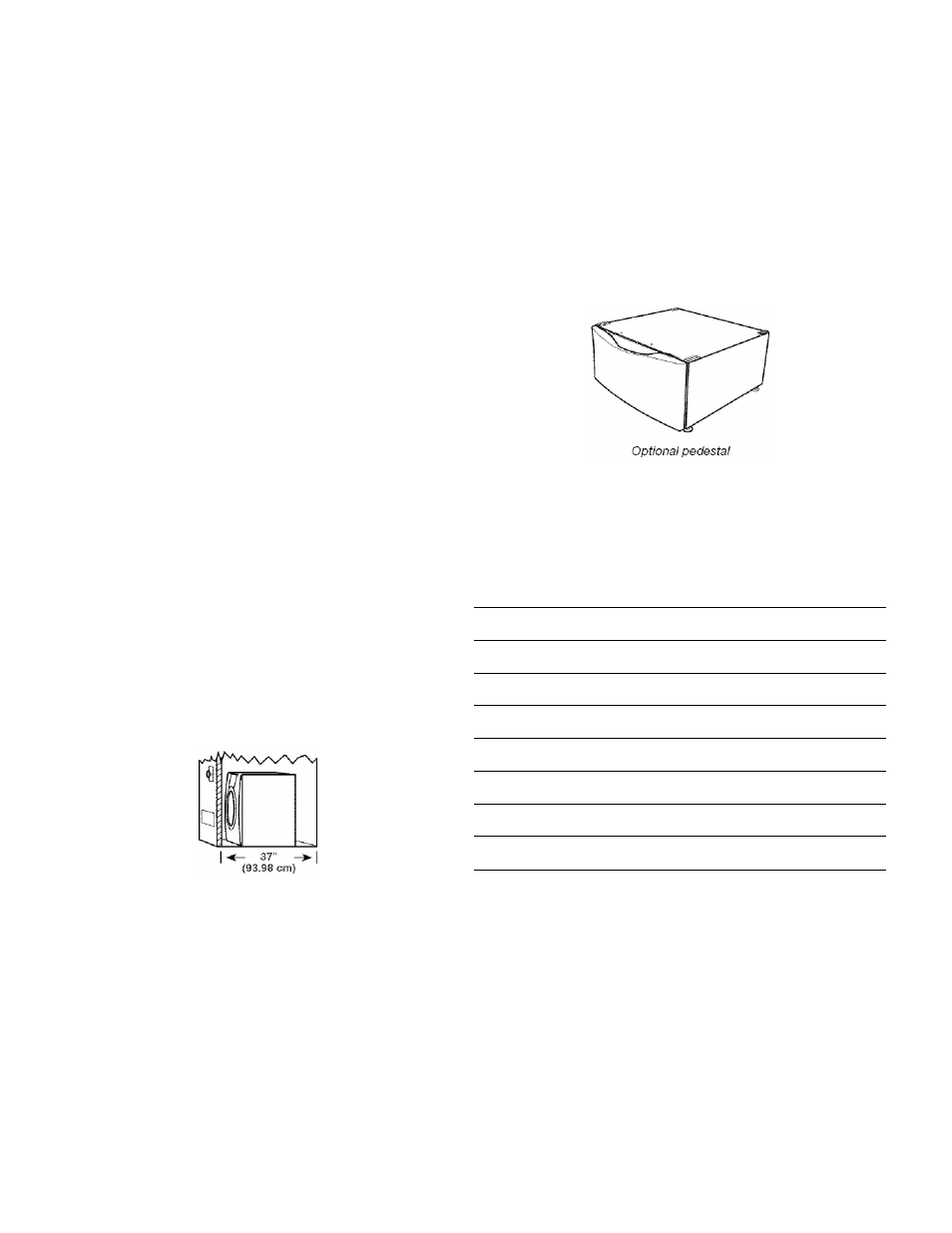

Are you placing the dryer on a pedestal? You have the option of
purchasing pedestals of different heights separately for this dryer.
You may select a 13" (33 cm) ora 15.5" (39.4 cm) pedestal. These
pedestals will add to the total height of the unit for a total height
of approximately 51" (129.5 cm) or 53" (134.6 cm).
For a garage installation, you will need to place the 13" (33 cm)
pedestal at least 6" (15.2 cm) above the floor. You will need to
place the 15.5" (39.4 cm) pedestal at least 3" (7.6 cm) above the
floor.
The pedestal (with storage drawer) is available in several colors.
To order, call your local Sears store. For further information,
please call 1-800-4-MY-HOME® (1-800-469-4663).
Pedestal
Height Color Part
Number
13" (33 cm) White 42842
13" (33 cm) Bisque 42844
13" (33 cm) Graphite 42846
15.5" (39.4 cm) White 55842
15.5" (39.4 cm) Bisque 55844
15.5" (39.4 cm) Graphite 55846
15.5" (39.4 cm) Pacific Blue 55847
15.5" (39.4 cm) Champagne 55848
15.5" (39.4 cm) Sedona 55849
