Door

instailatlonJnstrucM^

Wear gloves and use extreme CAUTION when
installing these handles. The rounded end of the
handles may be sharp.

IMPORTANT

otisuro propur installalion of liandlo.^., ploa?o roviow

these instructions and pictures thoroughly prior to
inslHlIinn Ihe handles.

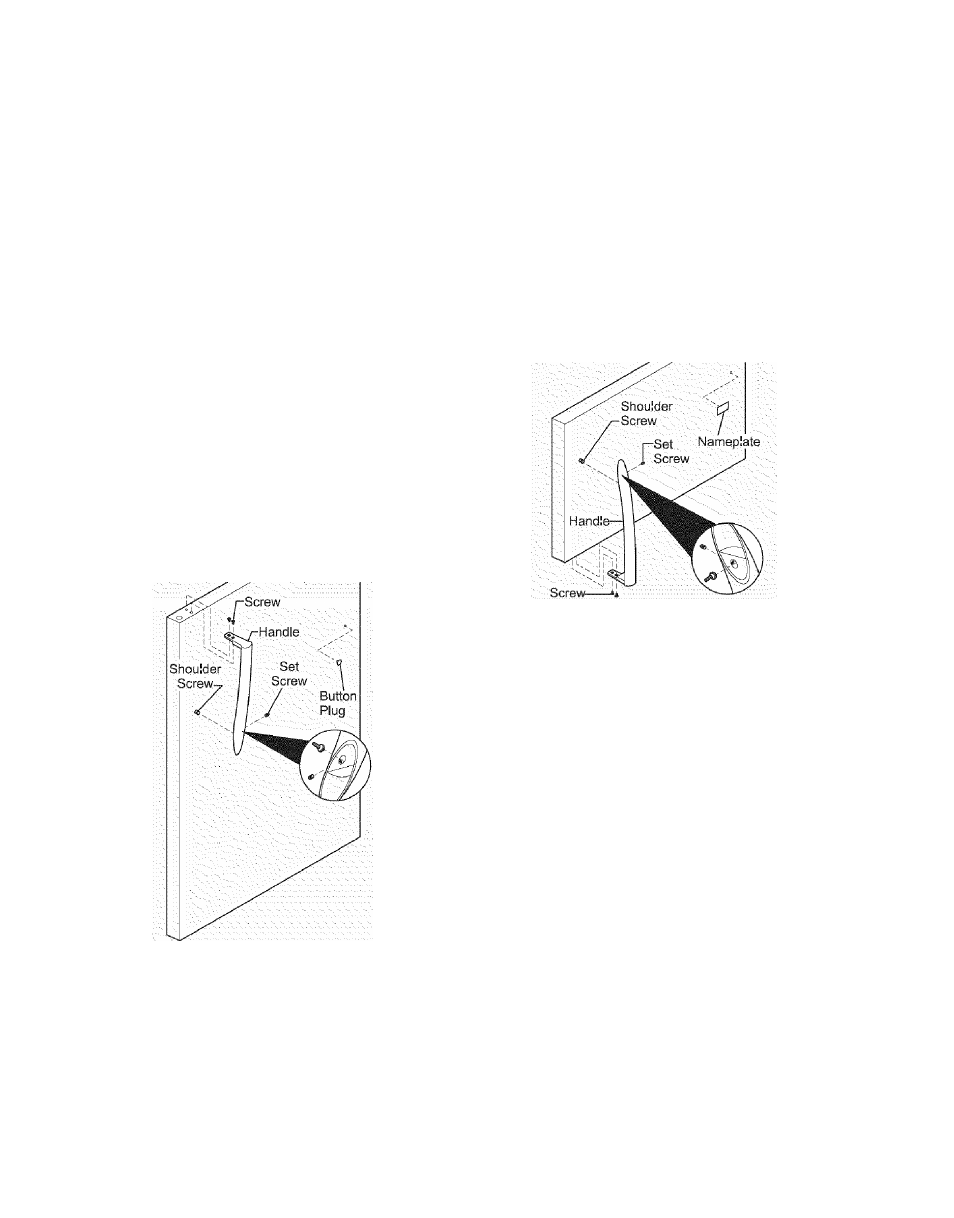

TO ATTACH REFRIGERATOR HANDLE:

. Place rounded part of handle onto shoulder screw on

face of door and align the

holes in top of handle with

the 2 holes in top of door.

Handle should be mounted

with set screw facing towards center of door. Do
not tighten the set screw yet.

2. Install the 2 screws into the top of the handle.
3. Tighten the set screw on the rounded part of the

handle until the handle is flush with the door, then
tighten another

1/2

turn.

TO ATTACH FREEZER HANDLE;

1. Place rounded part of handle onto shoulder screw on

face of door and align the

holes in bottom of handle

with the

holes in bottom of door.

Handle should be

mounted with set screw facing towards center of
door.Do not tighten the set screw yet.

. Install the

screws into the bottom of the handle.

3. Tighten the set screw on the rounded part of the

handle until the handle is flush with the door, then
tighten another

1/2

turn.
