SECTION 5 SERVICE TECH. INFORMATION
C. WATER FLOW THROUGH THE SOFTENER VALVE
FAST RINSE CYCLE
POSITION

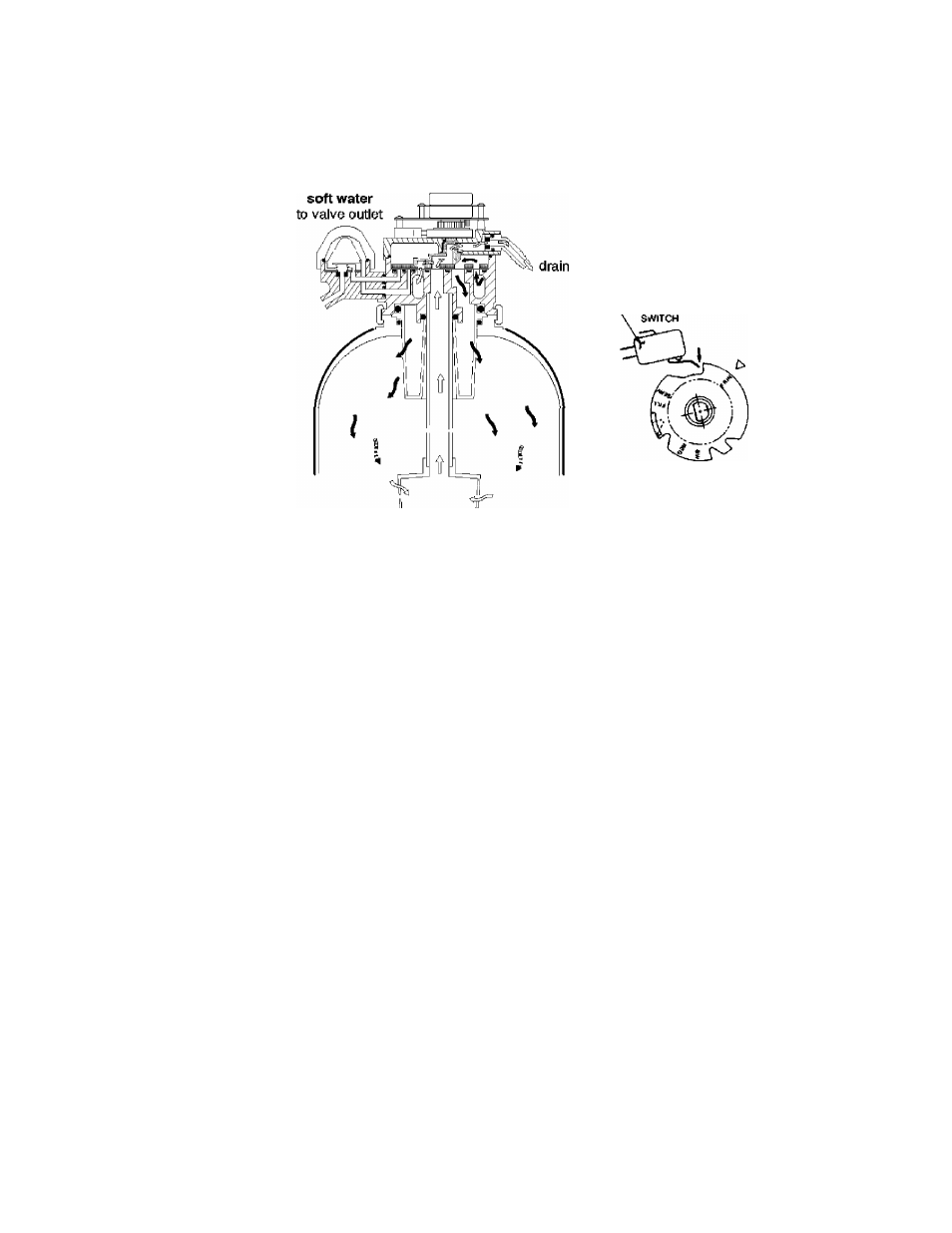

During FAST RINSE, the rotor & disc is positioned so water flow enters the resin tank through the top
distributor, and exits through the bottom distributor, to the drain.
The electronic timer again energizes the motor to return the valve to service. As the valve rotates, the
position switch lever drops to open the circuit. The valve remains positioned in service until the
electronic timer initiates the next regeneration.
