KNOW ABOUT YOUR WATER SOFTENER
A. DIMENSIONS / SPECIFICATIONS

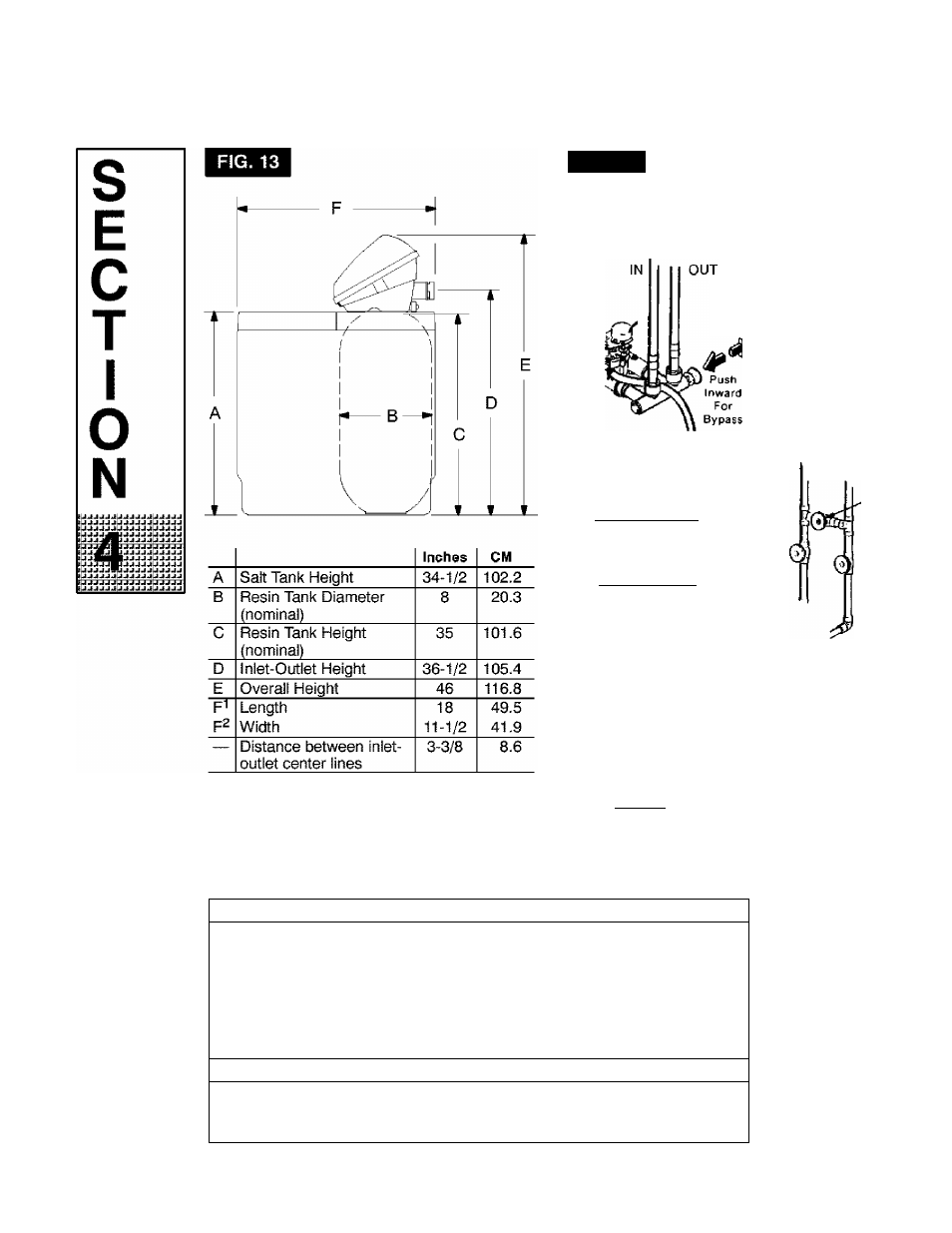

FIG. 14 BYPASS VALVES
Bypass valve(s) should always remain in soft
water service position. Position in "bypass" only
if needed for softener repairs.
SINGLE BYPASS
PULL STEM
OUTWARD
FOR
SERVICE
3 » VALVE BYPASS
FOR SERVICE
close bypass valve
open inlet & outlet valves
FOR BYPASS
open bypass valve
close inlet & outlet valves
OUT
Outlet
Valve
Bypass
Valve
Inlet
Valve
KENMORE C-20 TIMER SR CODE SR17
Note: Please see the rating decal for operating capacity, salt usage and service flow rate/pres sure loss
performance specifications. Performance specifications NSF/ANSI 44 standard requirements. The rating
decal is located on the rim, under the salt hole cover (see page A, inside front cover).
WATER SUPPLY TO WATER SOFTENER
Minimum water system flow (gpm)...................... - 3
Minimum-Max. water pressure (psi).................... - 2 0 - 1 2 5
Minimum-Max. water temperature (°F)................ - 4 0 - 1 2 0
Maximum water hardness (gpg).......................... - 41
Maximum “Clearwater" iron (ppm) ..................... - 5
SALT FOR WATER SOFTENER
Type of salt needed...............................................
Alternate type of salt.............................................
- nugget or pellet
- pure, evaporated, compacted
water softener salt
4 - 1
Problems, Questions? Call 1-800-426-9345 Kenmore Water Line
