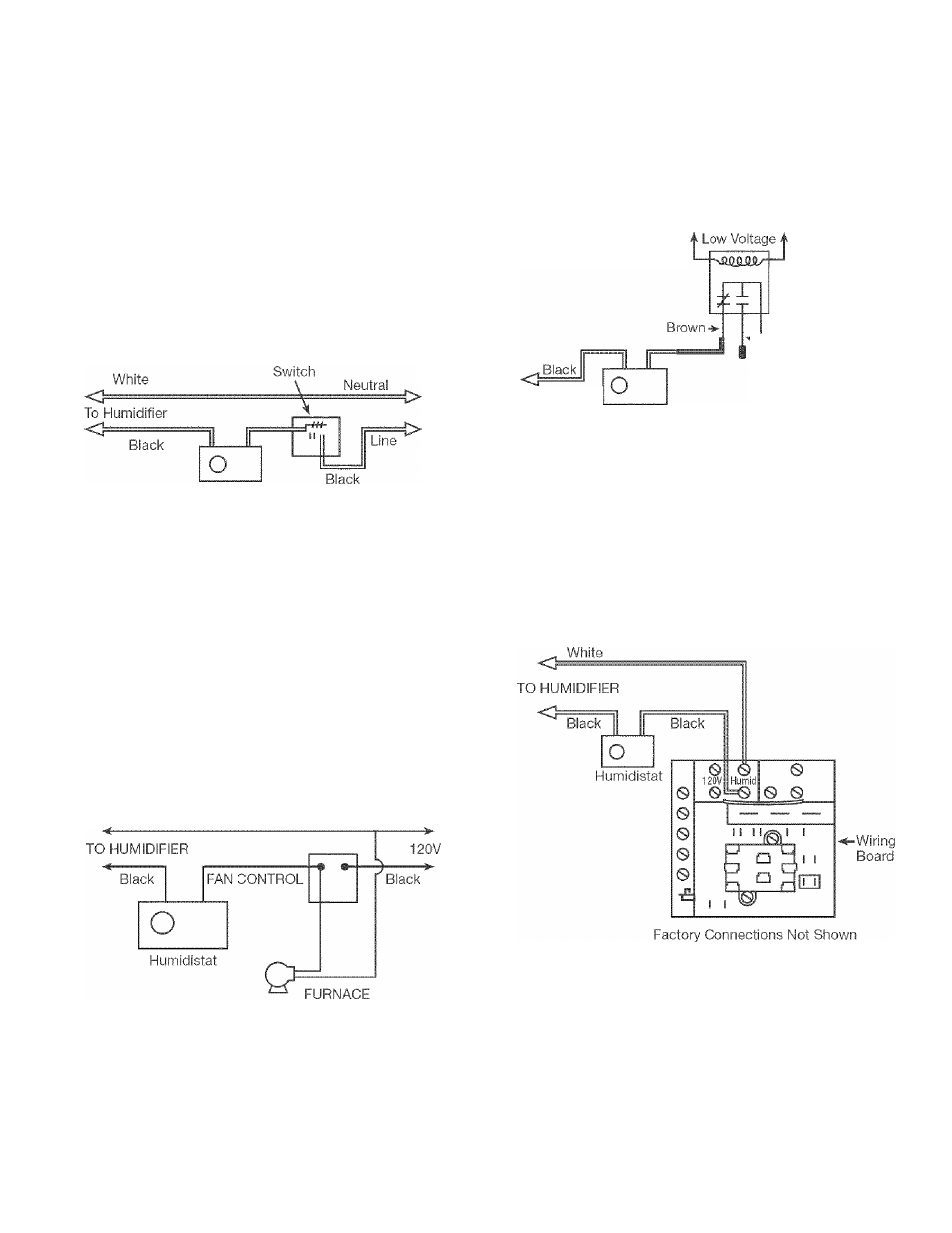

The alternate wiring methods are for your humidifier
to operate only when the furnace blower is on and
the humidistat is calling for humidity. The method you
select will depend on your furnace control system.

Find the type of system you have and follow that
method. Also, if the method selected requires a sail

switch or relay, this item must be purchased separately.

Alternate Method - 1

For ANY Forced Air Furnace

Humidifier runs only when furnace blower is running

and the humidistat calls for additional humidity. The
humidifier must be turned off manually during cooling
season (Fig.15).

ALTERNATE WIRING METHODS

Sail

120

Volt

Humidistat

Fig. 15

Install Sail Switch In Return Air Plenum (use normally

open contacts). Purchase this accessory separately
if needed. Available from Sears Product Services:

Phone: 1-800-366-7278 Specify Division 42 PLS 042
Part No. 9114

Alternate Method - 2

Any furnace with single speed, 120 ¥AC Blower

Humidifier runs only when furnace blower is running

and the humidistat calls for additional humidity, it’s not
necessary to turn humidifier OFF during the summer
(Fig. 16).

White

NEUTRAL

(White)

FAN MOTOR

Any furnace/air conditioning system with

multi-speed furnace blower

Humidifier runs only when furnace blower is running

and the humidistat calls for additional humidity.

Humidifier is automatically “off” during cooling season.

With the thermostat in the “FAN ON” position, the
humidifier will not operate (Fig. 17).

Alternate Method - 3

To “C” on
Transformer

Relay Panel

To “G” on
Transformer

Relay Panel

SPOT Relay
{Sears Stock

No. 42-9248)

Black T- ,

—► To Low

Heating
Speed

Motor Lead

TO

HUMIDIFIER

<3

Tape

Red

Wire

Humidistat

NEUTRAL 120 VOLT

White

o

Fig. 17

Alternate Method - 4

Sears “15” and “20” furnace with electrical
comfort center

Humidifier runs only when the furnace blower is run­
ning and the humidistat call for additional humidity.

The humidifier must be turned off manually during
the cooling season (Fig. 18).

Fig. 16

Fig. 18

NOTE: The humidifier and humidistat have a green
ground wire which must be connected to ground
(refer to Page 8, Step 8 of Humidistat).
