Installing The Grill Head

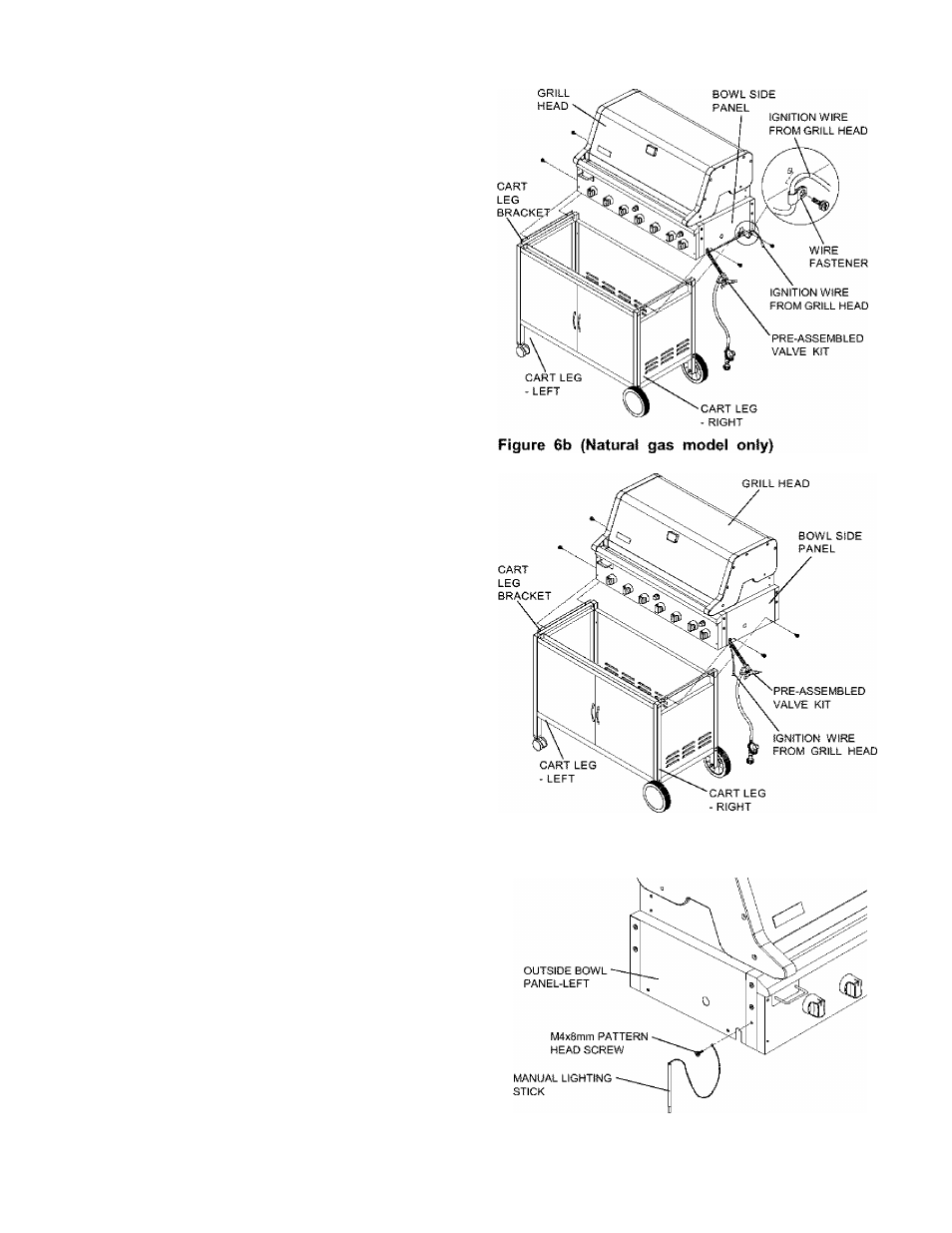

Figure 6a (LP gas model only)
1. Now that you've assembled the grill cart you
can install the pre-assembled Grill Head. See
Fig. 6a or 6b. If you haven't already done so,
we suggest you open the Grill Lid and remove
the packed components. Even with the compo
nents removed, this next step requires 2
people.
BE CAREFUL NOT TO PINCH FINGERS
WHEN LOWERING HEAD ONTO CART
2. For LP Gas grills:
With an assistant, lift and position the Grill
Head onto the grill cart. Place the
Pre-assembled Valve Kit through the slot in side
of Grill Head as illustrated in Fig. 6a. Align the
4 holes of the Bowl Side Panel to the
threaded holes on the Cart Leg Bracket.
Thread the Ignition Wire into the Wire Fastener.
Secure Wire Fastenerto Right Rear Bowl location on
Grill Head by using 1 of the 1/4"x1/2" Pattern Head
Screws. Finish securing Grill Head to Cart by using
3 of the 1/4"x1/2" Pattern Head Screws provided.
3. For Natural Gas grills:
With an assistant, lift and position the Grill
Head onto the grill cart. Place the
Pre-assembied Valve Kit and Ignition Wire
through the slot in side of Grill Head as illus
trated in Fig. 6b. Align the 4 holes of the
Bowl Side Panel to the threaded holes on the
Cart Leg Bracket. Secure firmly by using 4 of
the 1/4"x 1/2" Pattern Head Screws provided.
Installing Manual Lighting Stick
1. Attach the Manual Lighting Stick to the Left
Bowl Support Bracket as shown in Fig. 7.
Align the hole at the end of Manual Lighting
Stick Wire with the threaded hole on the Left
Bowl Support Bracket. Tighten securely using
the M4x8mm Pattern Head Screw.
Figure 7
