A
CAUTION
When using the regular hose or with
the extension hose attached, the
cleaner should be on a solid surface
on the same level or below the level
of the user’s feet. DO NOT use the
hoses when the cleaner is above the
level of the user’s feet.
EXTENSION HOSE:
SOME MODELS
Some models include an extra hose which
connects to the stretch hose on the vacuum
for a longer cleaning reach.
Unit Hose
4'
Extension Hose

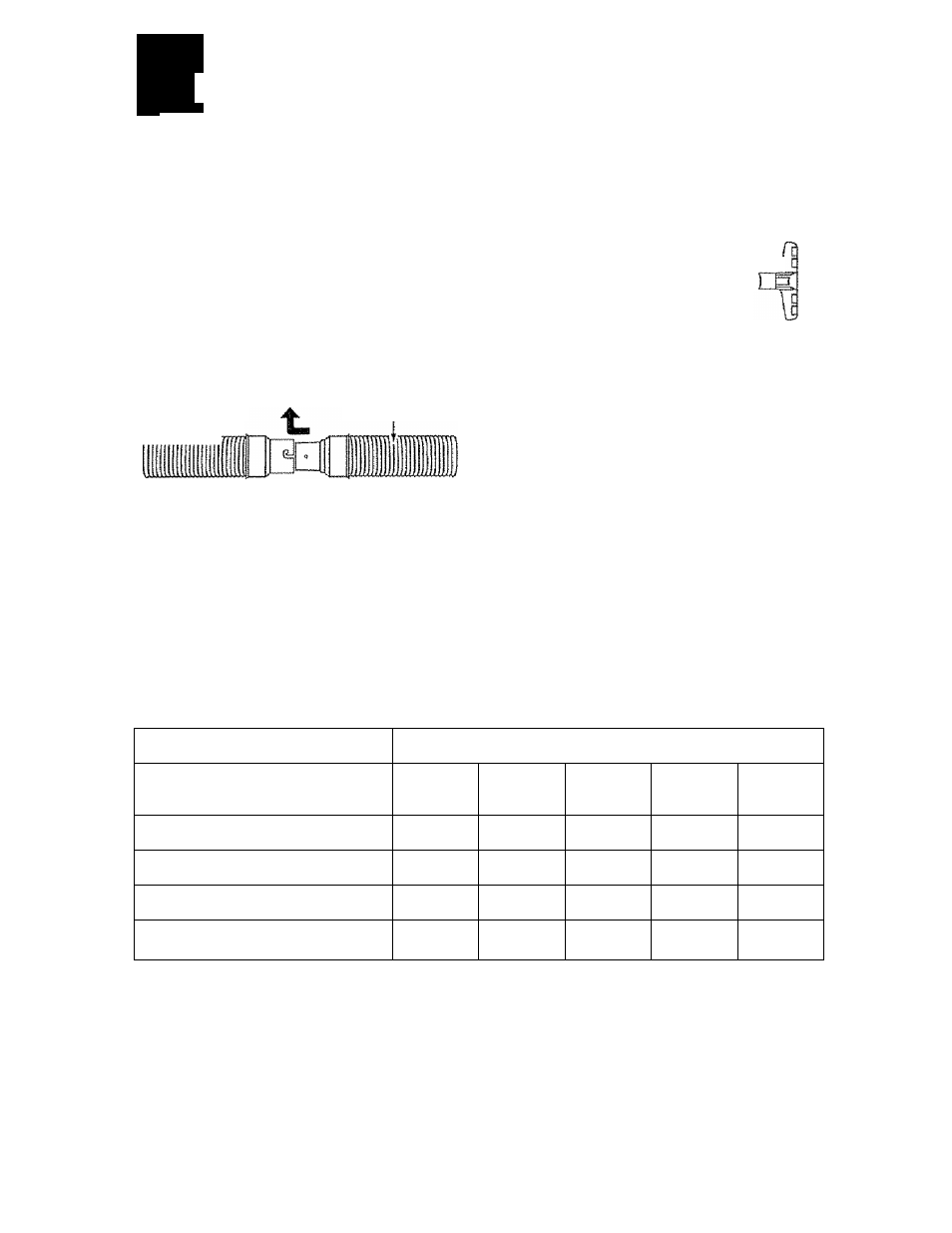

Insert the two tabs on the end of the
extension hose into the two “J” shaped slots
on the unit hose and twist to connect.
Ali attachments and the wand can be
attached to the open end of the hose.
FLOOR BRUSH AND WAND:
SOME MODELS
Some models have an extra brush and wand
for cleaning bare floors. Twist one end of the
adaptor into the floor brush and the other
end into the straight wand. Connect the
straight wand to the telescopic wand and
then to the vacuum hose or extension hose.
Floor Brush ----------
ZZZZDÖpC '
Adaptor J Wand
ATTACHMENT USE CHART
CLEANING AREA
ATTACHMENT
Furniture*
Between
Cushions* Drapes* Stairs Walls
DUSTING BRUSH
X X X X
CREVICE TOOL X X X
COMBINATION BRUSH
“IT
X X
HANDI-MATE™ JR. X X
The motor protector may open when using attachments or when cleaning new carpet due to
reduced air flow by the attachments themselves or by new carpet fuzz filling the bag quickly,
*Aiways clean attachments before using on fabrics.
