Installation Instructions

INSTALLING OPTIONS

COOKTOP INSTALLATION WITH

A GE OR GE MONOGRAM 30"

DOWNDRAFT VENT

The installation of the downdraft vent with this

cooktop requires careful consideration. Both the
cooktop and the vent must be installed according

to each specific installation instruction.

COOKTOP REQUIREMENTS

The countertop must have a deep flat surface to

accommodate the cooktop and vent. Countertops

with a rolled front edge and backsplash will not

provide the flat surface area required.

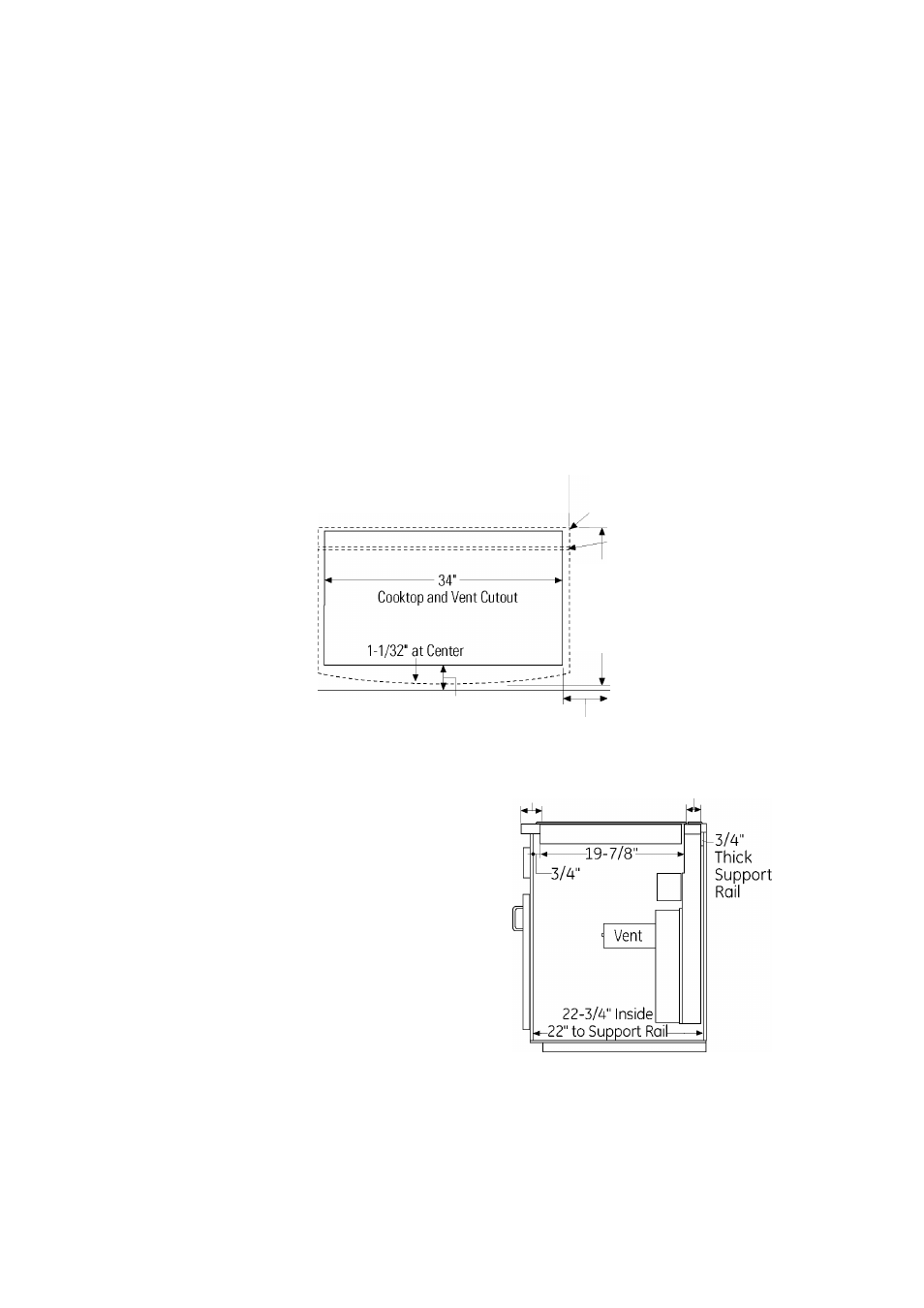

• Review the illustration to determine the countertop

surface requirements.

- All cutout clearances for this installation must

be observed.

1-3/4” Min. Cooktop Cutout to Rear

Vertical Combustible Surface

36-1/8” (SS)

36” (B,W)

T

21-3/4”

Cutout

Depth

2-3/4”

r

19-1/8”

Cooktop

Cutout

Depth

T

Front Edge

of Countertop

1/4” Overlap

1/8” Gap

2-1/2” Min.

Clearance to Cutout

23” (SS)

22-7/8” (B,W)

Total Flat

Surface

Required

2” Min. Cutout

to Side Walls

BASE CABINET REQUIREMENTS

The combined installation will fit in a standard

24" deep base cabinet. Use a 35" or wider base

cabinet.

- The vent housing, blower and ductwork will

occupy the base cabinet.

2-1/2"to

Cutout

1-7/8"
