CHANGING ACTIVATION SEHINGS

On the bottom of the Sensor housing, there is a small rectangular

plug which covers the ACTIVATION SETTINGS switches. Remove

the rectangular plug and adjust your settings according to the

following combinations:

OPERATE LAMP:

Night only

LAMP ON DURATION:

1 min "on"

Night only 24hr

24hr

< ( A * I I I I

A

‘ I I I I

4 f\

* I I I

10 mm on 1 mm on 10 mm on

TROUBLESHOOTING TIPS

Note: Allow the Sensor to reset for 10 minutes after trying the suggested

tips below.

PROBLEM: Light does not go on when there is motion in front of the Sensor.

SUGGESTIONS:

1. Confirm that alert light has power and the light switch is on.

2. Make sure bulb and Socket Adapter are screwed in properly.

3. Be sure the Socket Adapter cord is plugged into the jack on the bottom

of the Sensor housing.

4. Aim Sensor at a more focused activity area.

5. Replace bulb.

6. Check battery orientation in the Sensor or try replacing the 9-volt battery.

PROBLEM: Light does not go on during the day.

SUGGESTIONS:

1. See "CHANGING ACTIVATION SEHINGS."

PROBLEM: Lamp does not turn off.

SUGGESTIONS:

1. Confirm there is no motion in the detection zone.

2. Check battery orientation in the Sensor or try replacing the 9-Volt

battery.

3. See "CHANGING ACTIVATION SETTINGS".

IMPORTANT: This Motion Sensing Light Adapter is a sensitive electrical

product and the following precautions should be followed:

• Do not drop the unit.

• Do not place the unit close to a source of direct heat.

• Do not use rechargeable batteries.

• Use only Alkaline battery.

SPECIFICATIONS

Detection Range..................................................................................Up to 50' x 120°

Rated Voltage......................................................................AC110/120VAC, 50/60 Hz

Maximum Wattage........................................................ 150W Tungsten per socket

Battery................................................................................................ 9-Volt Alkaline

Sensor........................................................................Auto Shut-off-1 or 10 minutes

If you have questions or need further assistance, please call 1-800- GE LIGHT,

GE Home Electric Product, Inc., Nela Park, Cleveland, Ohio 44112

Motion-Sensing Adapter

Turns lights on when motion is detected

User's Manual

A

WARNING

Risk of electric shock

• Turn power off before inspection,

installation or removal

• Do not use in wet locations

Risk of fire

• Do not exceed electrical ratings

Risk of burn

• Allow lamp to cool before handling

c(^us

LISTED

Questions? Call 1-800-GE LIGHT

Made in China for

GE Home Electric Products, Inc.

Nela Park, Cleveland, OH 44112

Desc.:PIR612S-2M

Motion

ENCLOSED YOU WILL FIND

• Motion Sensor

• Mounting Bracket (attached)

• Socket Adapter with Cord

•Screws

TOOLS NEEDED

• Screwdriver

BAHERY NEEDED (not included)

• 9-Volt alkaline battery

BAHERY INSTALLATION

1. Remove battery cover from the bottom of the sensor.

2. Install one 9-Volt alkaline battery into the battery compartment. Be sure

the battery (+) and (-) terminals match (+) and (-) contacts on battery cap.

3. Replace battery cover.

Note: The 9-Volt battery supplies power to the sensor only, not the light itself.

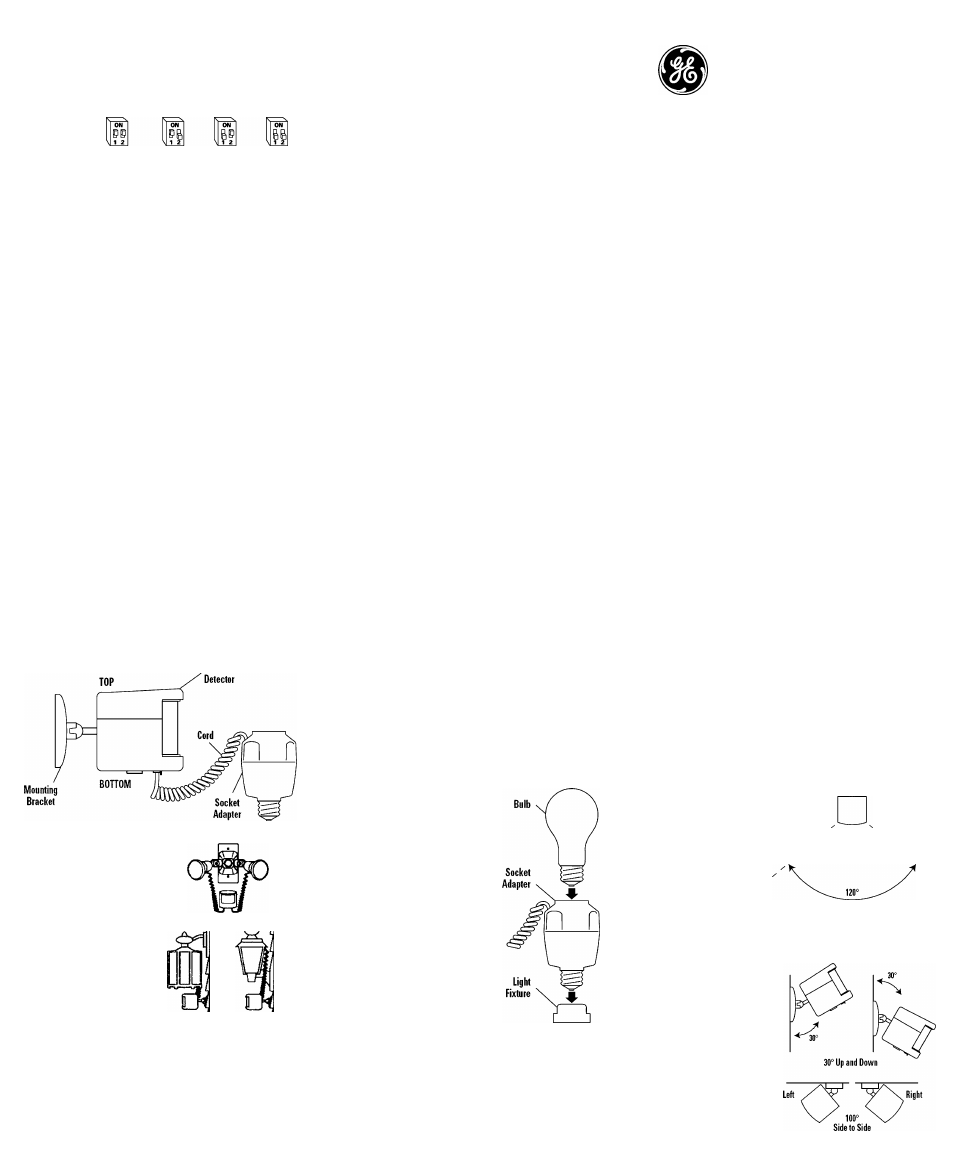

MOTION SENSOR INSTALLATION

1. Turn off power at light switch.

2. Allow sufficient time for the bulb to cool. Then remove the bulb

from the light socket.

3. Attach the Mounting Bracket to the wall or ceiling using the screws

provided. Make sure to mount the Motion Sensor

within 3-4 inches of the light fixture you want to

control (Alert Light).

For easier mounting: Unplug Socket

Adapter and/or move Sensor head to

allow better access to screw holes.

4. Screw the Socket Adapter into the

empty light socket and then screw

light bulb into Socket Adapter.

Note: Maximum bulb wattage

is 150W per socket.

5. If the Socket Adapter was

unplugged in Step 3, plug the phone-

type connector back into the jack

at the bottom of the Sensor housing.

6. Aim Sensor in the direction of activity

you wish to detect. The Sensor has

a wide detection angle, so precise

aiming is not critical.

Note: When aiming Sensor, avoid direct

exposure to automobile headlights, which might be interpreted as sunlight

and therefore prevent light from coming on.

7. Leave unattended for 10 minutes.

Note: No motion must be detected for at least 10 minutes to allow the

Sensor to set itself to a "ready" mode. Cover Motion Sensor if necessary.

8. After 10 minutes, turn on power switch to the light fixture. Wave your

hand in front of the Motion Sensor to activate. Light should turn on.

Note: Light will stay on for 1 or 10 minutes after all motion

has stopped. See below to

COVERAGE AREA

change activation settings.

DETECTION ZONE

Motion is detected in a 50' x 120°

range. The adjustable mounting

bracket can be angled within a

30° vertical detection zone and

100° horizontal detection zone.

Note: As with most motion

detection devices, pets may

activate the unit. Also

walking in a straight line

towards the Sensor may

reduce the operational range.

Walking across the

detection field provides

maximum operational range.

ACTIVATION SEHINGS

Sensor is factory set for

day/night operation and

for the light to stay on for

1 minute after no motion

is detected.

Top View

/

\

/

\

\

/

\

50‘

N

\

\

MOUNTING BRACKET

ADJUSTMENT
