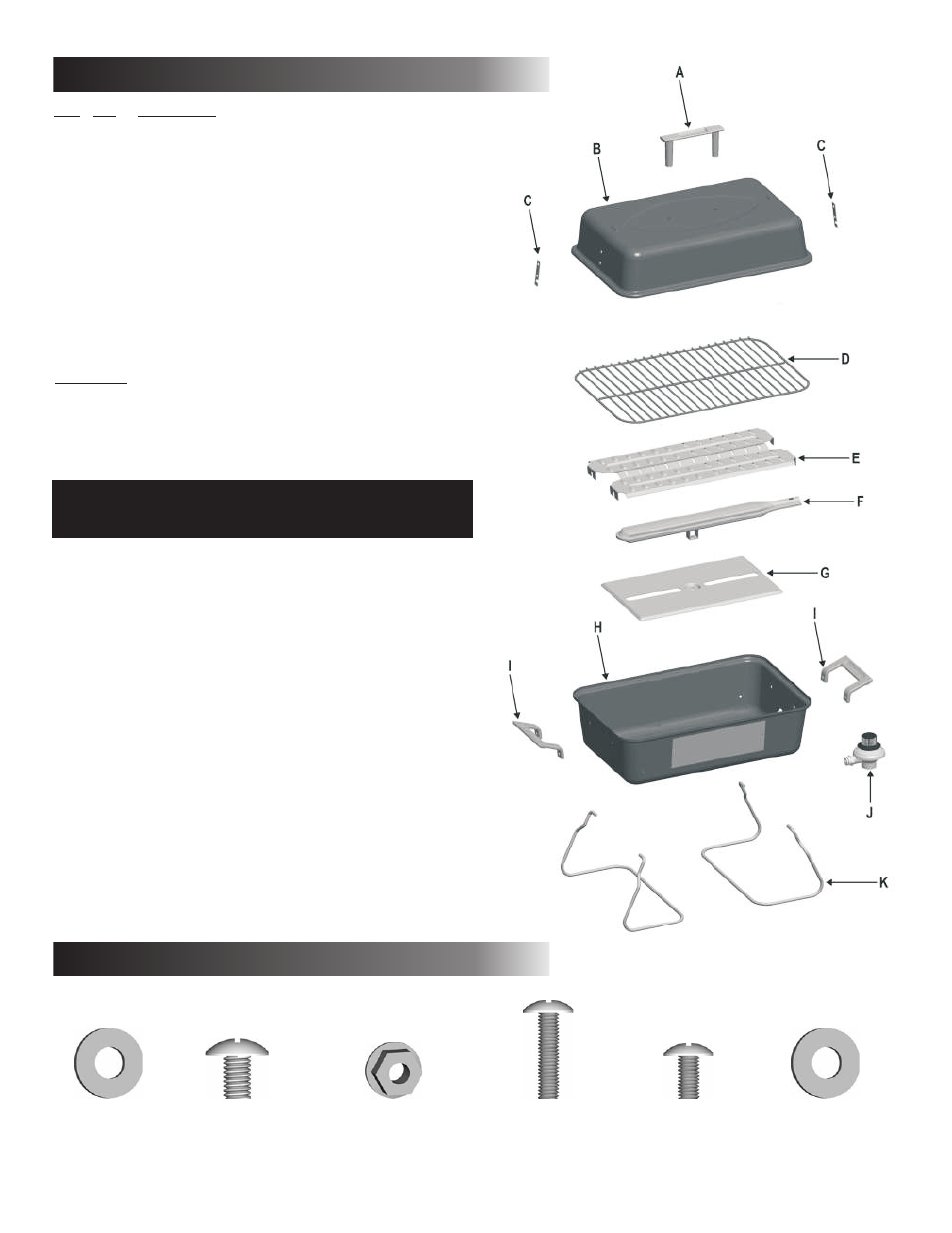

Key Qty Description
A 1 Lid Handle
B 1 Lid
C 2 Lid Support Bracket
D 1 Cooking Grate
E 1 Heat Distribution Plate
F 1 Burner
G 1 Heat Resistant Shield
H 1 Bottom
I 2 Side Handle
J 1 Regulator/Valve
K 2 Leg
Tools required for assembly:
Adjustable Wrench - Not provided
NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from
those on your particular grill model. However, the method of assembly remains the same.
(L)
Fiber Washer
Qty. 6
(M)
1/4-20 x 3/8” Screw
Qty. 3
(N)
#10-24 Flange Nut
Qty. 8
(O)
#10-24 x 3/4” Screw
Qty. 4
(P)
#10-24 x 3/8” Screw
Qty. 4
(Q)
1/4” Flat Washer
Qty. 2
Hardware is shown actual size.
Phillips screwdriver - Not provided
Parts List
Hardware
8
— 1 Hardware Pack
— 1 Assembly Instructions, English
Not Shown
