15
Wild Stick 120

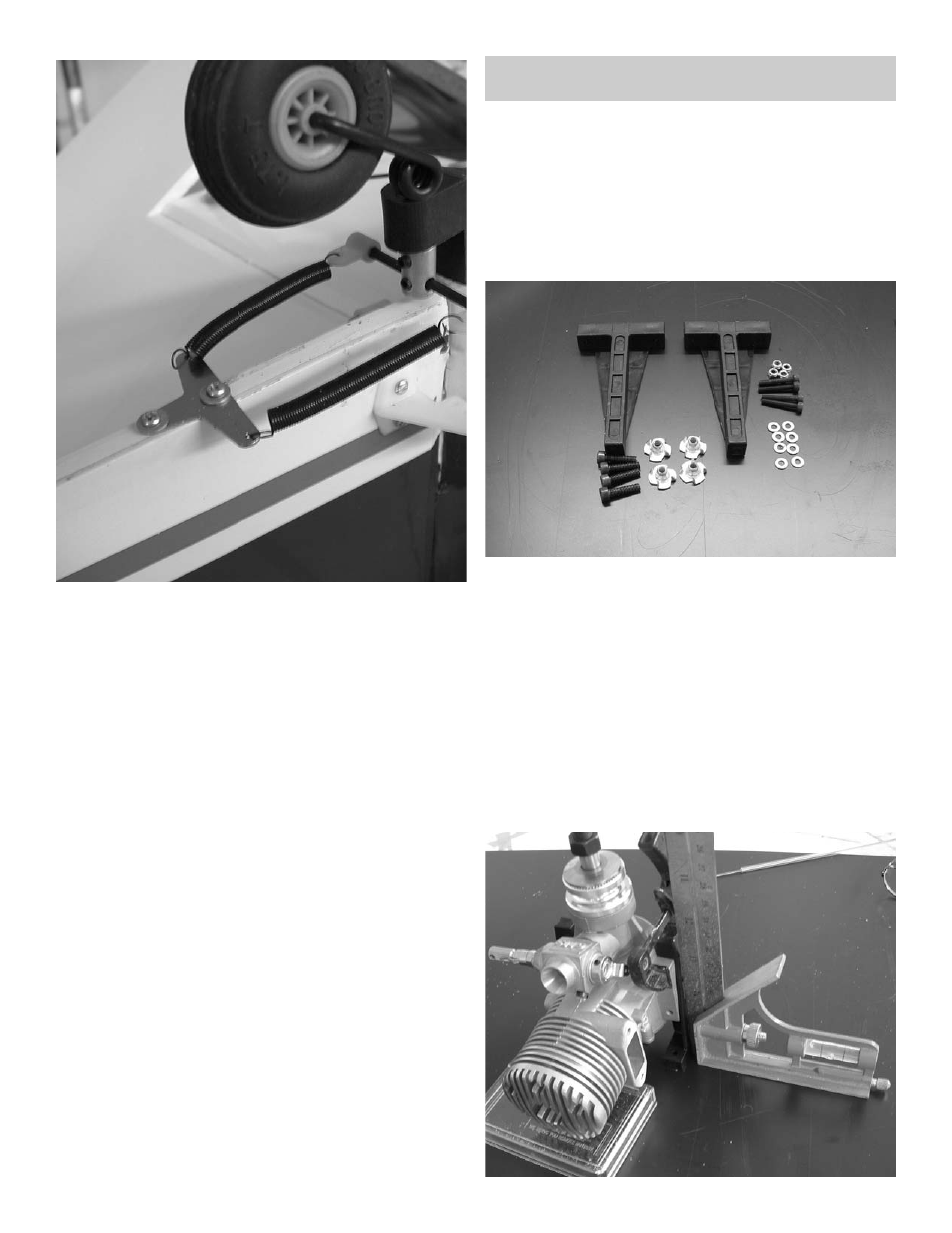

Engine Installation
locate the following parts:
1. Two motor mounts
2. Four 4mmx20mm screws
3. Four 4mm blind nuts
4. Four 4mmx25mm bolts
5. Four 4mm aircraft lock nuts.
6. 8 4mm flat washers
1. Clamp your engine to the two
motor mount making sure that both
sides of the mounts sit squarely on
the table. Make sure the engine is not
offset to the left or right in the
mount. Mark the location of the four
holes.
2. Drill four holes and mount the
engine using the four 4mm bolts and
aircraft lock nuts.
4. Attach the two springs to the
tiller on one end and the two nylon
horn brackets on the other. Pull the
bracket along the bottom of the rud-
der until the springs have a little
tension on them. Mount the bracket
at this point. Drill two holes with a
#54 drill and harden the holes with
thin CA. Mount the bracket with the
two 2mmx1mm screws and flat wash-
ers.
