28

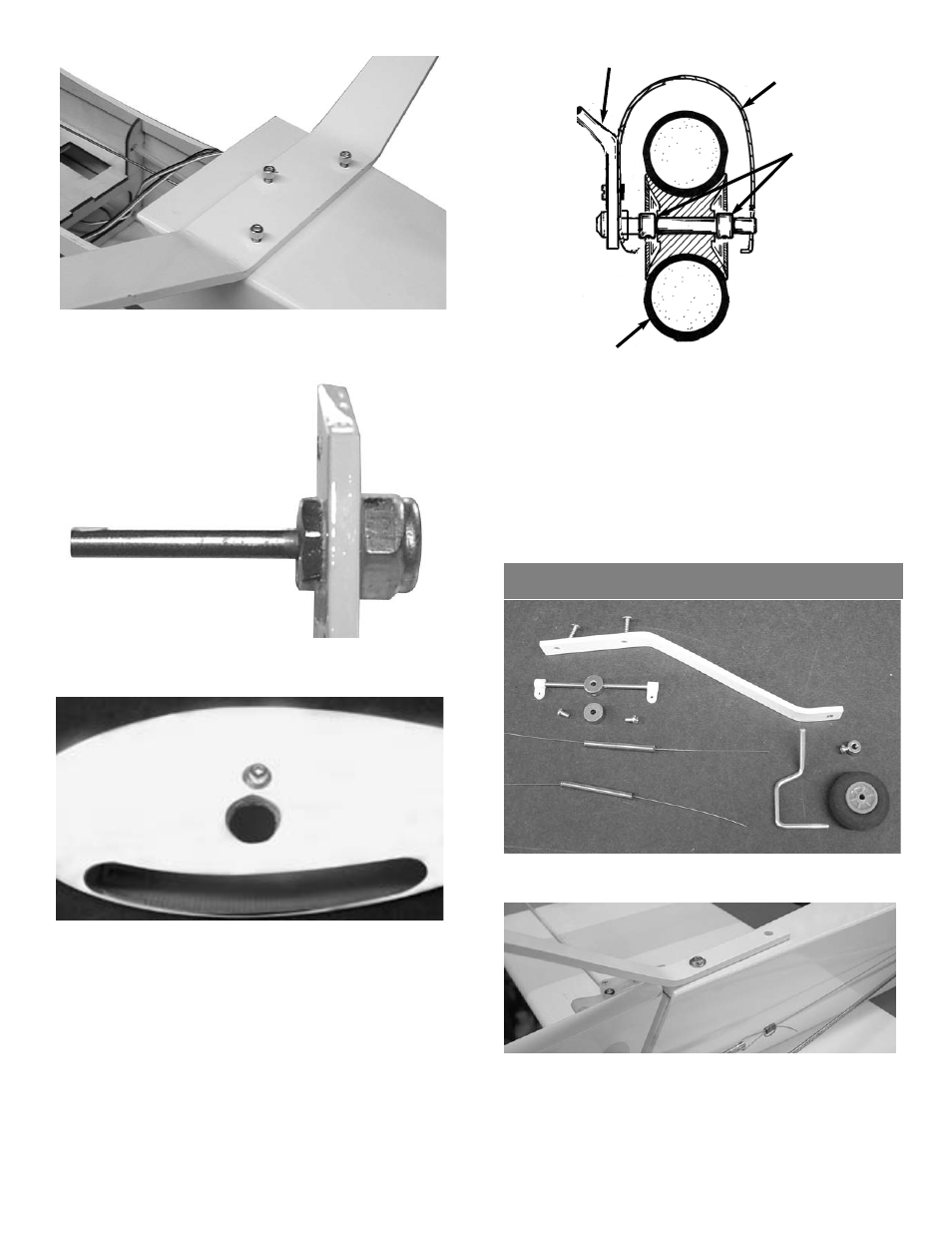

3.

Bolt the main gear in place using the 4mm x

25mm screws.

3. Mount the axle to the landing gears.

4.

Install the blind nut in the wheel pant using the

4-40 bolt to pull it into the hole.

Wheel Collars

Wheel Pant

Wheel

Landing Gear

5.

Mount the wheel pant on the landing gear

along with the wheel collars and wheels.

Center the wheel on the axle.

Use the 4-40 x 1/2” bolt to hold the wheel

pant to the gear.

Be sure to use thread lock on the bolts.

TAIL WHEEL INSTALLATION

1.

Tail wheel package includes mounting hard-

ware.

2.

Mount the bracket on the rear of the fuselage

using the #4 x 1/2” screws. Install only the

rear on first.
