24

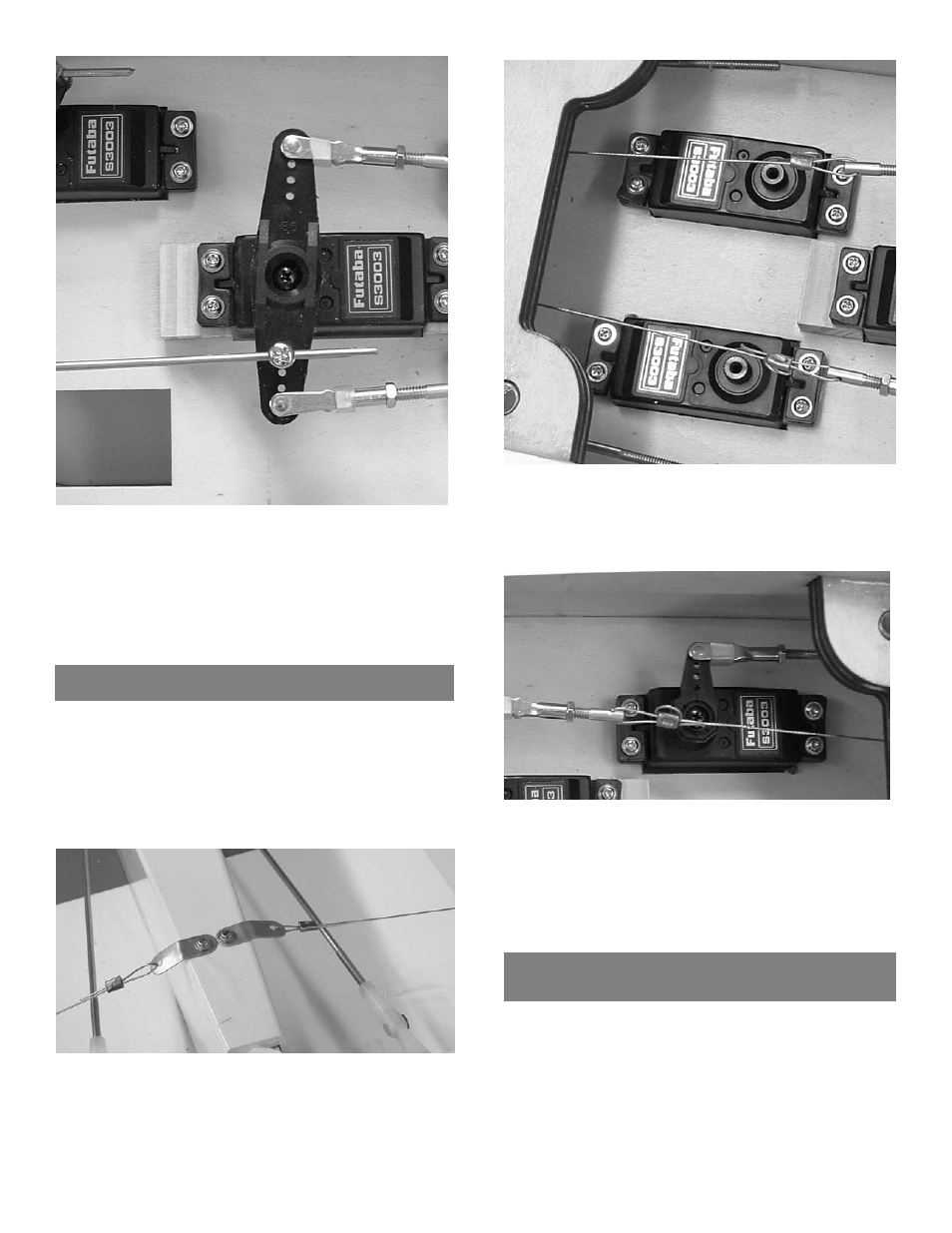

7. Attach the EZ connector to the inside hole
on the rudder arm.
Insert the nose gear steering pushrod in the
EZ connector and adjust. Tighten the set
screw on top.
Elevator Servo & Pushrod Installation
1. Collect the following items:
(2) 4-40 x 36” pushrods
(2) 4-40 metal clevis
(2) Silicone clevis keepers
(2) 4-40 jam nut s
2. Insert the two 4-40 pushrods into the nylon
tubes in the fuselage. Pull them out the rear
holes and screw into the elevator horn
brackets. They should screw all the way
into the clevis.
3. Mount the two elevator servos using the
hardware supplied with the radio. The output
arm should be forward.
4. Install the silicone clevis keeper on the cle-
vis. Screw a 4-40 nut on the pushrod then
the clevis. Attach the clevis to the servo arm.
Center the servo with the radio and adjust
the clevis till the elevator is neutral. Tighten
the jam nut against the clevis. Don’t forget
the arm retaining screw.
THROTTLE SERVO INSTALLATION
1. Collect the following items:
(1) 2-56 x 18” pushrod
(1) Nylon snap link
(1) EZ servo connector
