18
BOLTING ON THE WING
† Gather the following items
(1) Right & Left Wing Panels
(2) 1/4-20 x 2” Nylon Bolt
(1) Wing Tube

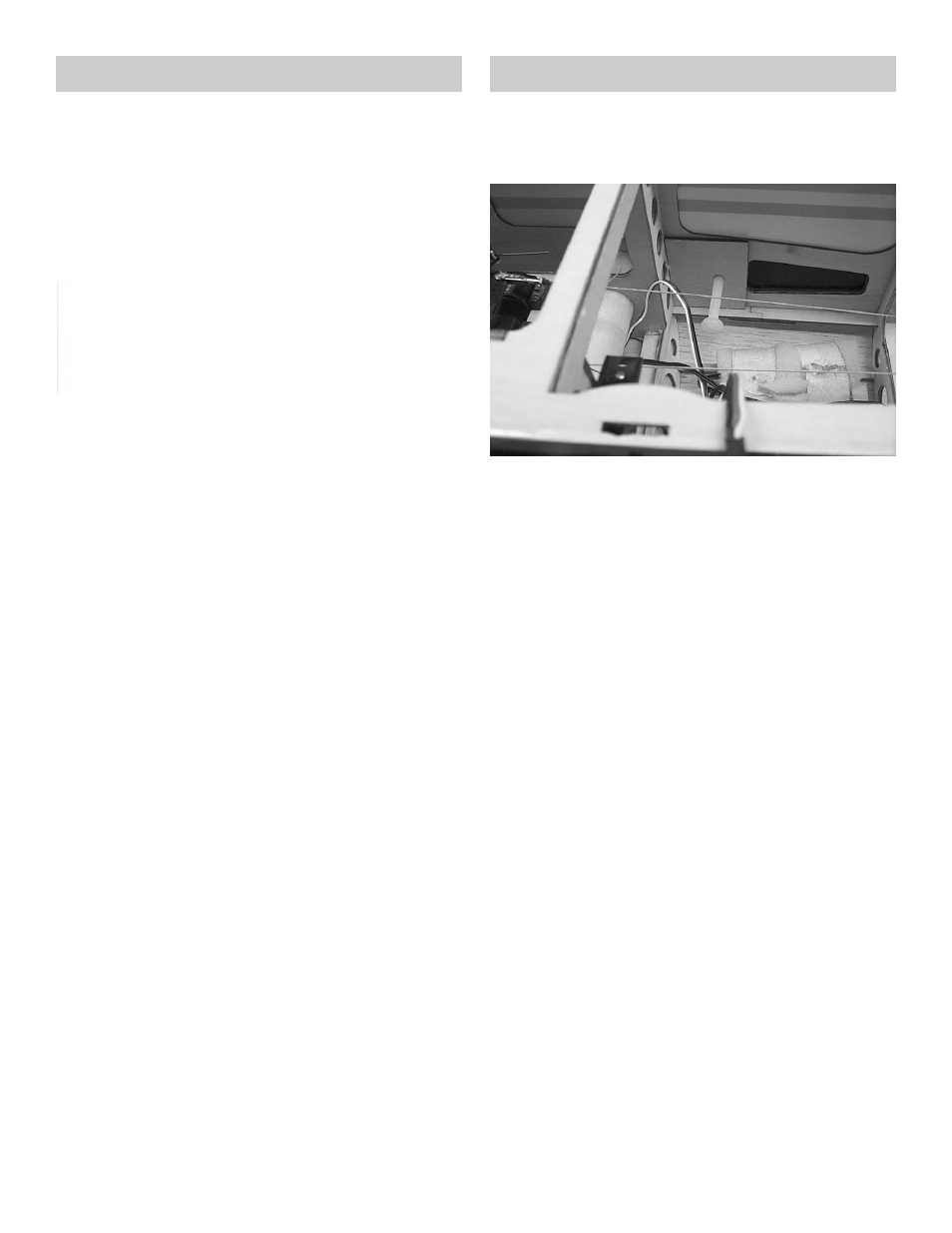

HATCH AND CANOPY
† Gather the following items
(1) Hatch
(4) 4-40 x 1/2 Socket Head Bolt
(4) #4 Washer
(1) Cockpit insert
(1) Canopy
† Fit the hatch under the cowl (tight fit) and slide
it forward till the front dowel slides into the
hole in the front former. If the dowel seems
tight then drill the hole in the former out bigger.
† Using the 4-40 x 1/2” bolts and washers,
mount the hatch to the top of the fuselage.
Use thread lock.
† Place the cockpit insert over the hatch check
for fit and glue in place.
† Put in place the canopy over the fuselage
hatch.
† Glue in place.
† Slide the wing tube into one of the wing
halves.
† Slide the tube thru the fuselage.
† Slide the second wing half onto the wing tube
comming out of the fuselage side.
† Push the two wing halves together till they ar
tight against the fuselage side.
† Bolt the wing to the fuselage using a 1/4-20
nylon bolt.
