Assembly InstructIons for
stAndArd And eP rAcks
9 Front Restraint Rail (EP only): With the batteries in
place, slide the front side support rail and cover up from its
resting location to its mounting location, aligning with rear
side restraint rail. Install hardware and torque to 15-20 ft.-lbs.
See Figure 8.
10 Final Assembly: Install corner brackets, end restraint rails,
and covers. Position end restraint rail against end battery unit.
See Detail 4. Note that the corner bracket may be reversed
by 180° if required. Install all front cross braces if indicated by
rack assembly drawing. Torque to 55-65 ft.-lbs. See Figure 9
for final rack assembly.
11 Battery Arrangement: Install inter-cell and inter-
unit connectors and cable assemblies as specified by
battery arrangement. Refer to Battery Installation Manual
(RS-1476) for more detail on battery connection and
initialization change.

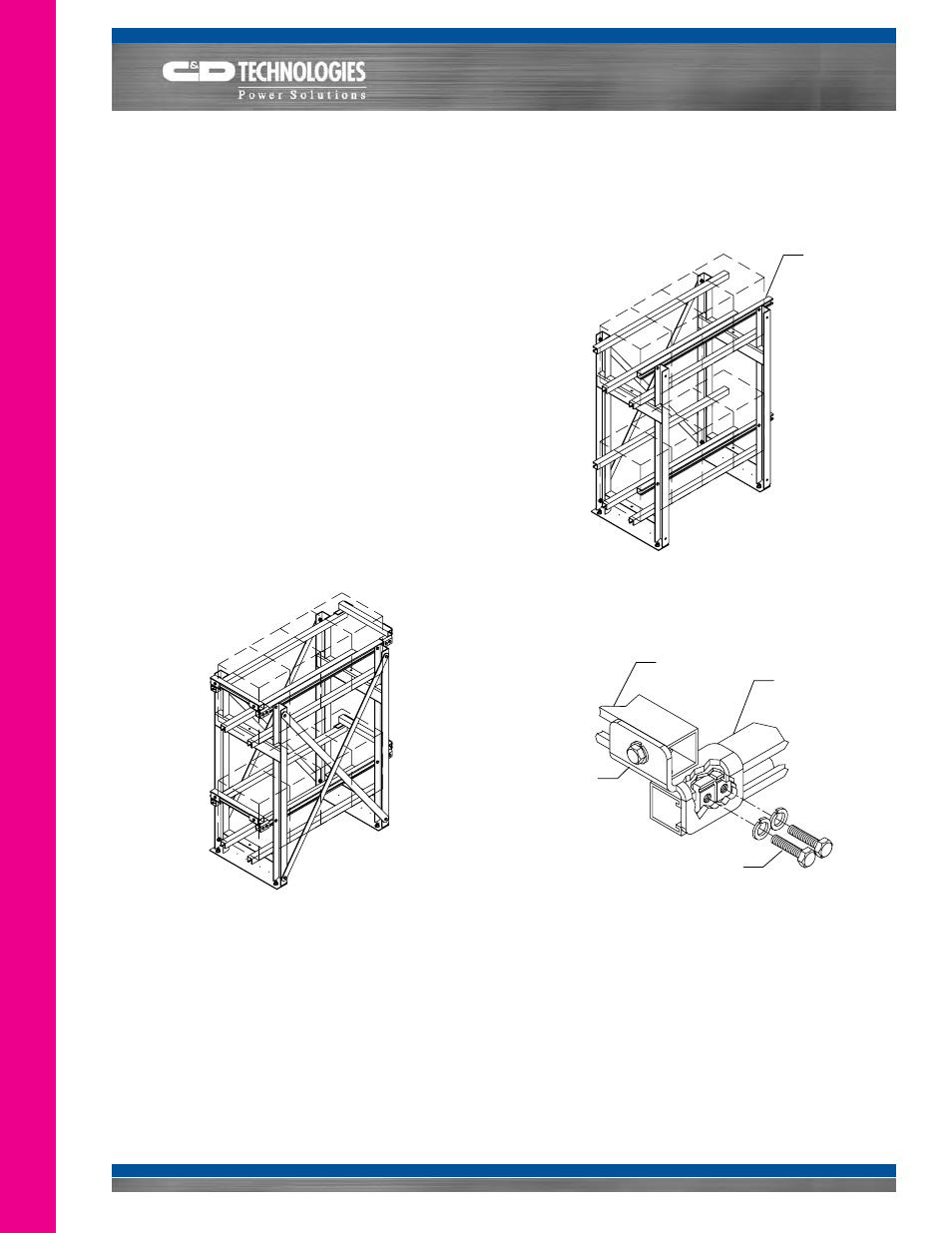

Figure 9. Assembled EP Rack,
With Front Cross Braces
Detail 4. End Restraint Rail(s)
and Corner Brackets
3/8-16 Hex Bolt, Lock
Washer and Serrated Nut
Side Restraint
Rail and Cover
End Restraint
Rail and Cover
Corner
Bracket
Figure 8. Installed Front Restraint Rail
Restraint Rails and
Cover (Installed)
