Fan Powered Humidifiers and Electronic Air Cleaners
Checkout Procedures
229050
24-volt Model
229051
120-volt Model
Voltage Range 21-24 VAC , 50-60 Hz 100-125 VAC, 50-60 Hz
Sensing Current Minimum 5 amps Minimum 5 amps
Operating Ambient Temperature Range 40˚F - 104˚F 40˚F - 104˚F
Load Ratings Maximum (12 watts) 0.50 amps
Minimum (3 watts) 0.12 amps
Maximum (130 watts) 1.5 amps
Minimum (3 watts) 0.03 amps
Technical Specifications
24-volt and 120-volt Current Sensing Relay
EAC
2 x 4
Electrical
Box
120 VAC

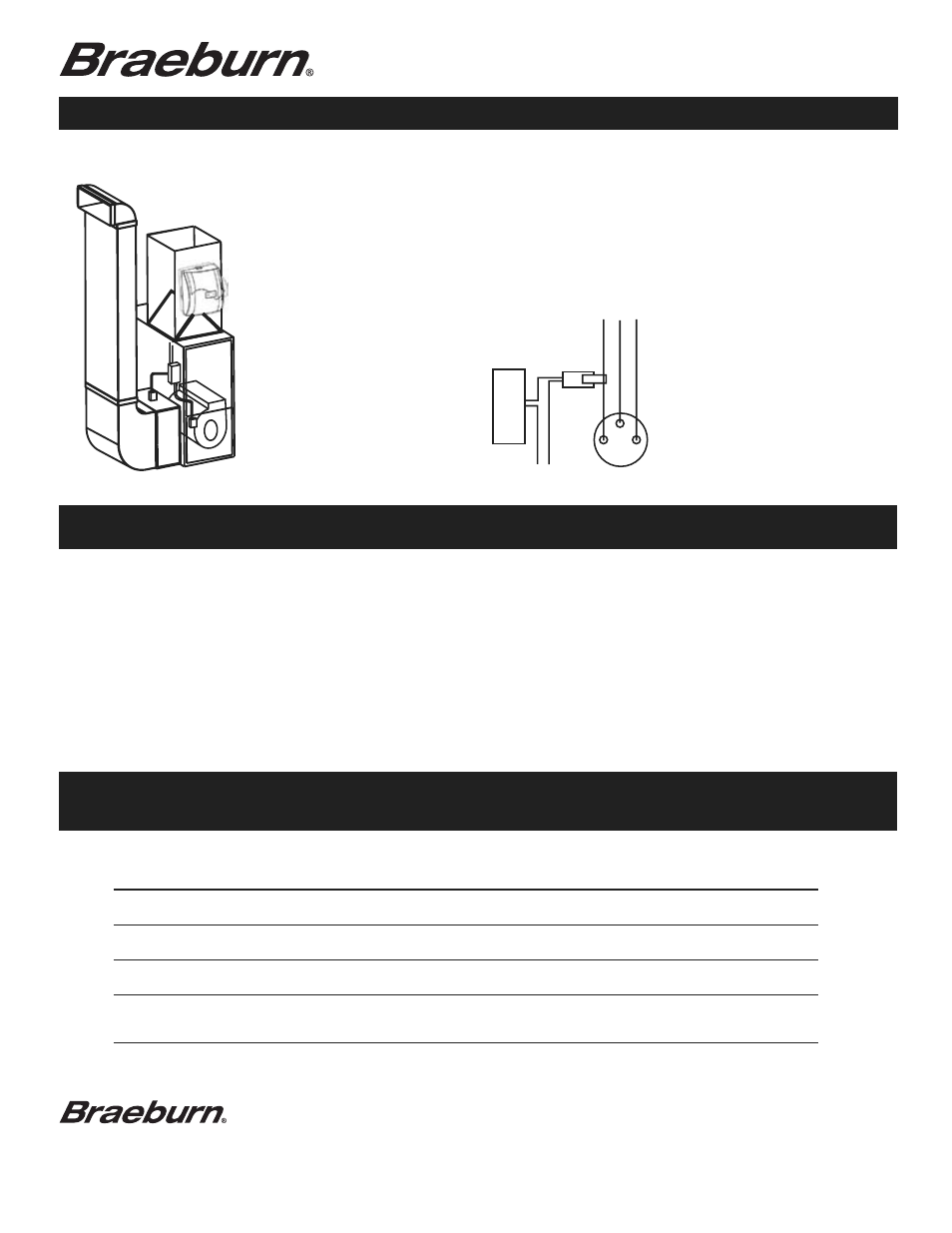

1. Install the Indoor Air Quality Accessory according
to the manufacturer’s instructions.
2. Install the 229051 on the common wire of the blower
motor as shown in the diagram .
3. Open the main power junction box on the side of
the furnace and run the leads of the 229051
into the junction box.
4. Connect the leads of the
229051 in series with one
of the Indoor Air Quality
device leads. Connect the
remaining lead and ground
wire. The 120 VAC source
must be independent of the
furnace blower motor.
5. Check all wire connections, close junction box
and restore furnace to working order. Test proper
functioning by observing that the air cleaner’s
indicator lamp turns on when the blower runs and
turns off when the blower stops.
229051
IAQ
DEVICE
1. Replace all safety devices.
2. Reconnect power to furnace.
3. Activate furnace blower motor.
4. Check load for operation. It should now be working properly. Check
indicating lamp or other conditions showing that the load is receiving
power.
5. Switch off the blower unit. The power to the device should shut off.
6. If the device is activated properly and turns off when the power
through the common wire is removed, installation is complete.
7. If the device is not powered when the blower is turned on:
• Ensure the device’s power switch is in the “ON” position.
• Recheck all wiring.
• Check line fuses.
• Confirm that five or more amps is flowing through the control wire.
Wrap additional turns around the bracket if necessary.
FURNACE
BLOWER
MOTOR
COMMON
LEAD
120 VAC
Model 229051 120 Volt Installation Instructions
©2009 Braeburn Systems LLC • All Rights Reserved • 22905-100-001
Braeburn Systems LLC
2215 Cornell Avenue • Montgomery, IL 60538
Technical Assistance: www.braeburnonline.com
Call us toll-free: 866-268-5599 (U.S.)
630-844-1968 (Outside the U.S.)
CURRENT
SENSING
RELAY
229050 (24-volt) and 229051 (120-volt) Current Sensing Relays
